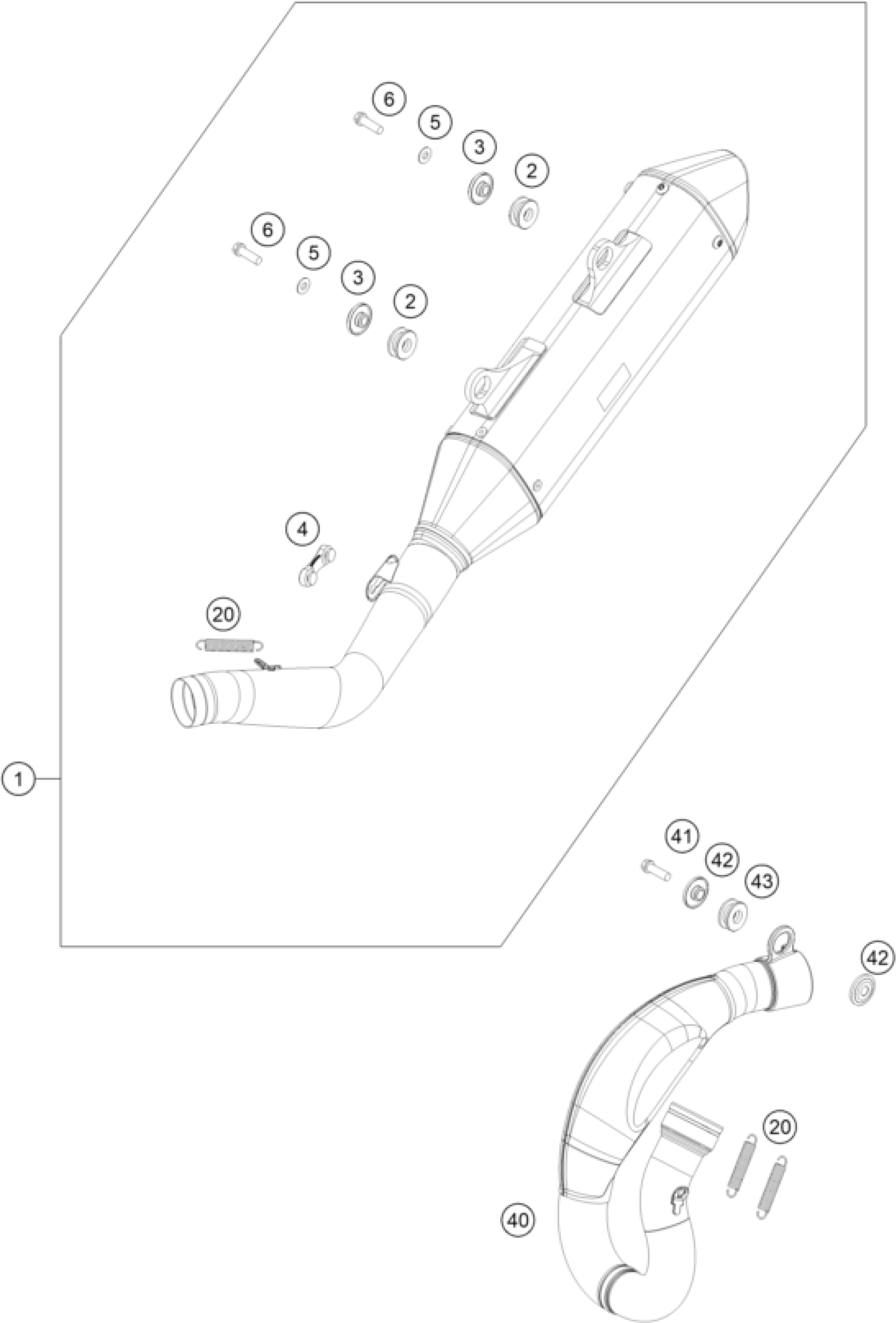

KTM 450 SX-F FACTORY EDITION 2022 EXHAUST SYSTEM Diagram

#

Description

Price

1

Muffler 250 SXF USA VMT

A46005179033

Unavailable

2

DAMP. COMPON. BLACK

77205068000

Unavailable

3

BUSHING 7.5x12x28x8.3 11

77205169000

Unavailable

4

exhaust spacer

79105098000

Unavailable

20

Tension spring L=65 mm

50305016200

Unavailable

40

Header KTM 450 SXF

A48005007033

Unavailable

41

HH collar screw M8x25

0025080256

Unavailable

42

BUSHING 8.5x12x28x8.3

77805069000

Unavailable

43

Damper gray

79105068000

Unavailable

5

Pair of washers M6 NORDLOCK

50233041000

Unavailable

6

HH collar screw M6x30 TX30

0025060306

Unavailable
