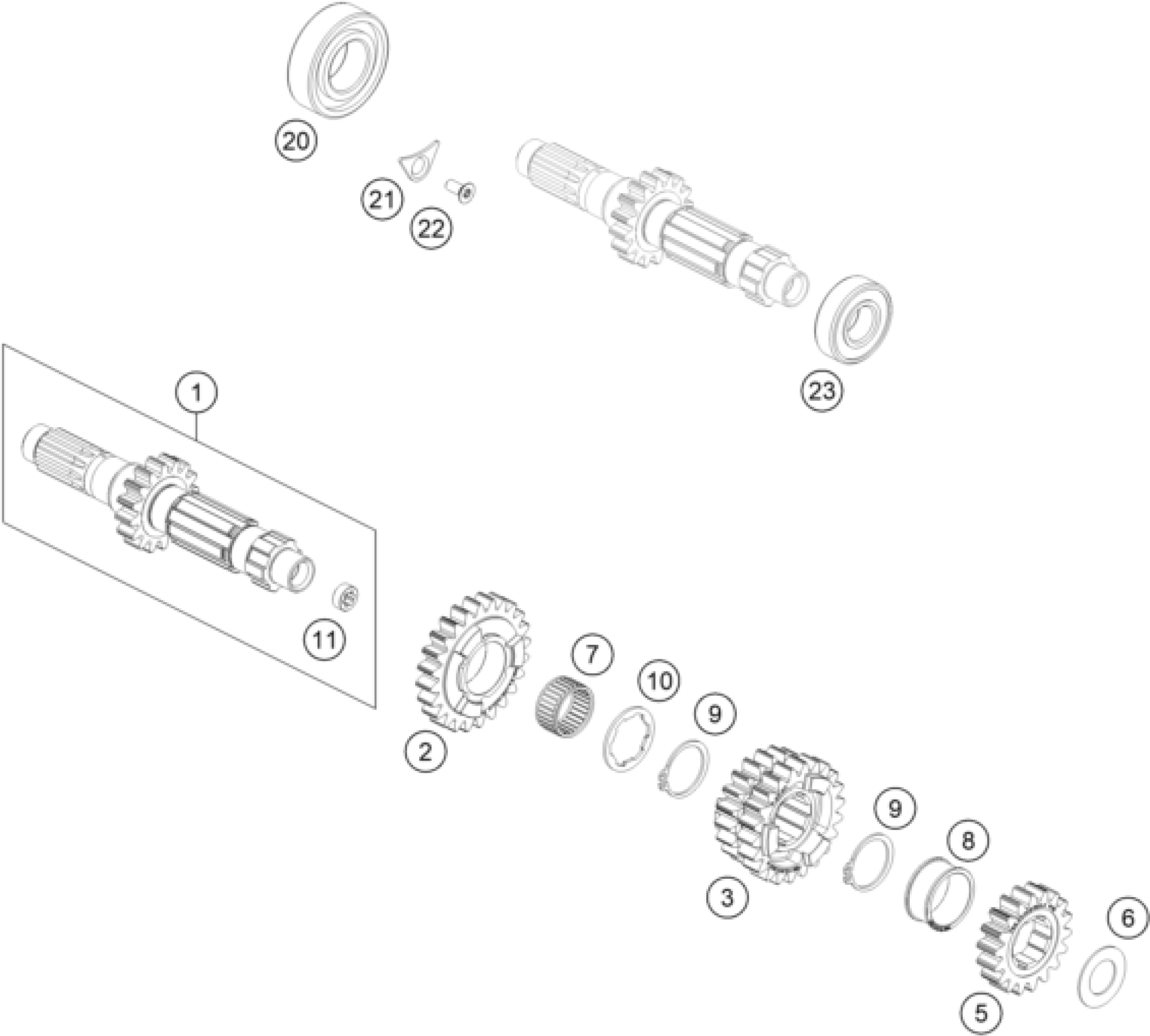

KTM 450 SX-F FACTORY EDITION 2021 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

input shaft

79533001000

Unavailable

2

idler gear 5 th.

79533005000

Unavailable

3

sliding gear 3./4.

79533003000

Unavailable

5

fixed gear 2 nd.

79533002000

Unavailable

6

STOP DISC 17,2X30X1

56033030000

Unavailable

7

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

8

Spacer

79533032000

Unavailable

9

CIRCLIP SW25

0417025000

Unavailable

10

thrust wahser

79533034000

Unavailable

11

BUSHING

78033001110

Unavailable

20

Groove ball bearing 6205 C4 NT

0625062056

Unavailable

21

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

22

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

23

BALL BEARING 6203 RSH C3

0625062036

Unavailable
