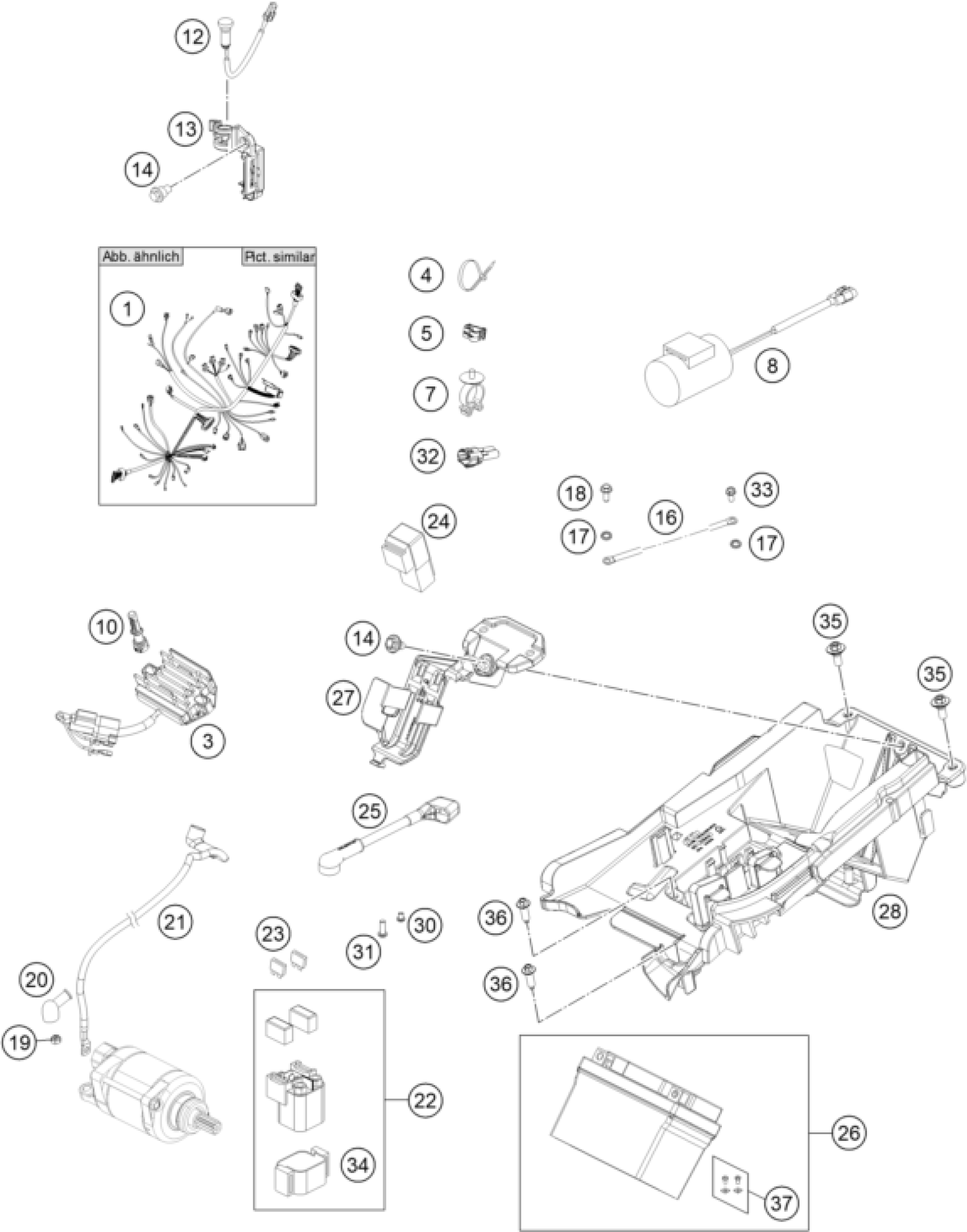

KTM 450 SX-F FACTORY EDITION 2019 WIRING HARNESS Diagram

#

Description
Price

1

wiring harness EFI SXF

79111075000

Unavailable

3

Voltage regulator

77211034000

Unavailable

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

Unavailable

7

CABLE SUPPORT 07

61111041000

Unavailable

8

Capacitor

77711035000

Unavailable

10

Holder control unit

55641030000

Unavailable

12

INDICATOR LIGHT LED YELLOW FI

81214083000

Unavailable

13

HOLDER INDICATOR LIGHT SX

77214098000

Unavailable

14

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

16

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

17

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

18

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

19

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

20

Protection cap for starter eng

77240099000

Unavailable

21

Starterkabel

25111059000

Unavailable

22

Starter reley 12V 99

58211058000

Unavailable

23

Plug-in fuse, big 10A

58011109110

Unavailable

24

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

25

Batteriekabel

25111059050

Unavailable

26

battery 12V/24Wh

79111053000

Unavailable

27

battery support

79111056000

Unavailable

28

Battery box

79111055000

Unavailable

30

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

31

Oval head screw AH socket M6x1

0738060167

Unavailable

32

Endconnector Can-Bus 2017

000700000AL001

Unavailable

33

HH collar screw M5x12 TX30

0025050126

Unavailable

34

BRACKET RUBBER F.STARTRELAY 07

58211058050

Unavailable

35

SPECIAL SCREW M6X15X3

83008000015

Unavailable

36

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable
