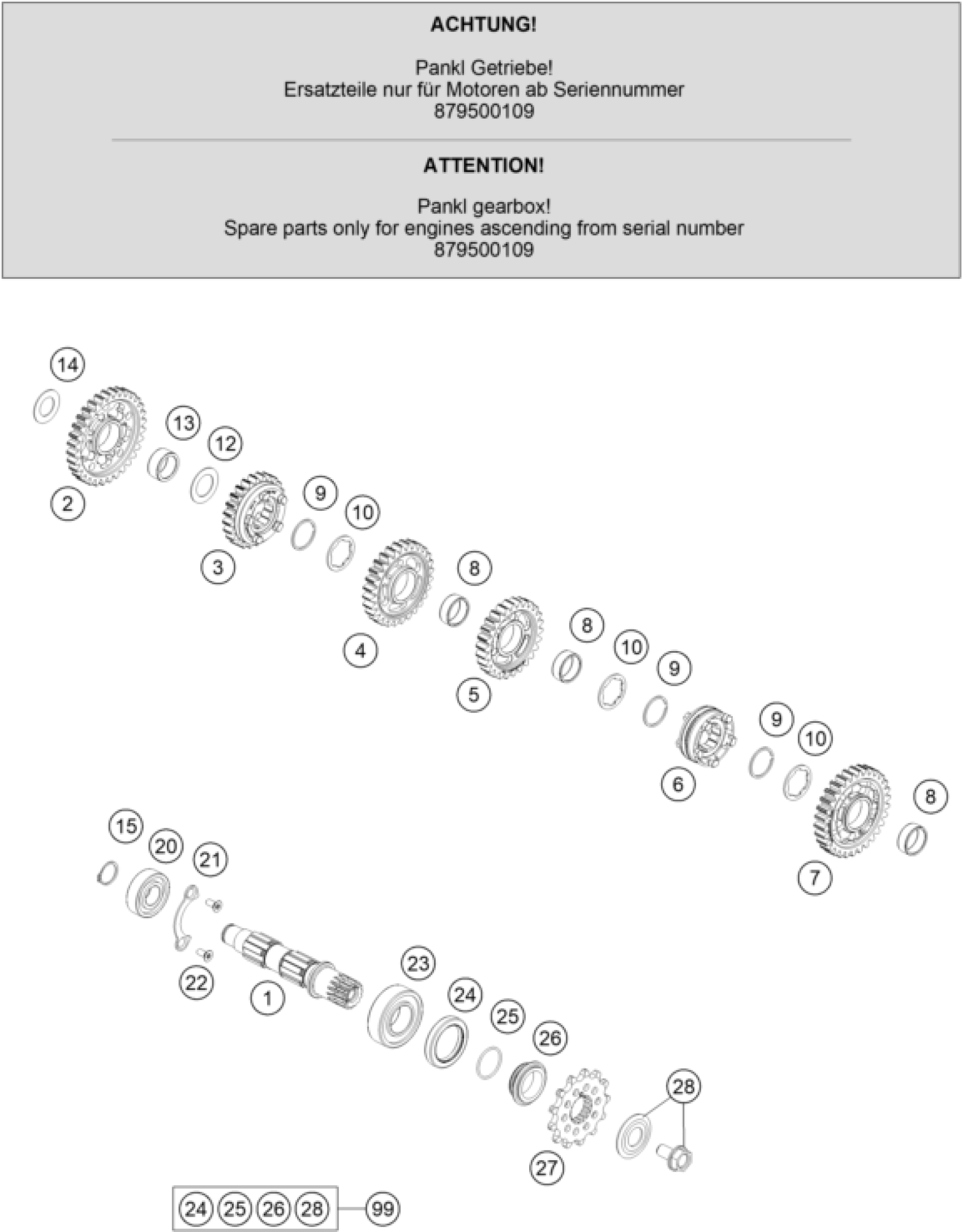

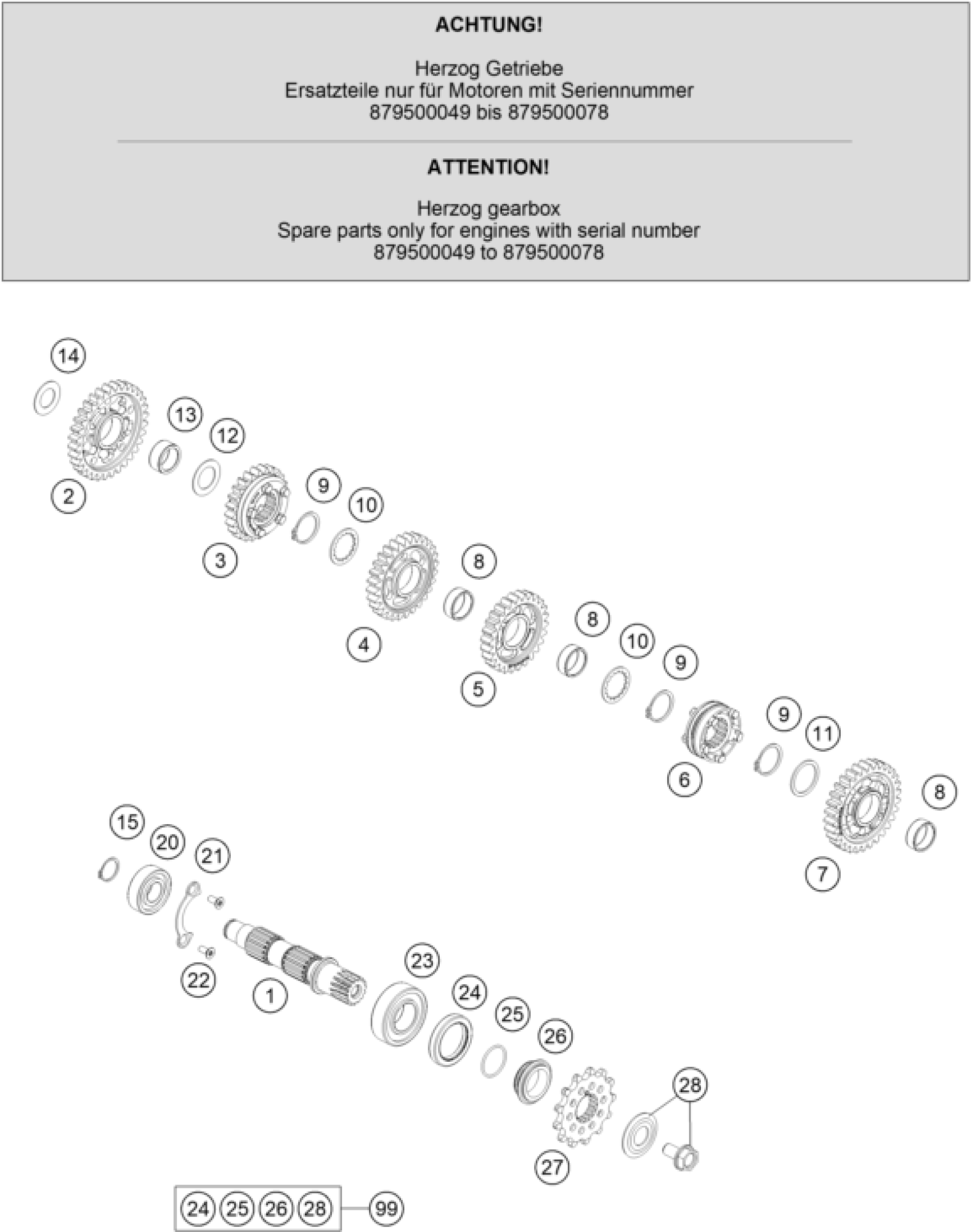

KTM 450 SX-F Factory Edition 2018 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

Counter shaft

79433010100

Unavailable

2

Idler gear 1st gear

79433011100

Unavailable

3

Sliding gear 5th gear

79433015200

Unavailable

4

Idler gear 3rd gear

79433013100

Unavailable

5

Idler gear 4th gear

79433014100

Unavailable

6

Shift collar

79433017100

Unavailable

7

Idler gear 2nd gear

79433012100

Unavailable

8

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

Unavailable

9

CIRCLIP SW25

0417025000

Unavailable

10

STOP DISK 23 X 32 X 1,5

78033033000

Unavailable

12

Shim 20x31.9x1

59033080000

Unavailable

13

NEEDLE BEARING K 20X26X12

0405202612

Unavailable

14

STOP DISC 17,2X30X1

56033030000

Unavailable

15

CIRCLIP DIN 0471-17X1, 5

0471170015

Unavailable

20

BALL BEARING 6203 JR2 C3

0625062035

Unavailable

21

TAB WASHER BEARING COUNT.SHAFT

78033132000

Unavailable

22

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

23

cylindrical roller bearing NJ2

49030023000

Unavailable

24

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

25

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

26

SPACER SLEEVE COUNTER

78133014000

Unavailable

27

Sprocket 13-t

79233029013

Unavailable

27

Sprocket 14-t

79233029014

Unavailable

28

SCREW 10.9+SPRING WASHER

59033034044

Unavailable

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable

11

STOP DISK 26 X 32 X 1,5

78033031000

Unavailable
