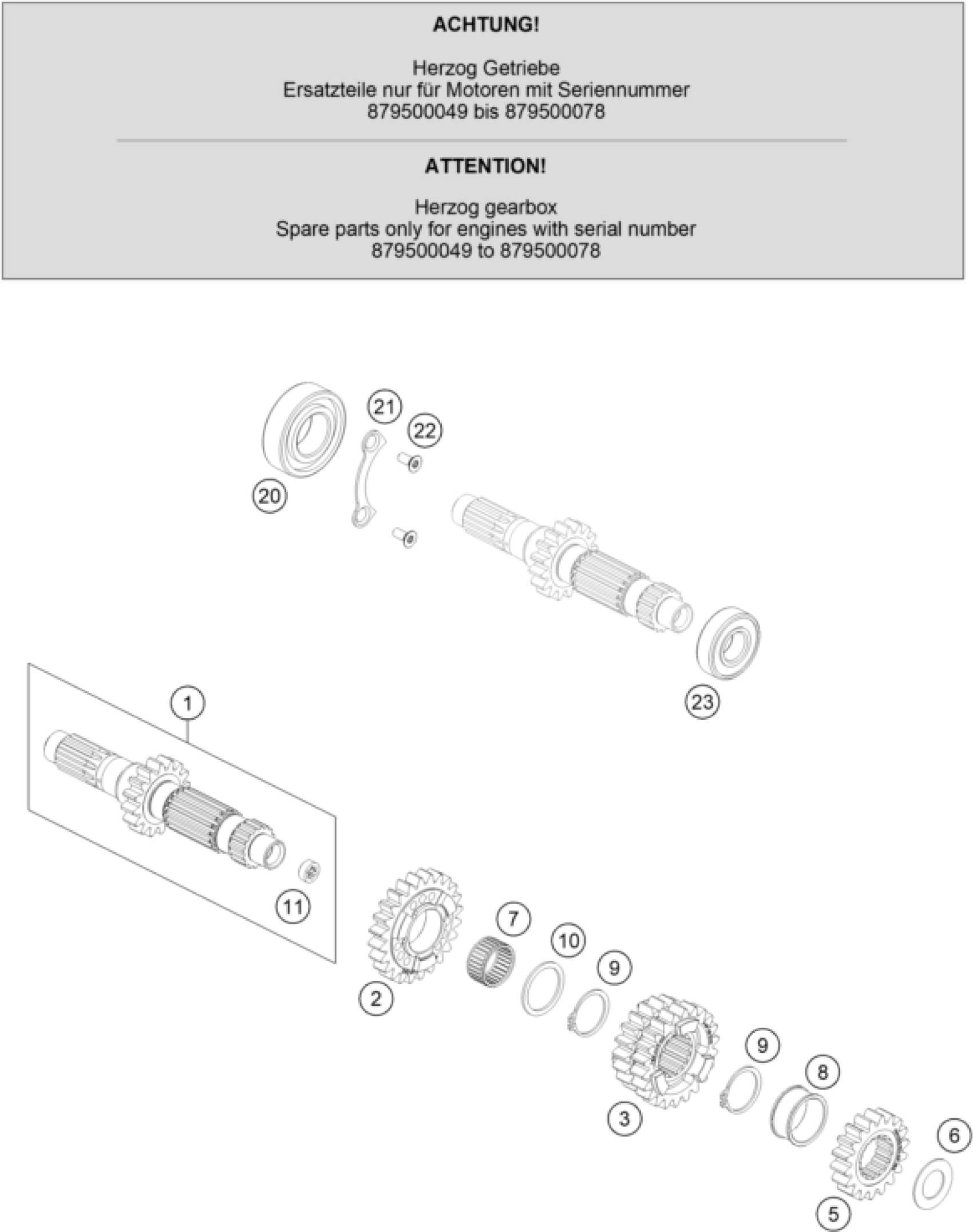

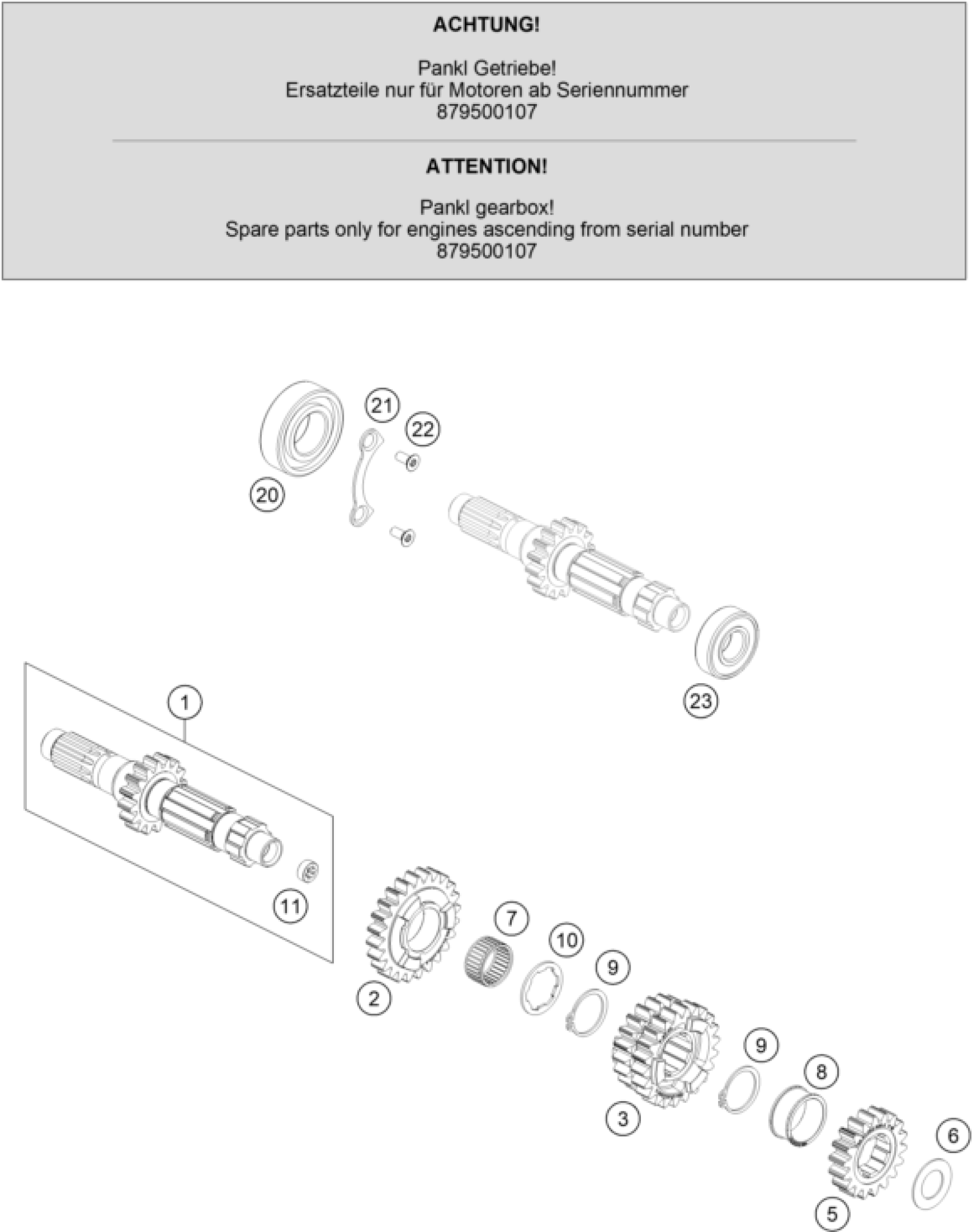

KTM 450 SX-F Factory Edition 2018 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

Drive shaft

79433001200

Unavailable

2

Idler gear 5th gear

79433005100

Unavailable

3

Sliding gear 3rd/4th gear

79433003100

Unavailable

5

Solid gear 2nd G

79433002100

Unavailable

6

STOP DISC 17,2X30X1

56033030000

Unavailable

7

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

8

Spacer

79533032000

Unavailable

9

CIRCLIP SW25

0417025000

Unavailable

10

thrust wahser

79533034000

Unavailable

11

BUSHING

78033001110

Unavailable

20

Groove ball bearing 6205 C4 NT

0625062056

Unavailable

21

TAB WASHER BEARING MAIN SHAFT

78033032000

Unavailable

22

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

23

BALL BEARING 6203 RSH C3

0625062036

Unavailable
