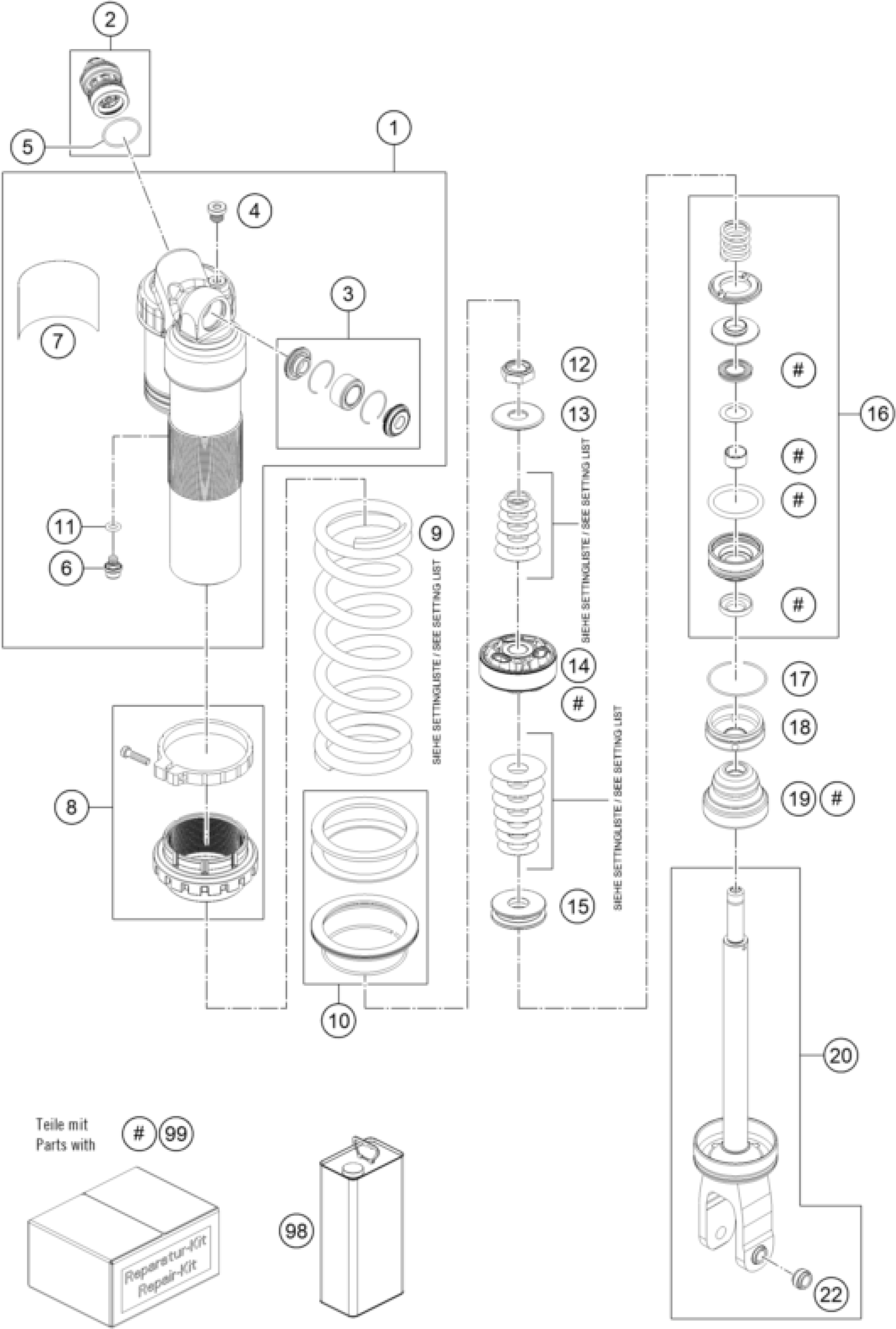

KTM 450 SX-F Factory Edition 2018 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

2

Compression cpl.

50181101S23

Unavailable

3

Ball joint bearing kit 12mm

R12025

Unavailable

4

HS cylinder-head screw R1/8 l8

50180095

Unavailable

5

O-ring 25x1,5 Viton70

50180218

Unavailable

6

HS lock screw M5x6

36120151

Unavailable

7

Sticker WP warning 55x92

52000146

Unavailable

8

Spring retainer M58,1x2 plasti

50180991S

Unavailable

10

SPRING PLATE SET

50180824S

Unavailable

11

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

13

Rebound disc 12x34x2 h0

50181092

Unavailable

14

Piston 12x50x20 cpl.

50181255S

Unavailable

15

Rebound disc 12x43x12,5 h8

50181091

Unavailable

16

Sealholder 50x28 cpl.

50180603SA

Unavailable

17

Round-wire snap ring 53x1,75

50180126

Unavailable

18

Cover 50x6 h16

50180626

Unavailable

19

Rubber pad 18x58x46 black

50181100

Unavailable

20

MONOSHOCK BOTTOM PART CPL.

50181148S1

Unavailable

22

Bush M10x12/15/13x9,5

46811205

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

1

MONOSHOCK UPPER PART CPL.

50181144S1

Unavailable

9

SPRING 260 45 N/MM

91210100S

Unavailable

9

SPRING 260 42 N/MM

91210124S

Unavailable

9

SPRING 260 48 N/MM

91210101S

Unavailable

12

Locking nut M12x1 h9 WAF19

50181207

Unavailable

99

Rebuild kit 5018 Link 2019

RP10019

Unavailable
