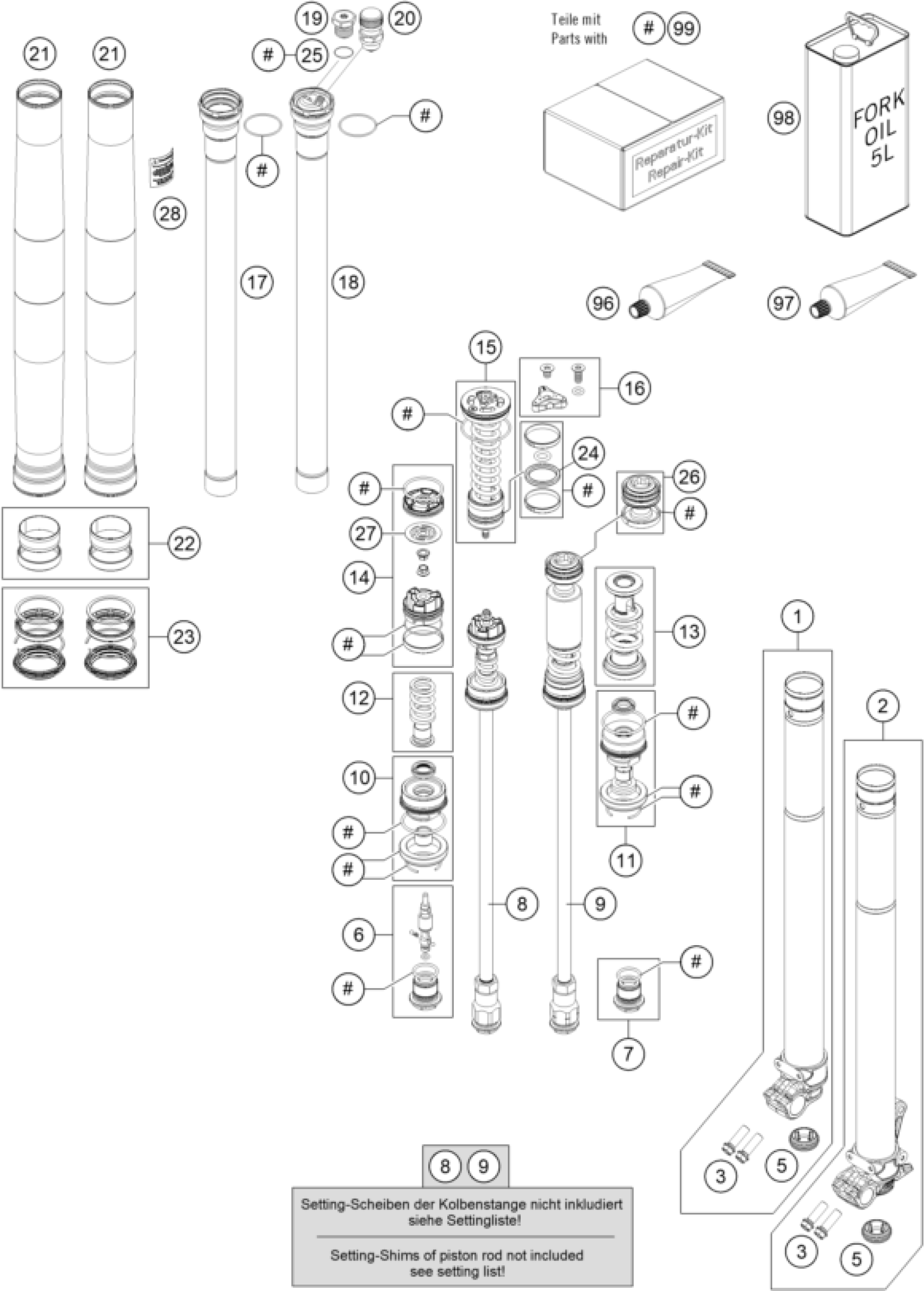

KTM 450 SX-F Factory Edition 2018 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

FORK LEG R/S + TUBE CPL.

48601408S2

Unavailable

2

FORK LEG L/S + TUBE CPL.

48601407S2

Unavailable

3

HH collar screw M8x25

0025080256

Unavailable

5

Rubber cap 26,4x11

48600692

Unavailable

6

Adjustment screw slot M20x1 cp

48601484S

Unavailable

7

HH collar screw M20x1x18 cpl.

48601533S

Unavailable

10

SCREW SLEEVE OIL CPL.

48601462S1

Unavailable

11

Screw sleeve M35,5x0,8

48601452S1

Unavailable

12

Spring (13,9) 37-32 rebound cp

48600578S

Unavailable

13

Spring (22) 60-30 rebound cpl.

48601820S

Unavailable

14

Piston set air fork D34 MY18

RP10015

Unavailable

15

Compression cpl.

48601485S3

Unavailable

16

SMALL PARTS KIT SCREW CAP

R14062

Unavailable

17

SCREW CAP + TUBE CPL. R/S

48601454S1

Unavailable

18

SCREW CAP + TUBE CPL. L/S

48601453S1

Unavailable

19

ISA lock screw M8x1 l7 Alu

48601495

Unavailable

20

Schrader valve M8x1 cmpl.

48601494S

Unavailable

21

Fork outer tube 49,13x577 dt54

48601671

Unavailable

22

Guide bushing set fork 48mm

R14047

Unavailable

23

Repair kit fork 48mm

R14046

Unavailable

24

X-ring 26,57x3,53 FKM80

04100002

Unavailable

25

O-ring 6x1,5 NBR70

48600044

Unavailable

26

Piston 34x35.4 mainpiston Freu

48601628S

Unavailable

27

Washer check valve 6x31x0,4

48601459

Unavailable

96

SILICONE GREASE F. DUST STRI

T511

Unavailable

98

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

99

SEALING KIT

R14060

Unavailable

8

Piston Rod D12 M9x1 L385 kpl.

48601574S3

Unavailable

9

piston rod le. cmpl. M12x1

48601501S1

Unavailable

28

Sticker warning 40x40

52000158

Unavailable

97

special grease AER Fork 400g

00062010053

Unavailable
