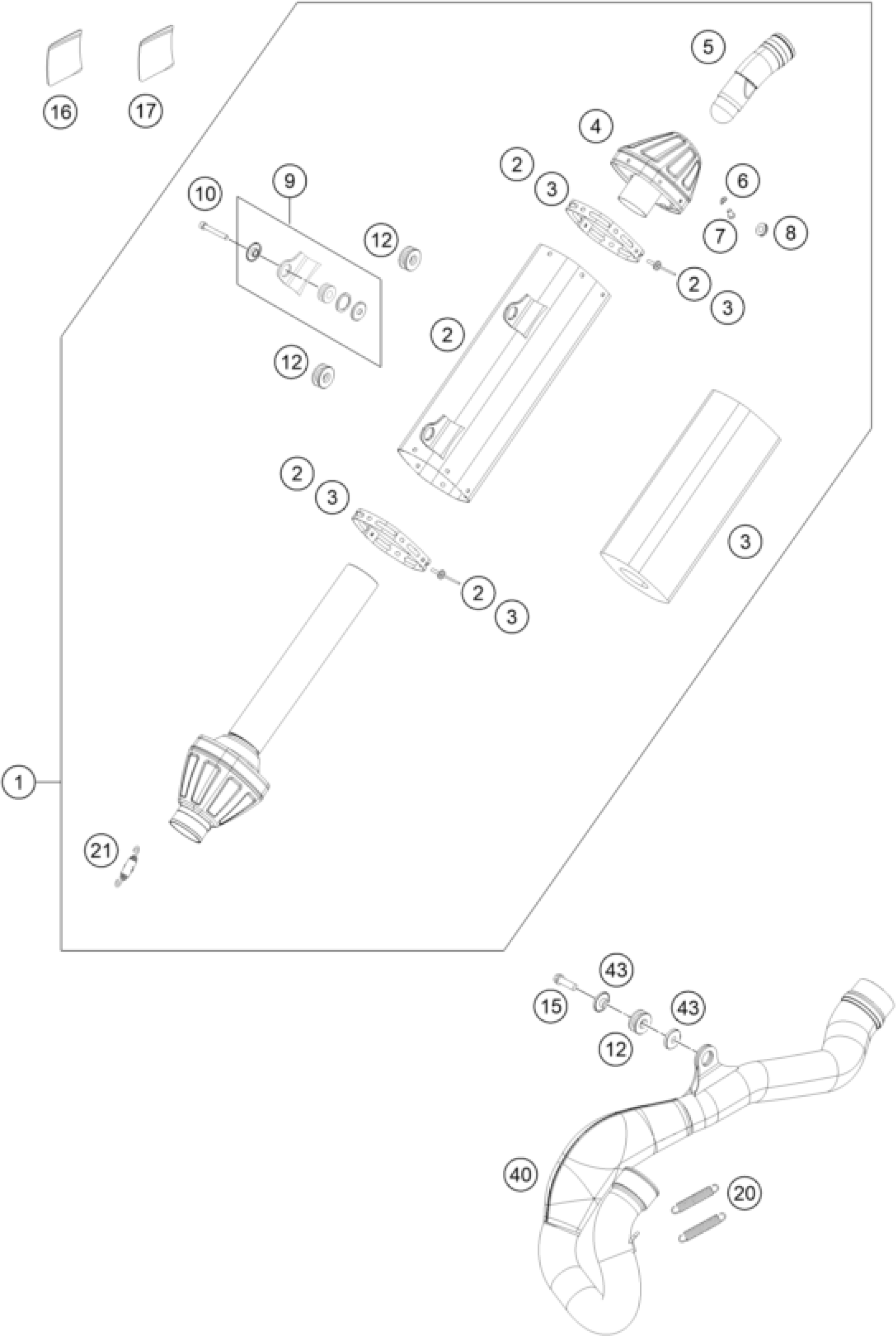

KTM 450 SX-F FACTORY EDITION 2016 EXHAUST SYSTEM Diagram

#

Description

Price

5

NOISE INSERT EVO

79405989030

Unavailable

8

RUBBER CAP

76505099050

Unavailable

7

BOLT

79405062020

Unavailable

10

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

1

MUFFLER

79405079500

Unavailable

9

MOUNTING-KIT

79405060000

Unavailable

12

DAMP. COMPON. BLACK

77205068000

Unavailable

15

HH collar screw M8x35 TX40

0025080356

Unavailable

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

21

EXHAUST-SPRING SMALL W. RUBBER

57305016100

Unavailable

40

MANIFOLD SX

79405007000

Unavailable

43

BUSHING 8.5x12x28x8.3

77805069000

Unavailable

4

END CAP

79005989050

Unavailable

17

STICKER AKRAP.

SXS12350509

Unavailable

6

WASHER

79405062030

Unavailable

16

STICKER AKRAPOVIC OEM

79005989085

Unavailable

2

REPAIR KIT

79005979120

Unavailable

3

MUFFLER REPACK KIT

79005989010

Unavailable
