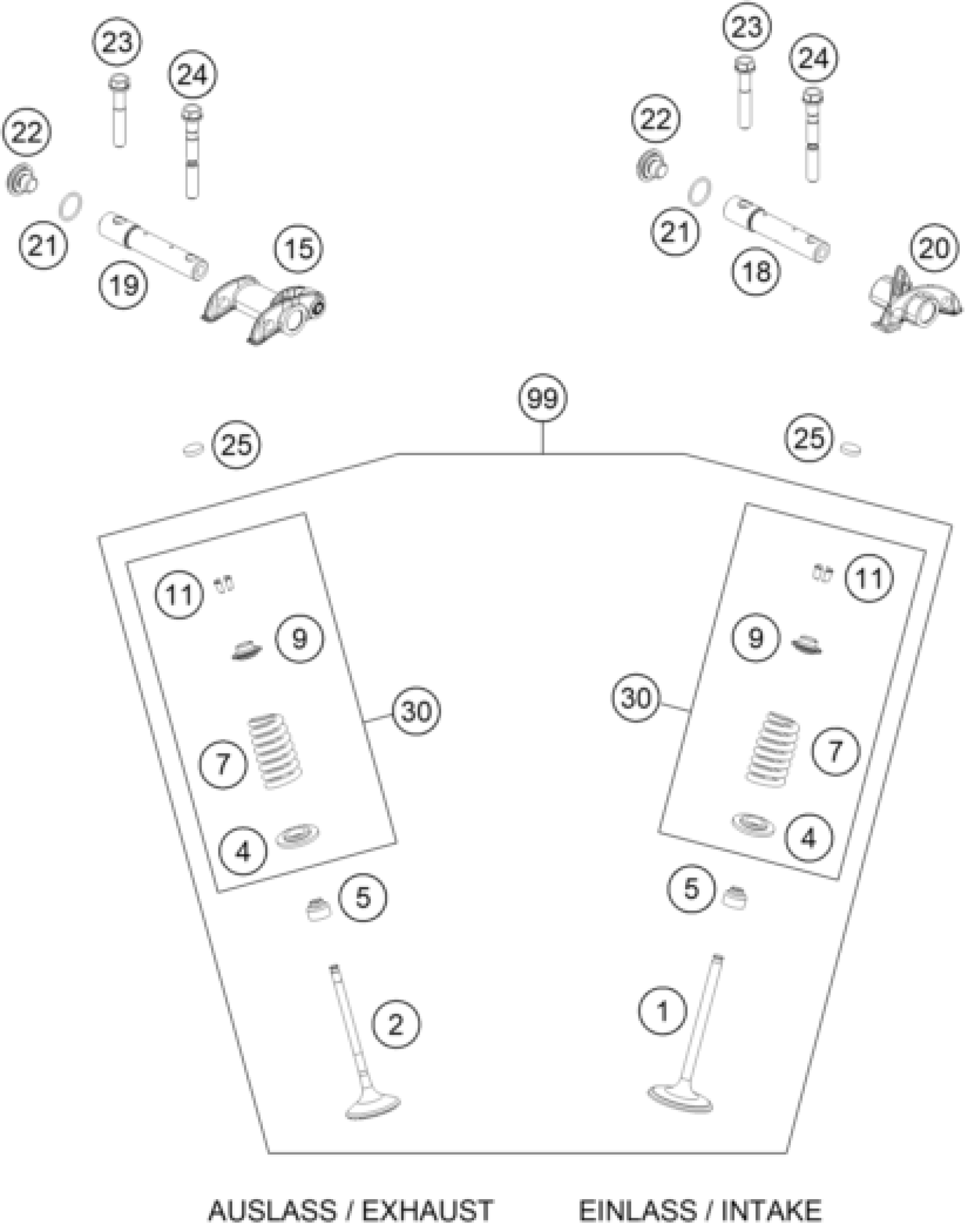

KTM 450 SX-F FACTORY EDITION 2015 VALVE DRIVE Diagram

#

Description

Price

23

SPECIAL SCREW M7X40 WS10

77036080000

Unavailable

20

ROCKER ARM INTAKE

78936060000

Unavailable

1

INTAKE VALVE

78936030100

Unavailable

2

EXHAUST VALVE

78936031000

Unavailable

4

VALVE SPRING HOLDER

78936036000

Unavailable

5

VALVE-STEM SEALING RACING

59036027000

Unavailable

7

VALVE SPRING

78936028000

Unavailable

9

VALVE SPRING RETAINER

78936032000

Unavailable

11

VALVE COLLET 07

77336033100

Unavailable

15

ROCKER ARM EXHAUST CPL.

78936061044

Unavailable

18

ROCKER ARM SHAFT INTAKE

79436056100

Unavailable

19

ROCKER ARM SHAFT EXHAUST

79436057000

Unavailable

21

O-RING 15,00X1,50 VITON

0770150151

Unavailable

22

PLUG M10X1,25

79436081000

Unavailable

24

FIT BOLT M7X1X55

78036080000

Unavailable

25

SHIM D=8,9/1,72

77036035172

Unavailable

25

SHIM D=8,9/1,76

77036035176

Unavailable

25

SHIM D=8,9/1,80

77036035180

Unavailable

25

SHIM D=8,9/1,84

77036035184

Unavailable

25

SHIM D=8,9/1,88

77036035188

Unavailable

25

SHIM D=8,9/1,92

77036035192

Unavailable

25

SHIM D=8,9/1,96

77036035196

Unavailable

25

SHIM D=8,9/2,00

77036035200

Unavailable

25

SHIM D=8,9/2,04

77036035204

Unavailable

25

SHIM D=8,9/2,08

77036035208

Unavailable

25

SHIM D=8,9/2,12

77036035212

Unavailable

25

SHIM D=8,9/2,16

77036035216

Unavailable

25

SHIM D=8,9/2,20

77036035220

Unavailable

25

SHIM D=8,9/2,24

77036035224

Unavailable

25

SHIM D=8,9/2,28

77036035228

Unavailable

25

SHIM D=8,9/2,32

77036035232

Unavailable

25

SHIM D=8,9/2,36

77036035236

Unavailable

25

SHIM D=8,9/2,40

77036035240

Unavailable

25

SHIM D=8,9/2,44

77036035244

Unavailable

25

SHIM D=8,9/2,48

77036035248

Unavailable

25

SHIM D=8,9/2,52

77036035252

Unavailable

25

SHIM D=8,9/2,56

77036035256

Unavailable

25

SHIM D=8,9/2,60

77036035260

Unavailable

30

VALVE SPR.-KIT 450 SX-F 13

78936029044

Unavailable

99

VALVE KIT 450 HQV 14

78936030110

Unavailable
