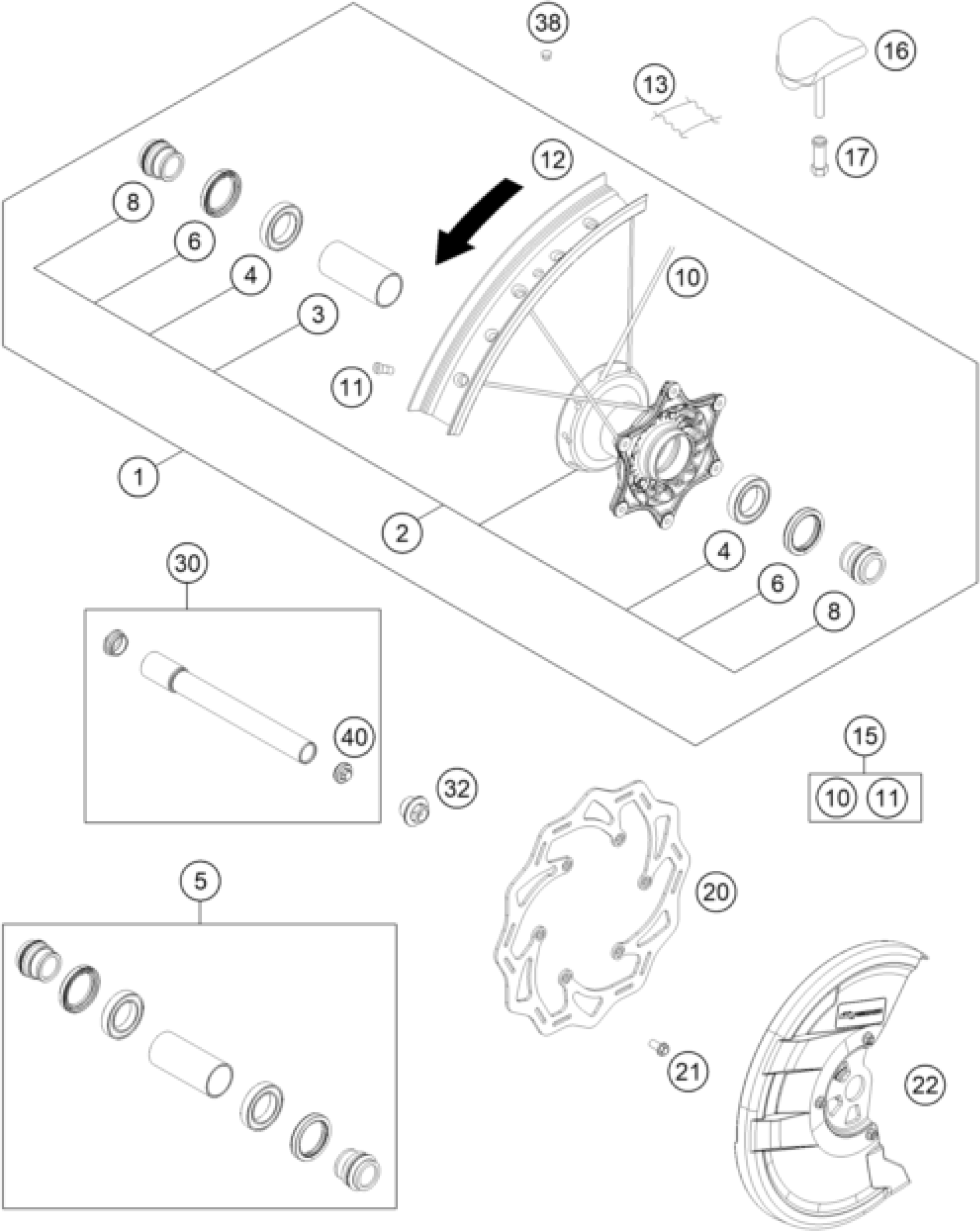

KTM 450 SX-F FACTORY EDITION 2015 FRONT WHEEL Diagram

#

Description
Price

1

FRONTWHEEL CPL.1,6X21 EXCEL 14

7770900114430

Unavailable

2

FRONT WHEEL HUB CPL.

77709010144

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

5

wheel bearing repair kit

77709015000

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

8

SPACER BUSHING F. FR. WHEEL

77709012000

Unavailable

10

SPOKE M4,5x226-21'' 11

77109071226

Unavailable

11

Spoke nipple M4.5 AL

77109072000

Unavailable

12

RIM 1,6''X21'' EXCEL SXS

7730907000030

Unavailable

13

Tube protector 21"

50309073000

Unavailable

15

SPOKE KIT FRONT ''21''

00050000916

Unavailable

16

RIM LOCK 1,60''

78109090000

Unavailable

17

NUT FOR WHEEL HOLDER

77110090050

Unavailable

20

BRAKE DISC FRONT 260MM 15

77709060000

Unavailable

21

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

22

BRAKE DISC GUARD CPL.

7900996100030

Unavailable

30

WHEEL SPIN.FR. CPL. D=22 15

77709081033

Unavailable

32

AXLESCREW M20X1.5 SW17

70009082000

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

40

AUXILIARY SCREW FRONT

7770908107055

Unavailable
