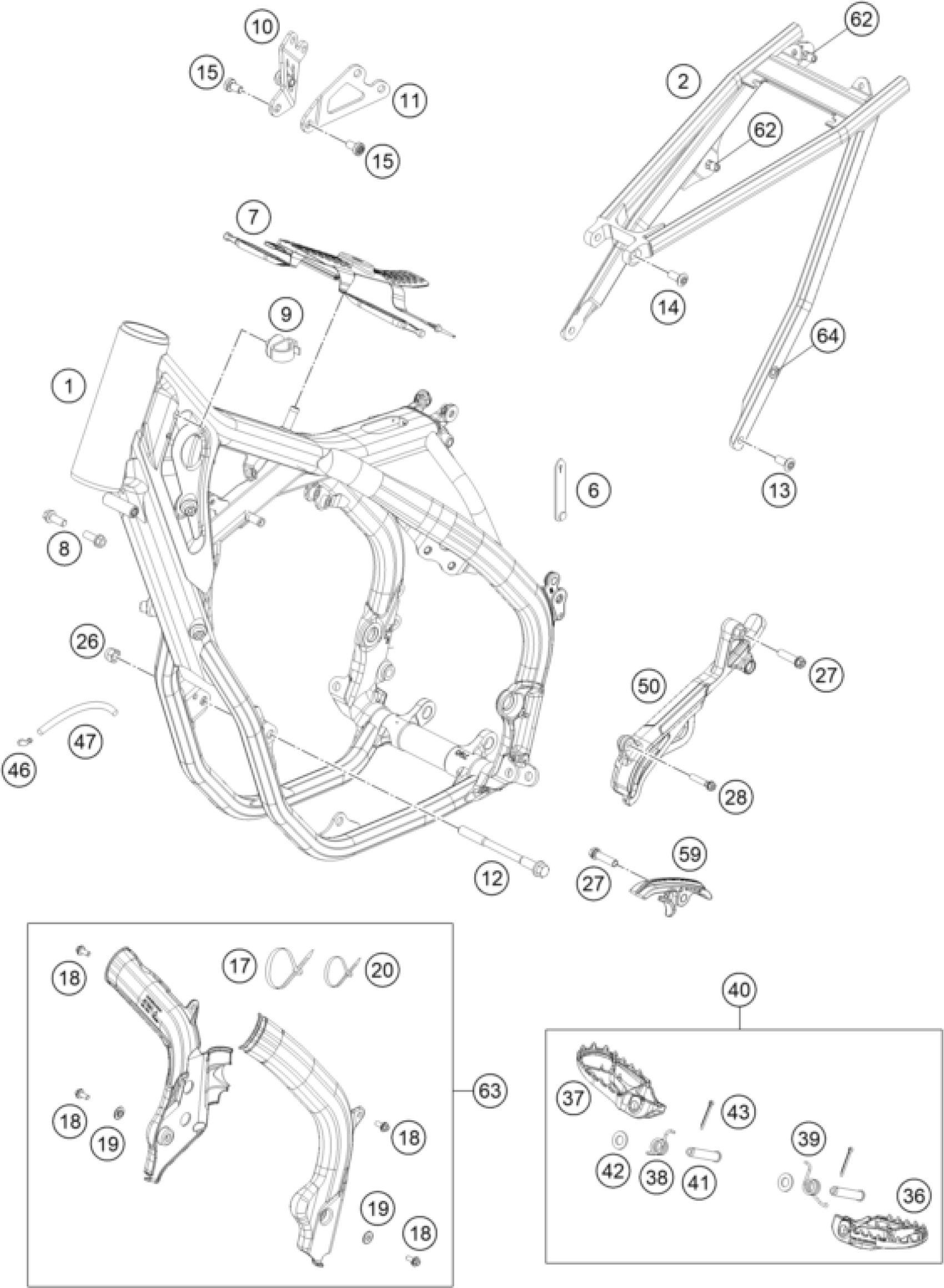

KTM 450 SX-F FACTORY EDITION 2015 FRAME Diagram

#

Description
Price

13

Special screw M8X18 TORX45 SL

79003003000

Unavailable

1

FRAME ''794P3'' ORANGE

79403001000EB

Unavailable

2

SUBFRAME 2016

79003002000

Unavailable

10

ENGINE BRACE R/S CPL.

79403014044

Unavailable

11

ENGINE BRACE L/S

79403013000

Unavailable

38

FOOTREST SPRING R/S 2016

79003044000

Unavailable

6

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

7

TANK REST RUBBER

79007012000

Unavailable

8

HH collar screw M8x16 TX40 SL

0025080166S

Unavailable

9

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

12

Enginebrac. screw M10X123 WS=1

59003013000

Unavailable

14

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

15

AH-COLLAR SCREW M8X15 TORX45

0035080156S

Unavailable

39

FOOTREST SPRING L/S 2016

79003045000

Unavailable

17

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

18

HH COLLAR SCREW M 5X12 WS=6

0014050123

Unavailable

19

Bush f. frame protection 03

54803092060

Unavailable

20

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

40

FOOT PEGS SET CPL. 2016

79003040033

Unavailable

26

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

27

HH collar screw M8x30

0025080306

Unavailable

28

HH collar screw M6x30 TX30

0025060306

Unavailable

36

FOOTREST L/S 2016

79003040000

Unavailable

37

FOOTREST R/S 2016

79003041000

Unavailable

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

42

washer DIN 125 A 10.5

0125100003

Unavailable

43

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

46

ANGLE PIECE '97

50303089000

Unavailable

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

50

SPROCKET COVER 450

79403096000

Unavailable

59

Chain slider, lower part, cmpl

79003053000

Unavailable

62

BLIND RIVET NUT EM6-60LF/HX

77303139000

Unavailable

63

FRAME PROTECTION SET BLACK

7900309400033

Unavailable

64

BLIND RIVET NUT M6 KNURLED

79003002080

Unavailable
