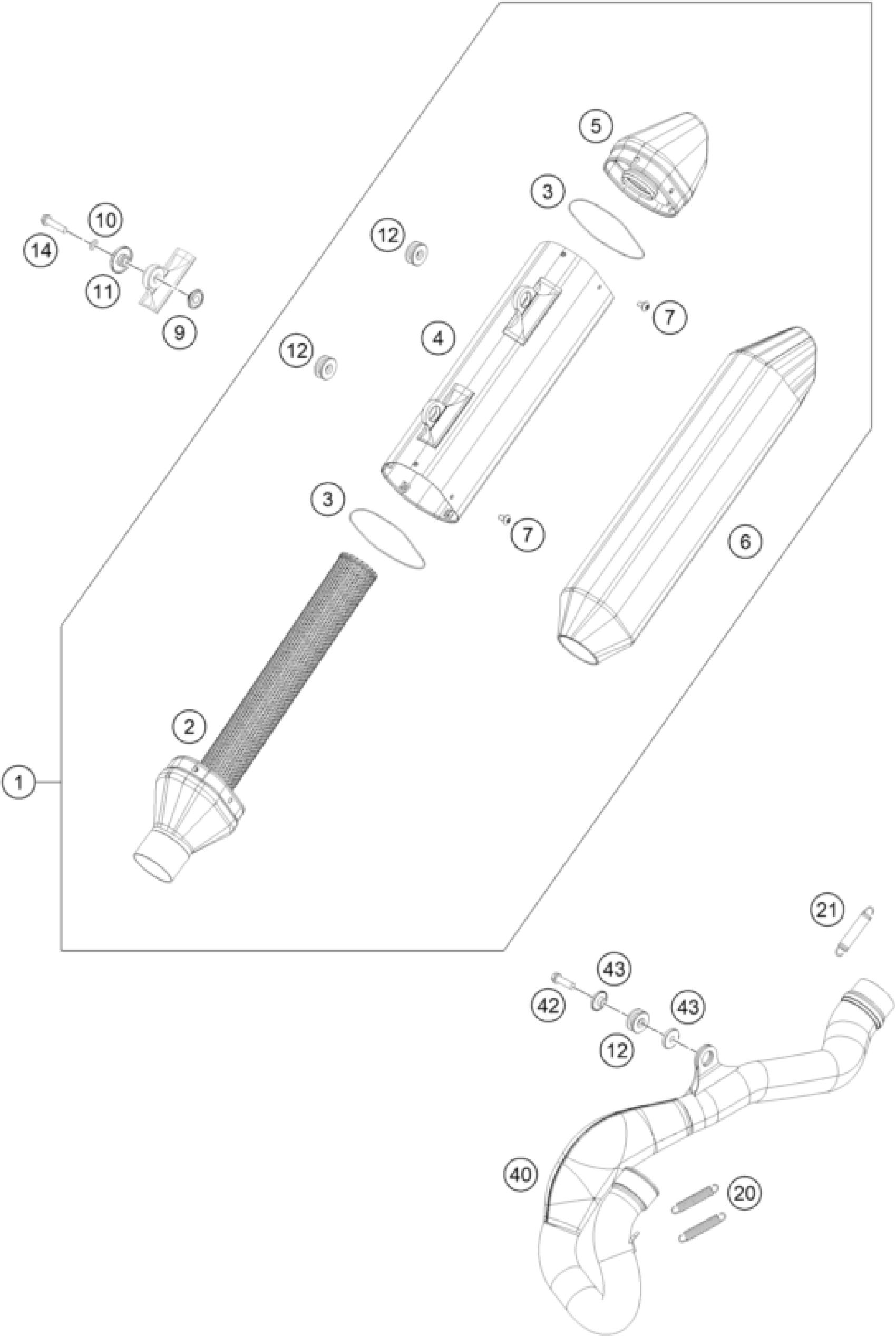

KTM 450 SX-F FACTORY EDITION 2015 EXHAUST SYSTEM Diagram

#

Description
Price

4

SILENCER HOUSING

79005079080

Unavailable

5

ENDCAP CPL.

77705079060

Unavailable

9

BUSHING 7.5x12x20x8.2 11

77205069000

Unavailable

10

spring washer DIN 137 B - 6

0137060003

Unavailable

1

SILENCER

79005079000

Unavailable

11

BUSHING 7.5x12x28x8.3 11

77205169000

Unavailable

12

DAMP. COMPON. BLACK

77205068000

Unavailable

14

HH collar screw M6x35 TX30

0025060356

Unavailable

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

21

TEN.SPRING L=75MM EY.MOVEABLE

50305116000

Unavailable

40

MANIFOLD SX

79405007000

Unavailable

42

HH collar screw M8x25

0025080256

Unavailable

43

BUSHING FOR EXHAUST SUPPORT 03

59405069000

Unavailable

2

CONNECTING CAP CPL.

79005079050

Unavailable

3

O-RING 74,00X1,50 FKM 75SH

0770740015

Unavailable

6

ROCKWOOL PREFORMED

79005078590

Unavailable

7

SCREW TORX M5X10

78105081010

Unavailable
