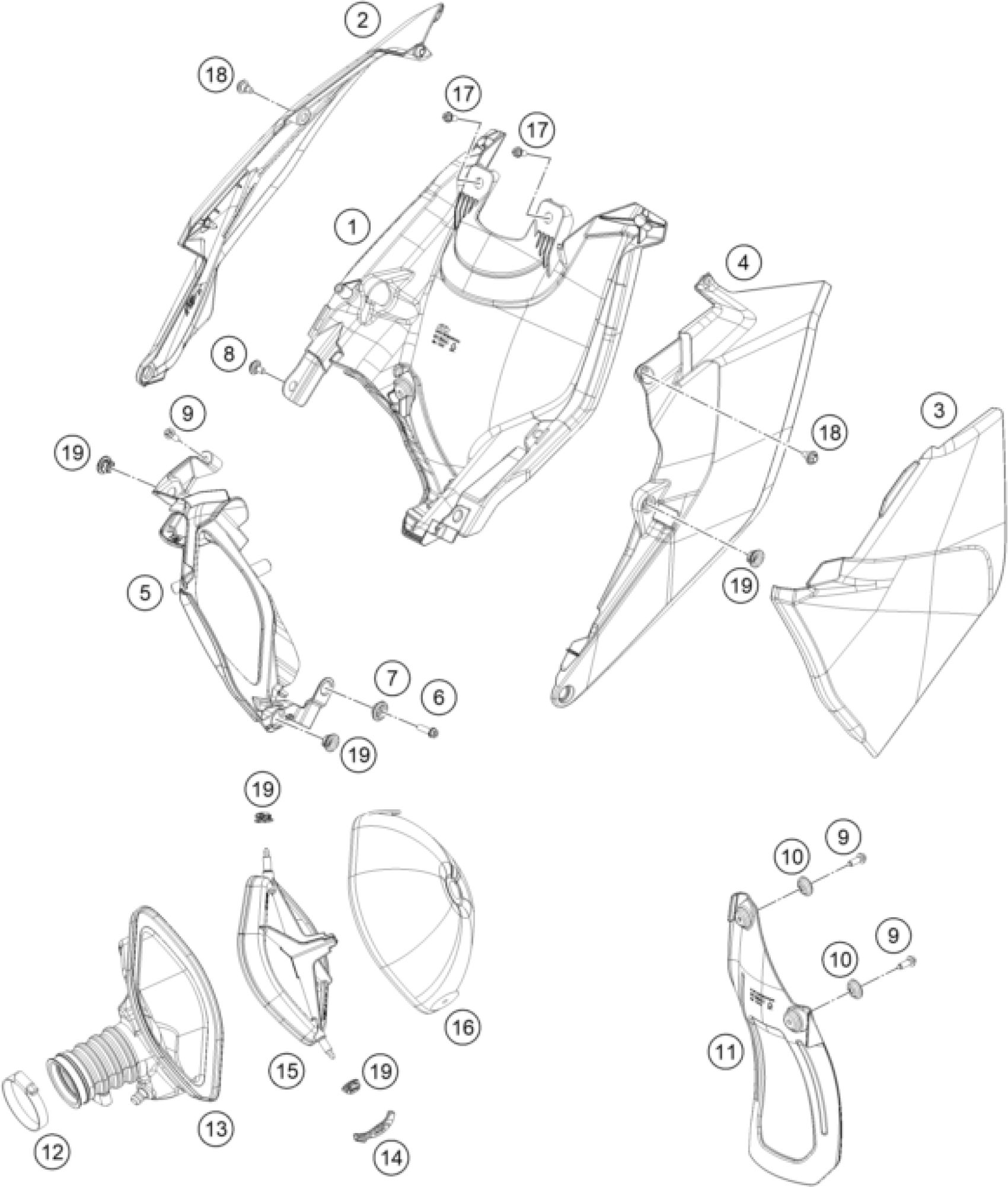

KTM 450 SX-F FACTORY EDITION 2015 AIR FILTER Diagram

#

Description
Price

17

HH collar screw M6x12 TX30

0025060126

Unavailable

18

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

19

quick release rubber grommet

47106003160

Unavailable

1

AIR BOX BOTTOM

7900600100028

Unavailable

3

AIRBOX COVER L/S FACTORY EDIT.

7900600300028A

Unavailable

4

AIRBOX SIDCOVER FACTORY EDIT.

7900600700028A

Unavailable

5

FILTER BOX FRONT PART

7900600101028

Unavailable

6

HH collar screw M6x20 TX30

0025060206

Unavailable

7

COLLAR BUSH. F.REAR FENDER 07

77308013010

Unavailable

8

SPECIAL SCREW M6X15X3

83008000015

Unavailable

2

AIRBOX COVER R/S FACTORY EDIT.

7900600400028A

Unavailable

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

10

chain slider bushing

77304066050

Unavailable

13

INTAKE BOOT

79406026000

Unavailable

14

FILTER MOUNTING BRACKET

79006017000

Unavailable

15

AIR FILTER SUPPORT

79006016000

Unavailable

16

AIR FILTER

79006015000

Unavailable

11

SPLASH GUARD

79006010000

Unavailable

12

HOSE CLAMP 45-65MM

78006027000

Unavailable
