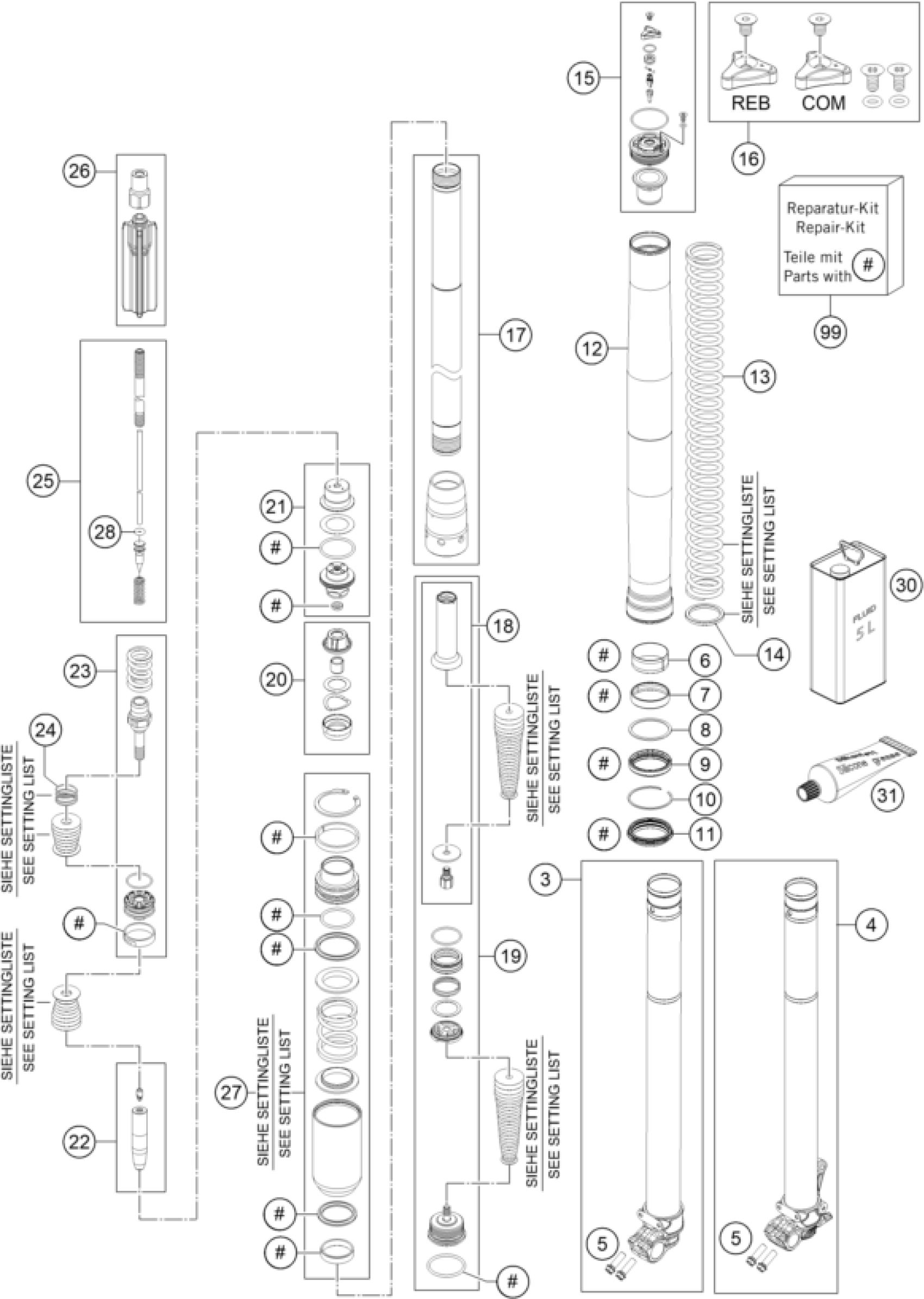

KTM 450 SX-F FACTORY EDITION 2014 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

3

AXLE CLAMP R/S WITH INNER TUBE

48601327S1

Unavailable

4

AXLE CLAMP L/S WITH INNER TUBE

48601326S1

Unavailable

5

HH collar screw M8x25

0025080256

Unavailable

6

Guide bushing 47x49x20

48601008

Unavailable

7

Guide bushing 48x52x12

48601009

Unavailable

8

Supportwasher 50x57,6x1,5

48600013

Unavailable

9

Shaft seal SKF 48x57,9x11,4 re

48601179

Unavailable

10

Snap ring SB58x1,5 acc drawing

48600070

Unavailable

11

Dirt scarper SKF 48mm red

48601178

Unavailable

12

Fork outer tube 49,13x577 dt54

48600736

Unavailable

13

SPRING 4,4N/MM SET D=4,9MM

91410102S

Unavailable

13

FORK SPRING L= 470 4,6 N/MM SE

91410103S

Unavailable

13

SPRING 4,8N/MM SET D=4,9MM

91410104S

Unavailable

13

SPRING 5,0N/MM SET D=4,9MM

91410105S

Unavailable

14

Washer 35x43x2,5 plastic

48600456

Unavailable

14

Washer 35x43x1,5 plastic

48600458

Unavailable

15

SCREW CAP M51X1,5 COMP. KPL

48601116S

Unavailable

15

SCREW CAP M51X1,5 REB. KPL.

48601050S

Unavailable

16

SCREW CAP SMALL PART KIT

R14033

Unavailable

17

CARTRIDGE KIT

48601031S

Unavailable

18

HYDROSTOP KIT

R14044

Unavailable

19

BASE VALVE KIT

48601403S

Unavailable

20

Check valve d21mm cpl.

48601025S1

Unavailable

21

SCREW SLEEVE KIT

R14035

Unavailable

22

NEEDLE KIT

48601123S

Unavailable

23

TAP KIT

R14045

Unavailable

24

Spring (11,4) 0,4-8 valve

48600382

Unavailable

25

PISTON ROD CPL.

48601343S

Unavailable

26

SPRING GUIDE CPL.

48601035S1

Unavailable

27

PRESSURE TANK FOR 24187O57 CPL

48601315S3

Unavailable

30

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

31

SILICONE GREASE F. DUST STRI

T511

Unavailable

99

REPAIR - KIT

R24001

Unavailable

28

O-ring 2,2x1,6 Viton75 green

46811265

Unavailable
