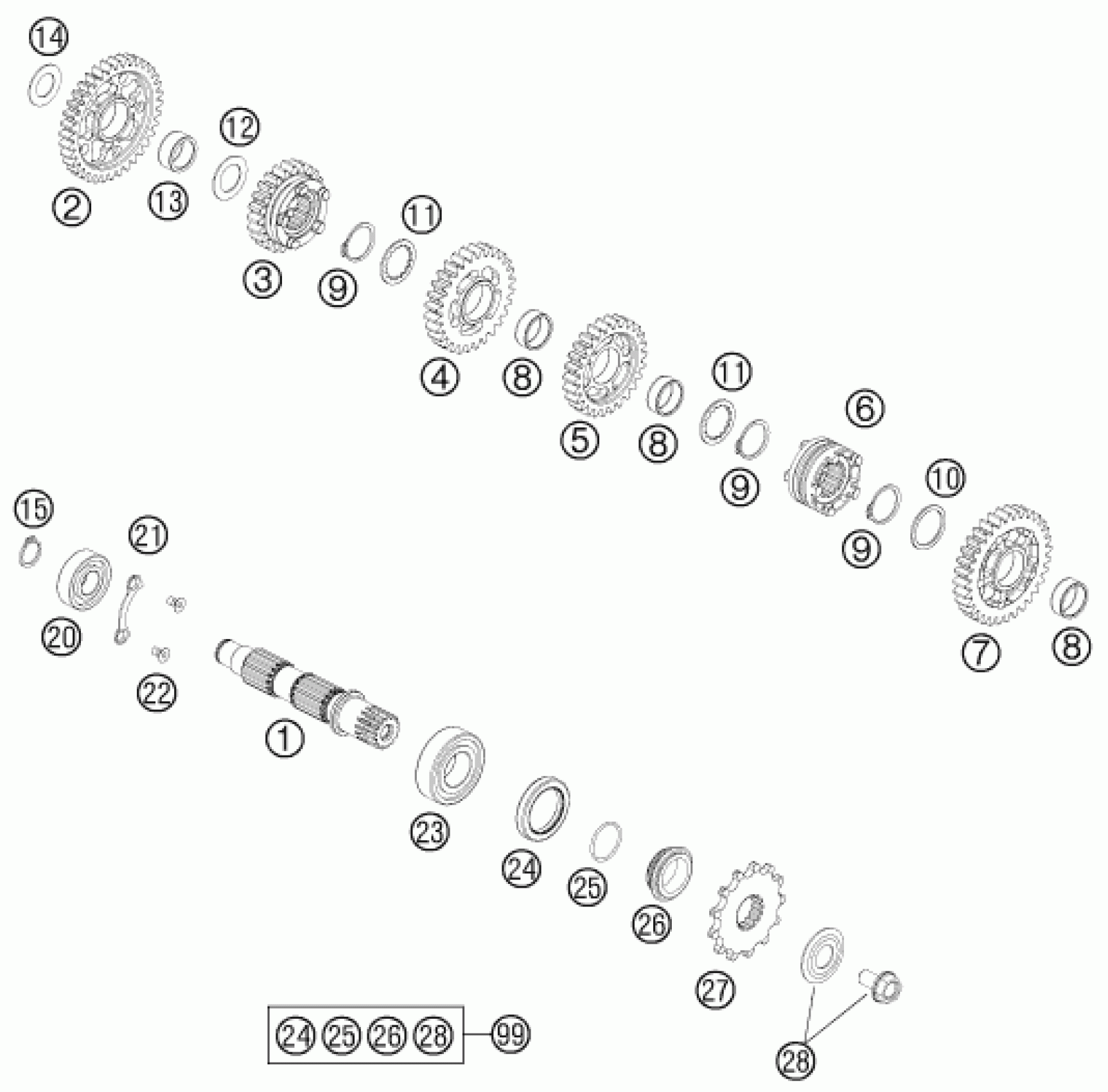

KTM 450 SX-F FACTORY EDITION 2013 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

COUNTERSHAFT 08

78033010000

Unavailable

2

IDLER GEAR 1.G.

78933011000

Unavailable

3

SLIDING GEAR 5.G.

78933015000

Unavailable

4

IDLER GEAR 3.G.

78933013000

Unavailable

5

IDLER GEAR 4.G.

78933014000

Unavailable

6

SHIFT COLLAR

78933018000

Unavailable

7

IDLER GEAR 2.G.

78933012000

Unavailable

8

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

Unavailable

9

CIRCLIP DIN0471-25X1,2

0471250120

Unavailable

10

STOP DISK 26 X 32 X 1,5

78033031000

Unavailable

11

STOP DISK 23 X 32 X 1,5

78033033000

Unavailable

12

Shim 20x31.9x1

59033080000

Unavailable

13

NEEDLE BEARING K 20X26X12

0405202612

Unavailable

14

STOP DISC 17,2X30X1

56033030000

Unavailable

15

CIRCLIP DIN 0471-17X1, 5

0471170015

Unavailable

20

BALL BEARING 6203 JR2 C3

0625062035

Unavailable

21

TAB WASHER BEARING COUNT.SHAFT

78033132000

Unavailable

22

hex lobe countersunc screw M5x

0019050106S

Unavailable

23

cylindrical roller bearing NJ2

49030023000

Unavailable

24

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

25

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

26

SPACER SLEEVE COUNTER

78133014000

Unavailable

27

FRONT SPROCKET 13-T

50033029013

Unavailable

27

FRONT SPROCKET 14-T

50033029014

Unavailable

27

FRONT SPROCKET 15-T

50033029015

Unavailable

28

SCREW 10.9+SPRING WASHER

59033034044

Unavailable

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable
