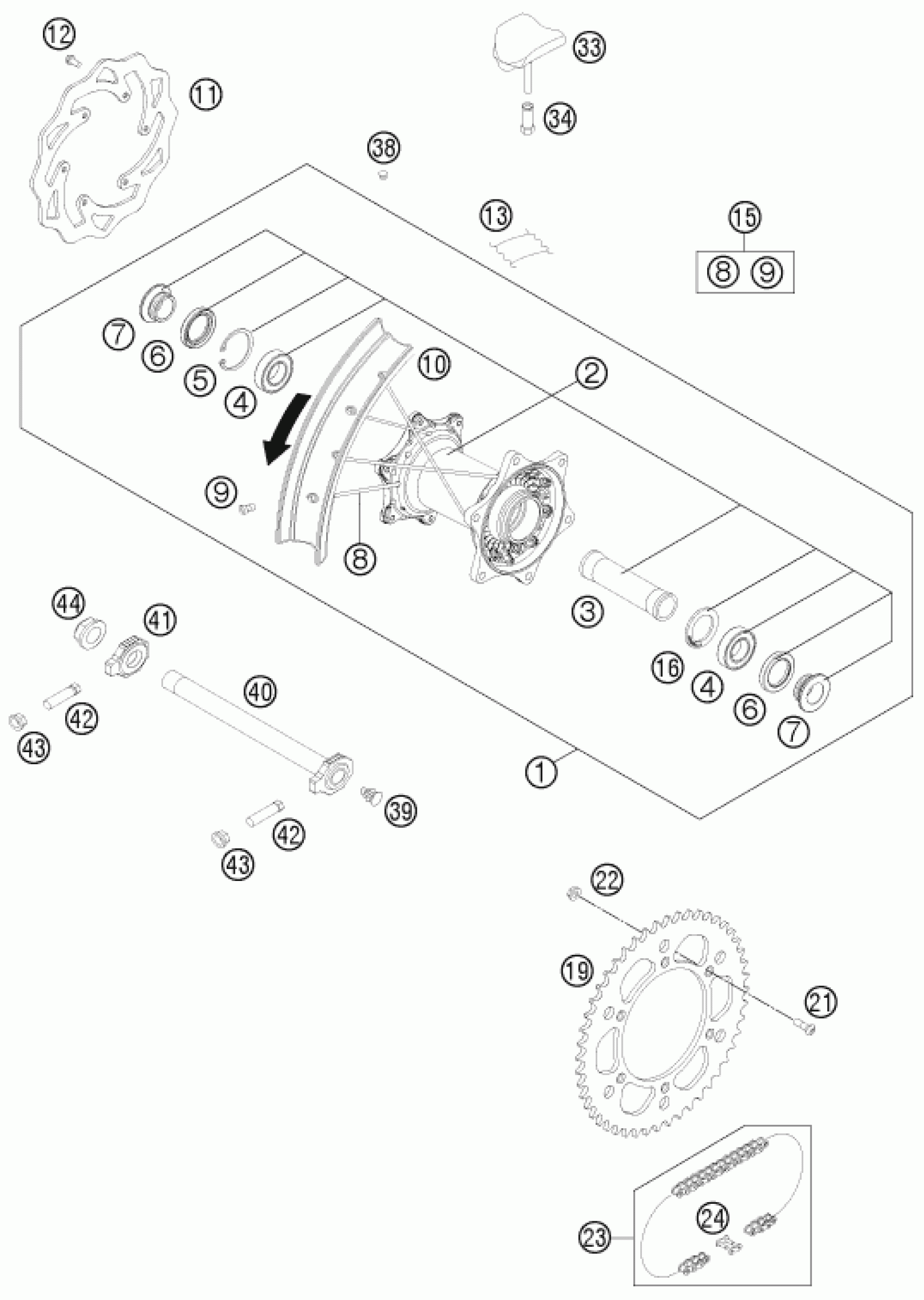

KTM 450 SX-F FACT.REPL. 2012 REAR WHEEL Diagram

#

Description
Price

15

SPOKE KIT REAR ''19''

00050000917

Unavailable

6

Radial shaft seal 32X47X7 BSL

0760324771

Unavailable

8

SPOKE M4,5x205-19'' 11

77110071205

Unavailable

9

Spoke nipple M4.5 AL

77109072000

Unavailable

2

REAR WHEEL HUB CPL. 2013

78010010244

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

10

RIM 2,15''X19'' EXCEL SXS

7731007000030

Unavailable

11

BRAKE DISC REAR 220

77310060000

Unavailable

13

Tube protector 18" and 19"

50310073200

Unavailable

3

BEARING DISTANCE TUBE 121,5MM

77710011000

Unavailable

4

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

24

Connecting link for 5031016511

50310166000

Unavailable

34

NUT FOR WHEEL HOLDER

77110090050

Unavailable

44

Collar nut M25X1.5 WS=32 05

61010086000

Unavailable

42

screw M10x1.25x50 WS10

50304040100

Unavailable

39

Plug SFL16

50210086000

Unavailable

40

WHEEL SPINDLE CPL. '13

77710085044

Unavailable

19

REAR SPROCKET 51T ORANGE

5901005105104

Unavailable

19

REAR SPROCKET 52T ORANGE

5901005105204

Unavailable

16

DISTANCE RING

77710015000

Unavailable

19

REAR SPROCKET 45T ORANGE

5901005104504

Unavailable

19

REAR SPROCKET 48T ORANGE

5901005104804

Unavailable

23

CHAIN 5/8X1/4'' MX

50310165118

Unavailable

1

REAR WHEEL CPL. 2,15X19'' FACT

7711000114430

Unavailable

7

DISTANCE BUSHING REAR WHEEL

77710016000

Unavailable

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

Unavailable

33

RIM LOCK 2,15''

78110090000

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

41

CHAIN TENSIONER R/S

77710084000

Unavailable

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

19

REAR SPROCKET 42T ORANGE

5901005104204

Unavailable

19

REAR SPROCKET 50T ORANGE

5901005105004

Unavailable

19

REAR SPROCKET 49T ORANGE

5901005104904

Unavailable
