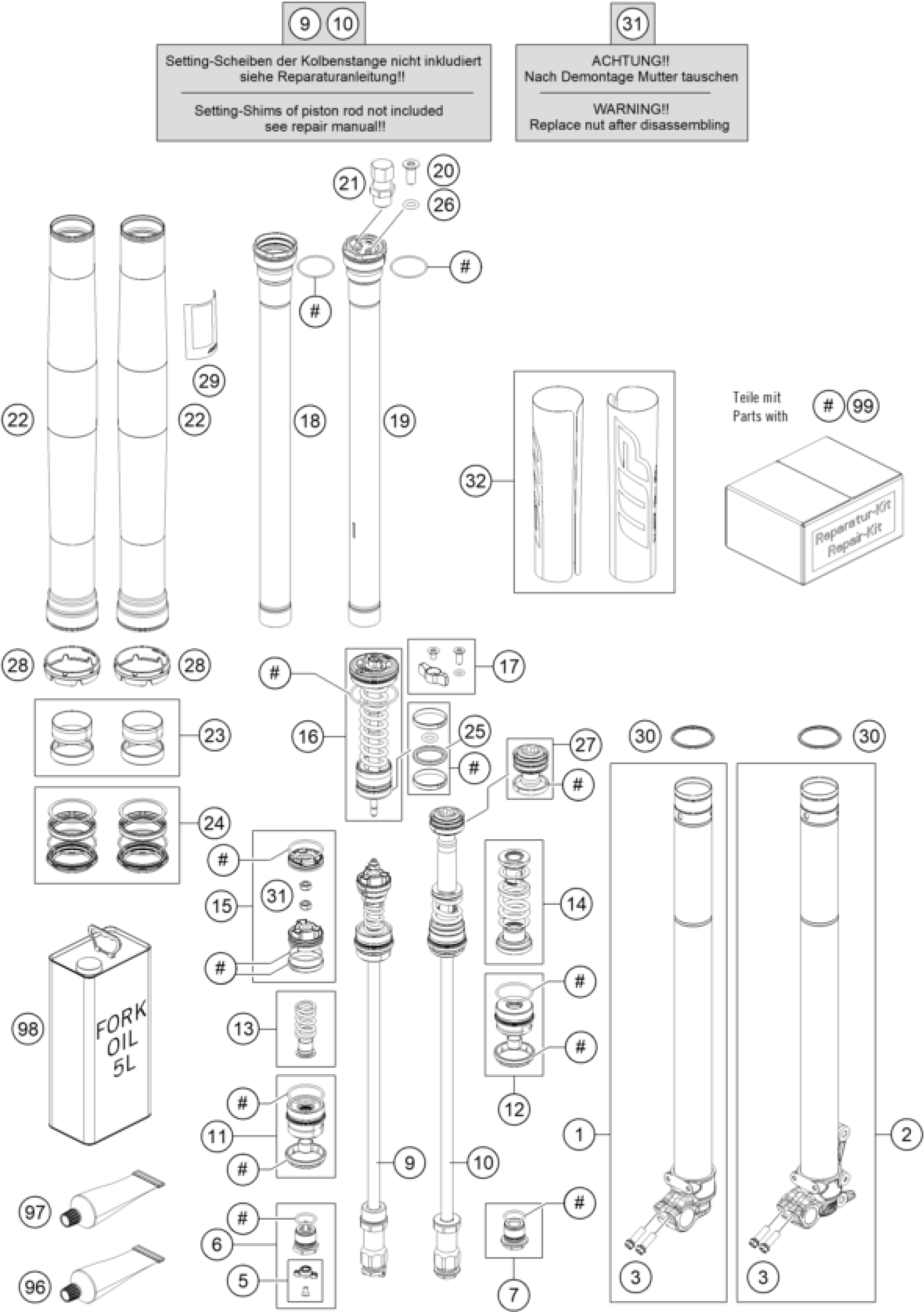

KTM 450 SX-F 2021 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axle clamp ri. with inner tube

48602046S2

Unavailable

2

Axle clamp le. with inner tube

48602045S2

Unavailable

3

HH collar screw M8x25

0025080256

Unavailable

5

Repair kit adjuster rebound re

RP10033T

Unavailable

6

adjuster housing M20x1 cpl.

48602052S

Unavailable

7

HH collar screw M20x1x18 cpl.

48601533S

Unavailable

10

piston rod 12x470 cpl.

48601501S2

Unavailable

11

Screw sleeve M35,5x0,8 cpl

48602131S2

Unavailable

12

Screw sleeve M35,5x0,8 cpl.

48602138S2

Unavailable

13

Spring (13,9) 37-32 rebound cp

48600578S

Unavailable

14

Spring (22) 60-30 rebound cpl.

48601820S

Unavailable

15

Repair kit piston air fork

RP10035T

Unavailable

16

Basevalve cpl.

48602049S2

Unavailable

17

adjuster kit screw cap compres

RP10029

Unavailable

18

screw cap M51x1,5 cpl.

48602048S1

Unavailable

19

screw cap M51x1,5 cpl.

48602047S2

Unavailable

20

ISA countersunk head screw M4x

00600003

Unavailable

21

Schrader valve M8x1 cmpl.

48601494S

Unavailable

22

fork outer tube 49.13x577 dt54

48602096

Unavailable

23

Guide bushing set fork 48mm

R14047

Unavailable

24

Sealkit 48mm SKF black

RP10012

Unavailable

25

X-ring 26,57x3,53 FKM80

04100002

Unavailable

26

O-ring 4x1,5 NBR70

50180222

Unavailable

27

Piston 33,6x35,4 cpl.

48602135S

Unavailable

28

Fork protection ring 60,1mm

48601948

Unavailable

29

sticker "warning"

52000248

Unavailable

30

Stroke indicator 48mm red

48602007

Unavailable

32

Sticker set XACT 5 AER CC 182.

52000235SET

Unavailable

31

Nut M6 h5,4 SW10

48602128

Unavailable

96

Fuchs grease IPR (250g)

T14034

Unavailable

97

special grease AER Fork 400g

00062010053

Unavailable

98

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

99

Gasket kit air fork

RP10034T

Unavailable

9

Pistonrod D12 M9x1 L385 cpl.

S501200001S0100

Unavailable
