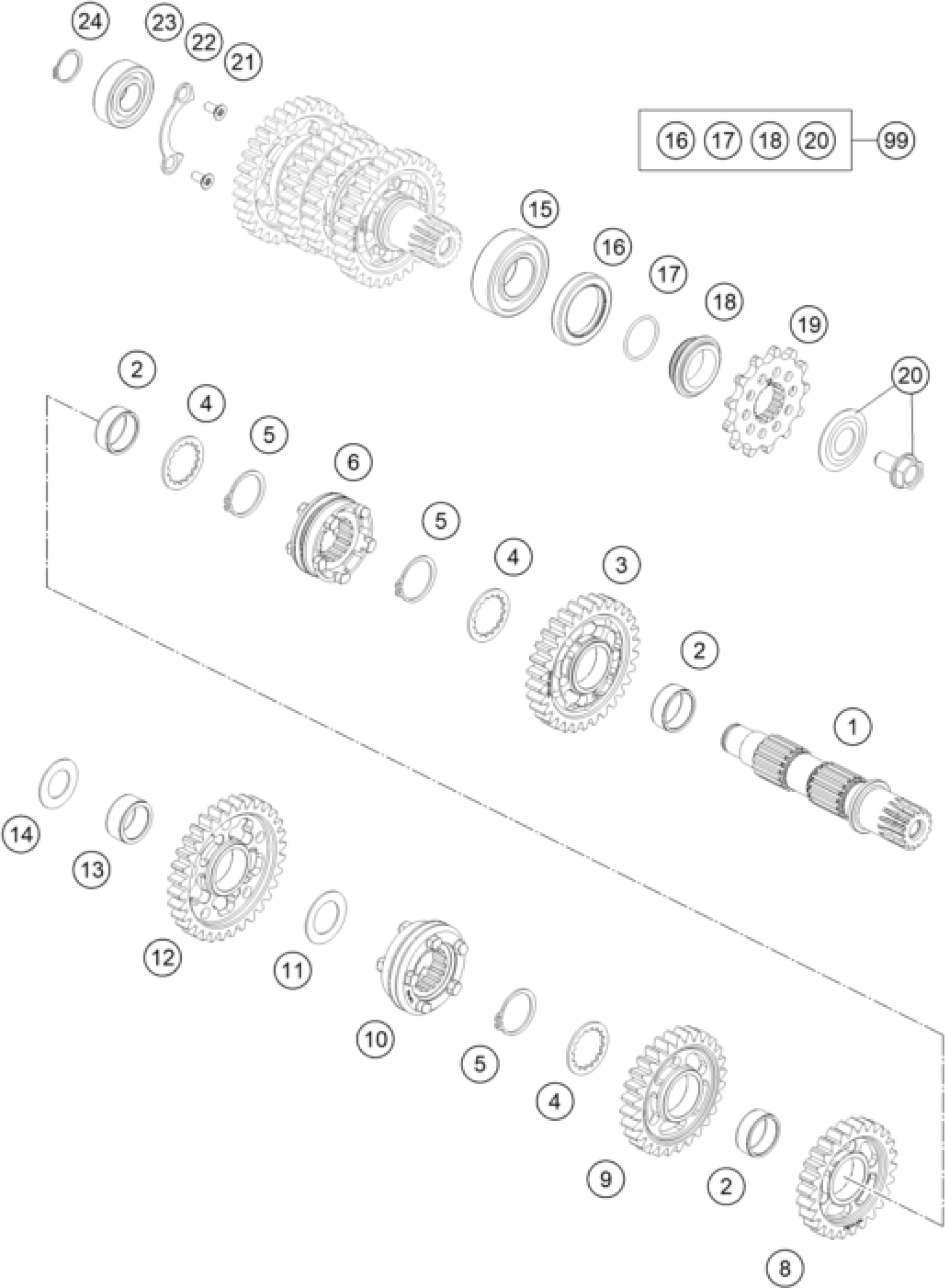

KTM 450 SX-F 2020 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

Output shaft

79533010000

Unavailable

2

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

Unavailable

3

idler gear 2 nd.

79533012000

Unavailable

4

thrust wahser

79533034000

Unavailable

5

CIRCLIP SW25

0417025000

Unavailable

6

Sliding clutch

79533017000

Unavailable

8

idler gear 4 th.

79533014000

Unavailable

9

idler gear 3 rd.

79533013000

Unavailable

10

Shift collar

79533018000

Unavailable

11

Shim 20x31.9x1

59033080000

Unavailable

12

idler gear 1st

79533011000

Unavailable

13

NEEDLE BEARING K 20X26X12

0405202612

Unavailable

14

STOP DISC 17,2X30X1

56033030000

Unavailable

15

cylindrical roller bearing NJ2

49030023000

Unavailable

16

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

17

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

18

SPACER SLEEVE COUNTER

78133014000

Unavailable

19

Sprocket 13-t

79233029013

Unavailable

19

Sprocket 14-t

79233029014

Unavailable

20

SCREW 10.9+SPRING WASHER

59033034044

Unavailable

21

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

22

TAB WASHER BEARING COUNT.SHAFT

78033132000

Unavailable

23

BALL BEARING 6203 JR2 C3

0625062035

Unavailable

24

CIRCLIP DIN 0471-17X1, 5

0471170015

Unavailable

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable
