EXHAUST SYSTEM

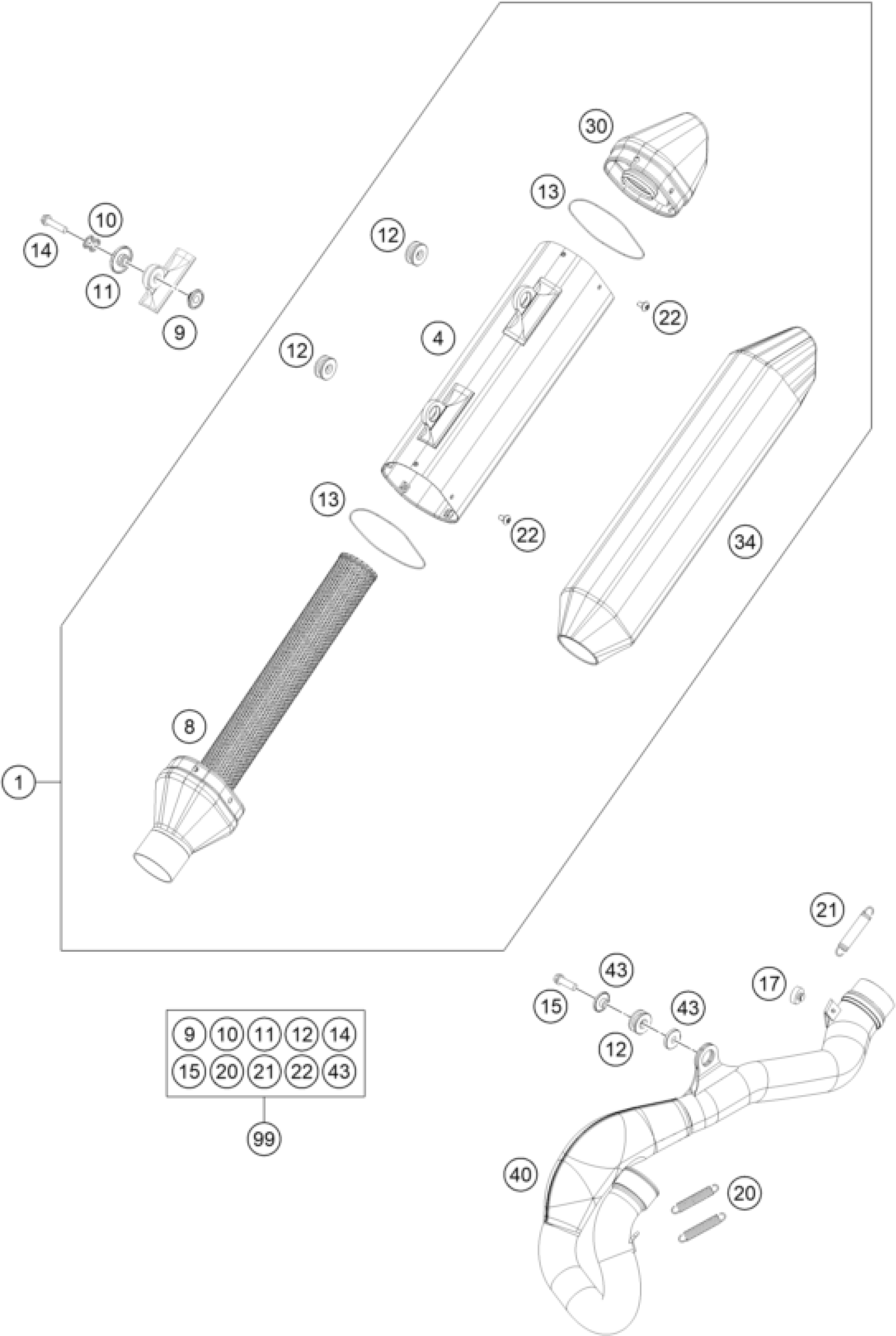

KTM 450 SX-F 2017 EXHAUST SYSTEM Diagram
#
Description
Price
1
SILENCER
79005079000
Unavailable
15
HH collar screw M8x35 TX40
0025080356
Unavailable
8
CONNECTING CAP CPL.
79005079050
Unavailable
9
BUSHING 7.5x12x20x8.2 11
77205069000
Unavailable
10
Pair of washers M6 NORDLOCK
50233041000
Unavailable
11
BUSHING 7.5x12x28x8.3 11
77205169000
Unavailable
12
DAMP. COMPON. BLACK
77205068000
Unavailable
13
O-RING 74,00X1,50 FKM 75SH
0770740015
Unavailable
14
HH collar screw M6x35 TX30
0025060356
Unavailable
20
TEN.SPRING L=62MM EY.MOVEABLE
50305016000
Unavailable
21
TEN.SPRING L=75MM EY.MOVEABLE
50305116000
Unavailable
22
SCREW TORX M5X10
78105081010
Unavailable
30
ENDCAP CPL.
77705079060
Unavailable
40
EXHAUST PIPE SX
79405007100
Unavailable
43
BUSHING 8.5x12x28x8.3
77805069000
Unavailable
99
EXHAUST PARTS KIT
00050000819
Unavailable
4
SILENCER HOUSING
79005079080
Unavailable
34
ROCKWOOL PREFORMED
79005078590
Unavailable
17
RUBBER BUFFER
54308042000
Unavailable
