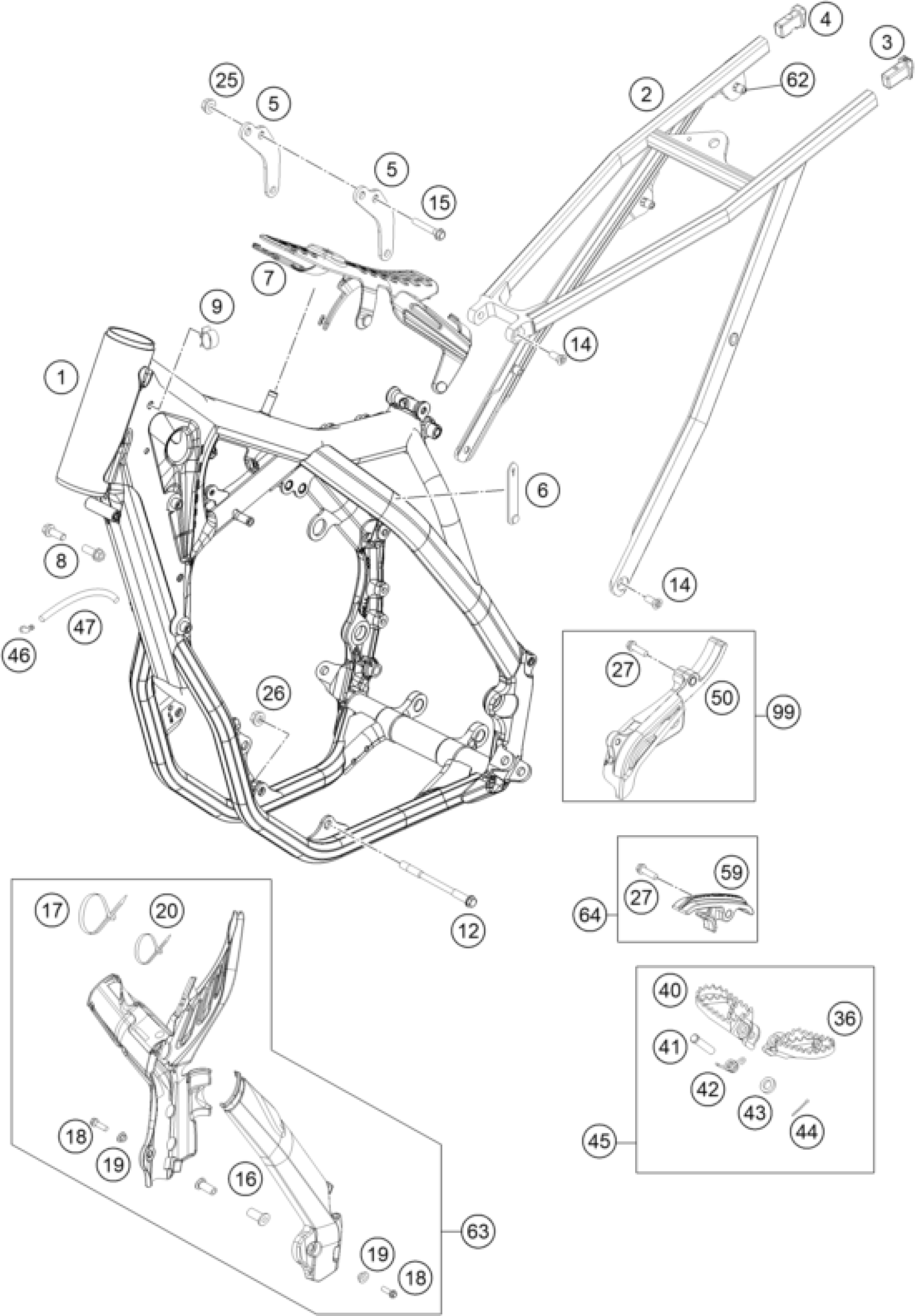

KTM 450 SX-F 2015 FRAME Diagram
#
1
FRAME ORANGE ''789N3'' 201
7890300120004
Unavailable
2
SUB FRAME SX
77203002000
Unavailable
3
SUB FRAME APPLICATION LEFT
78103002010
Unavailable
4
SUB FRAME APPLICATION RIGHT
78103002020
Unavailable
5
REINFORCING
78903013000
Unavailable
6
RUBBER CABLE TIE 75MM 03
60011093075
Unavailable
7
TANK REST RUBBER
77207012000
Unavailable
8
HH collar screw M8x16 TX40 SL
0025080166S
Unavailable
9
WIRING HOLDER 16MM
57013072100
Unavailable
12
Enginebrac. screw M10X123 WS=1
59003013000
Unavailable
14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
Unavailable
15
HH COLLAR SCREW M8X44 WS13
56530079000S
Unavailable
16
BLIND PLUG-IN NUT M5 WN 22A 03
54803092050
Unavailable
17
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
18
COU.SUNK SCR. AH ISO7380 M5X25
0738050250
Unavailable
19
Bush f. frame protection 03
54803092060
Unavailable
20
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
25
Hex. nut DIN EN 1661 M8 WS13
06923080003
Unavailable
26
SELF LOCKING NUT M10 CU WS=14
54310086100
Unavailable
27
HH collar screw M8x30
0025080306
Unavailable
36
FOOTREST L/S 08
78003040050
Unavailable
40
FOOTREST R/S 08
78003041050
Unavailable
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
42
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
43
washer DIN 125 A 10.5
0125100003
Unavailable
44
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
45
FOOTPEG L.+R. CPL. 03
5030314013390
Unavailable
46
ANGLE PIECE '97
50303089000
Unavailable
47
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
50
CHAIN GUARD 450/500 EXC 12
78103096000
Unavailable
59
CHAIN SLIDER LOWER PART CPL.
77203053000
Unavailable
62
BLIND RIVET NUT EM6-60LF/HX
77303139000
Unavailable
63
PLASTIC FRAME PROTECTION SET
77203094000
Unavailable
64
CHAIN SLIDING KIT BELOW CPL.11
77203053010
Unavailable
99
SPROCKET COVER KIT
78103096010
Unavailable
