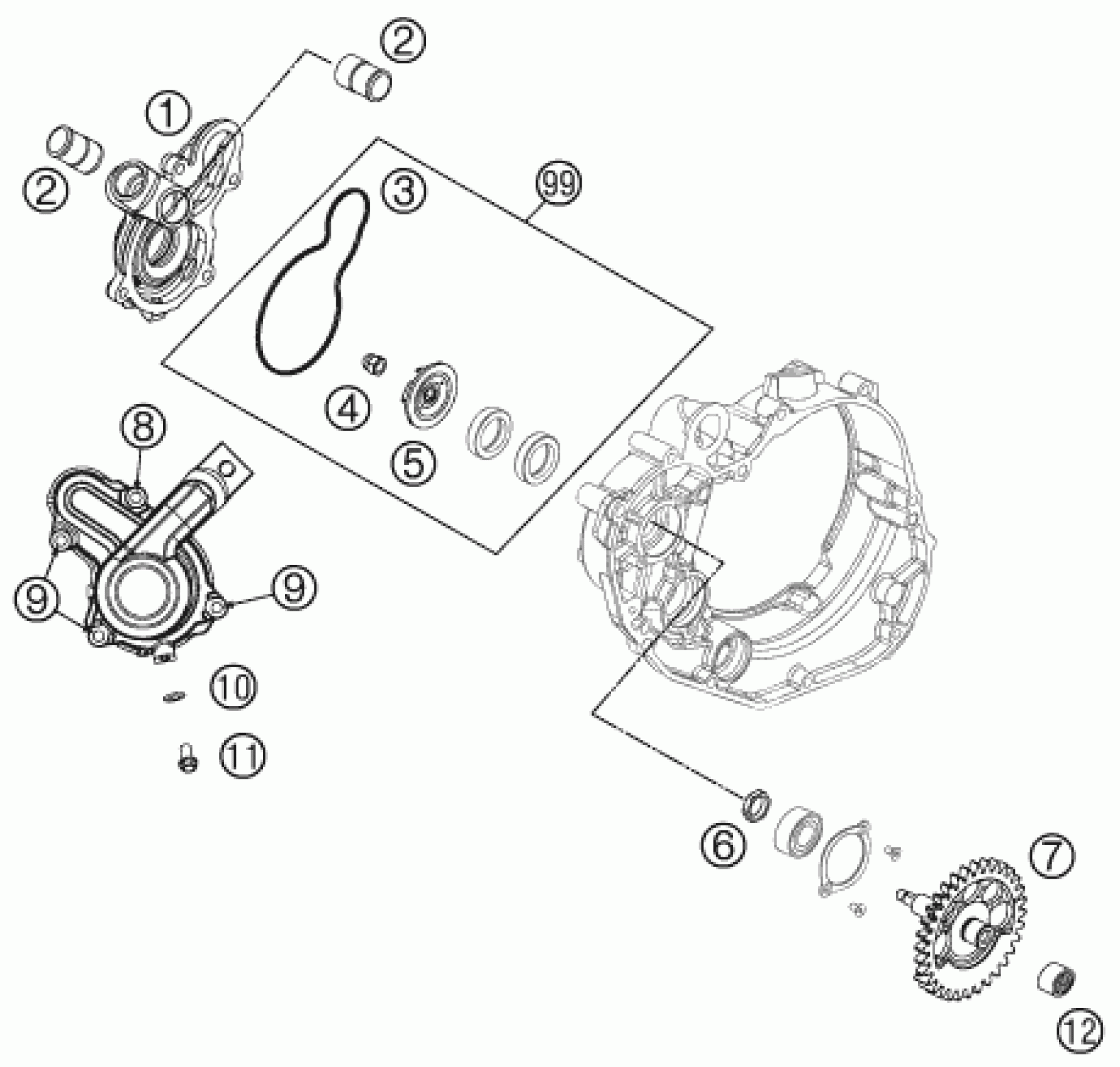

KTM 450 SX-F 2012 WATER PUMP Diagram

#

Description
Price

99

WATER PUMP REP. KIT 07-12

77335055010

Unavailable

1

WATER-PUMP COVER 09

7733505210015

Unavailable

2

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

3

WATER-PUMP GASKET 06

77335053000

Unavailable

4

CAP NUT M6 STAINLESS STEEL

61230045000

Unavailable

5

WATER-PUMP WHEEL 07

77335055100

Unavailable

6

NUT M14 X 1 FOR BALANCER . 06

77330056050

Unavailable

7

BALANCER GEAR KS 32-T 07

77330056200

Unavailable

8

HH collar screw M6x55 TX30

0025060556

Unavailable

9

HH collar screw M6x16 TX30

0025060166

Unavailable

10

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

11

HH collar screw M6x10 TX30

0025060106

Unavailable

12

NEEDLE BEARING RNA 4900

77335050050

Unavailable
