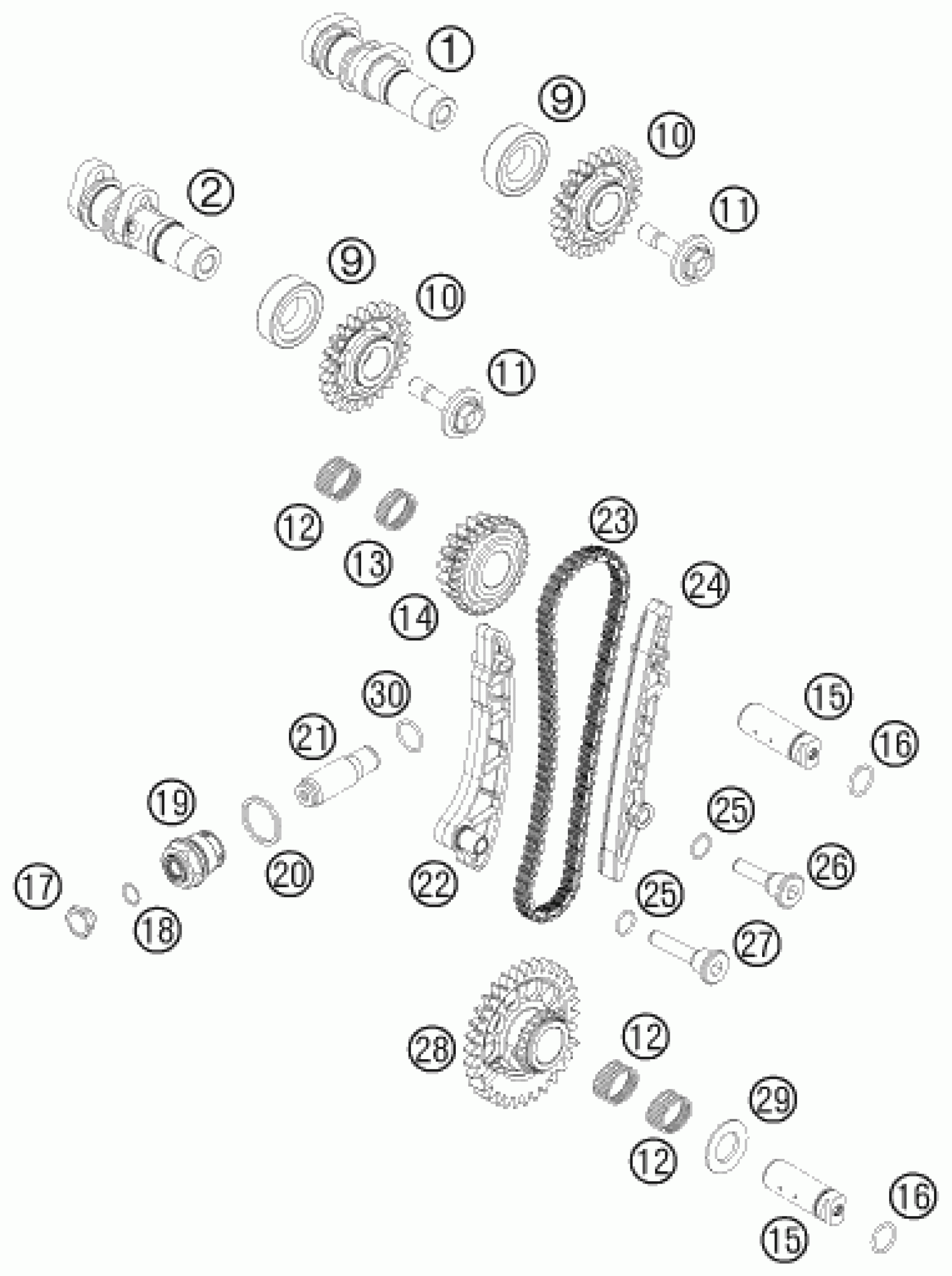

KTM 450 SX-F 2012 TIMING DRIVE Diagram

#

Description
Price

1

CAMSHAFT INTAKE

77336009300

Unavailable

2

CAMSHAFT EXHAUST CPL.

77336010444

Unavailable

9

CYL.ROLL BEARING RNU203ETVP2

0402174012

Unavailable

10

CAMSHAFT GEAR 07

77336011000

Unavailable

11

SCREW MW M10-1,0X38

77336076100

Unavailable

12

NEEDLE BEAR K 18X22X13

0405182213

Unavailable

13

NEEDLE BEARING K 18X22X10 02

0405182210

Unavailable

14

DOUBLE GEAR W.CPL. Z18/Z30 07

77336070177

Unavailable

15

AXLE FOR TIMING VALVE 06

77336075100

Unavailable

16

O-RING 15,00X1,80

0770015018

Unavailable

17

HOLDING BOLT

77336008010

Unavailable

18

o-ring 10.00x1.00 NBR70

0770010010

Unavailable

19

HOLDING BOLT M24X1,5

77336008000

Unavailable

20

CU SEAL-RING DIN7603 A24X29X2

0603242920

Unavailable

21

CHAIN ADJUSTER HYD. 05

77036003000

Unavailable

22

TENSIONER RAIL CPL. 07

77336002177

Unavailable

23

TIMING CHAIN 07

77336013100

Unavailable

24

GUIDE RAIL 07

77336001100

Unavailable

25

O-RING 12,00X1,50 NBR

0770012015

Unavailable

26

BUSHING SCREW

77336091000

Unavailable

27

BUSHING SCREW

77336091100

Unavailable

28

BALANCER GEAR

77330057200

Unavailable

29

STOP DISC 18/32/1,4/2,7

77330058000

Unavailable

30

o-ring 18.00x2.00 NBR70

0770180020

Unavailable
