IGNITION SYSTEM

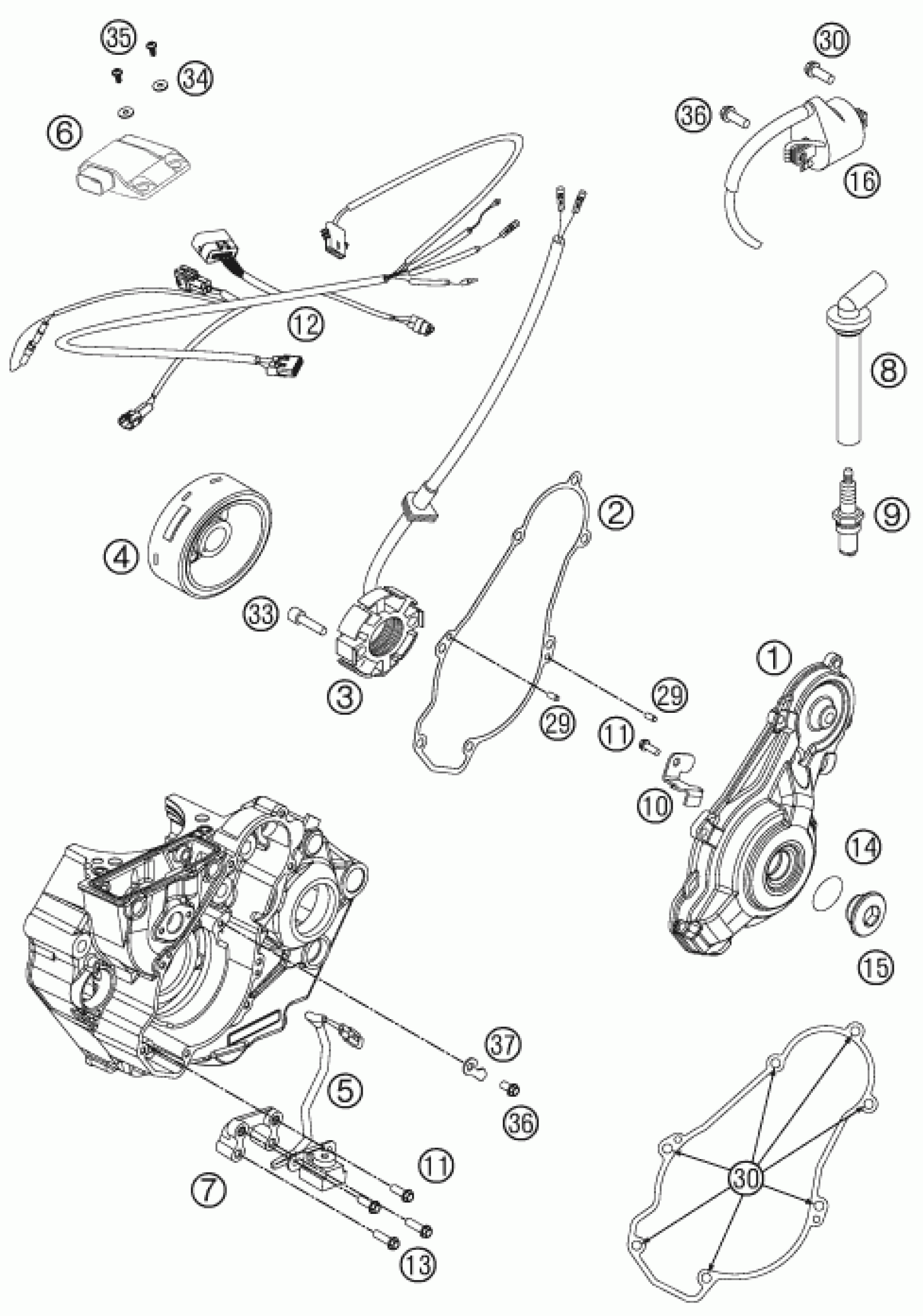

KTM 450 SX-F 2012 IGNITION SYSTEM Diagram
#
Description
Price
34
washer DIN 9021 A - 5.3
0021050003
Unavailable
1
IGNITION COVER 09
7733000210015
Unavailable
2
IGNITION COVER GASKET
77330040100
Unavailable
3
STATOR SX 06
77339004000
Unavailable
4
FLYWHEEL 05
77039005000
Unavailable
5
PULSER COIL KOKUSAN ''PU5165''
77339034000
Unavailable
6
CDI UNIT KOKUSAN 450 SX-F 07
77339031000
Unavailable
7
ADAPTER PULSER COIL
77339035100
Unavailable
8
SPARK PLUG
77339090000
Unavailable
9
SPARK PLUG NGK CR9EKB ´05
77039093000
Unavailable
10
WIRE RETAINING BRACKET
77330002050
Unavailable
11
HH collar screw M5x10 TX30
0025050106
Unavailable
12
WIRING HARNESS FOR CDI-BOX
77339532000
Unavailable
13
HH COLLAR SCREW M5X25 ISA30
0025050256
Unavailable
14
o-ring 22.00X2.00 NBR70
0770220020
Unavailable
15
threaded plug M24x1.5 PA 6.6
6003009400030
Unavailable
16
IGNITIONCOIL ''IG5128''
59039006000
Unavailable
29
Needle roll.DIN5402 NRB 4X9.8
0402040980
Unavailable
30
HH collar screw M6x20 TX30
0025060206
Unavailable
33
AH SCREW DIN0912-M 5X25
0912050253
Unavailable
35
EJOT PT screw K50x12
0081050121
Unavailable
36
HH collar screw M6x16 TX30
0025060166
Unavailable
37
RETAINING PLATE F.PICKUPCABEL
77340097100
Unavailable
