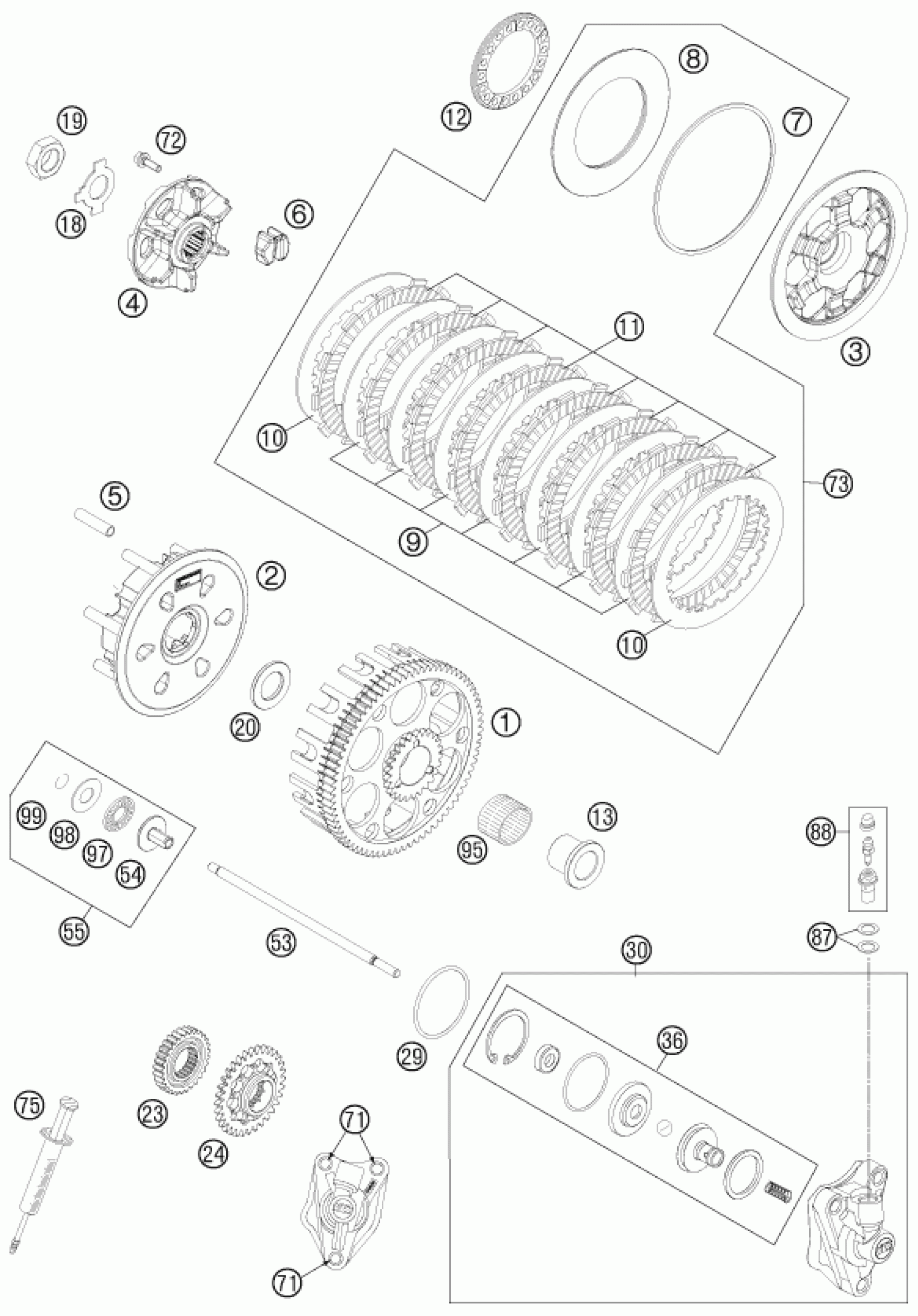

KTM 450 SX-F 2012 CLUTCH Diagram
#
4
HUB
78132002111
Unavailable
5
SLEEVE 7,5X33.4
78132004000
Unavailable
6
DAMPING RUBBER
78132025100
Unavailable
7
WASHER 112X118X1.5
78132013000
Unavailable
8
BELLEVILLE SPRING 71X115X1,5 I
78132005000
Unavailable
12
SPRING RING
78132006100
Unavailable
72
HH collar screw M5x16 TX30
0025050166
Unavailable
10
INTERMEDIATE DISC 1MM 2002
59032010100
Unavailable
1
OUTER CLUTCH CPL.
77332001174
Unavailable
2
INNER CLUTCH HUB
78132002008
Unavailable
3
PRESSURE PLATE
77332103000
Unavailable
9
INTERMEDIATE DISC 1,4MM 2002
59032010200
Unavailable
11
LINING DISC 2MM 04
59032011100
Unavailable
13
INNER RING
77332015100
Unavailable
18
LOCK WASHER
56532018000
Unavailable
19
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
Unavailable
20
WASHER 21,8 X 37 X 3
77232009100
Unavailable
23
PRIMARY GEAR
77332023129
Unavailable
24
DRIVE WHEEL AGZR KS Z=32
77330055110
Unavailable
29
O-RING 38,00X2,00 NBR 70 SH
0770380020
Unavailable
30
OUTPUT CYLINDER CPL.
77332061044
Unavailable
36
PISTON CPL.
77332066000
Unavailable
53
PUSH ROD 07
77332054100
Unavailable
54
PRESSURE PIECE
77332057100
Unavailable
55
PRESSURE PIECE CPL.
77332057144
Unavailable
71
HH collar screw M6x25 TX30
0025060256
Unavailable
73
CLUTCH KIT 450 SX-F/EXC 12
78132011110
Unavailable
75
VENT INJEKTION HYDR. CLUTCH
50329050000
Unavailable
87
CU-SEAL RING DIN7603-10X16X1
42013226000
Unavailable
88
BLEEDER SCREW CPL. 05
62513020000
Unavailable
95
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
Unavailable
97
AXIAL NEEDLE BEARING AXK 1226
54637097200
Unavailable
98
AXIAL WASHER AS1226 12X26X1
54637098200
Unavailable
99
CIRCLIP DIN7993-RW12
0993012000
Unavailable
