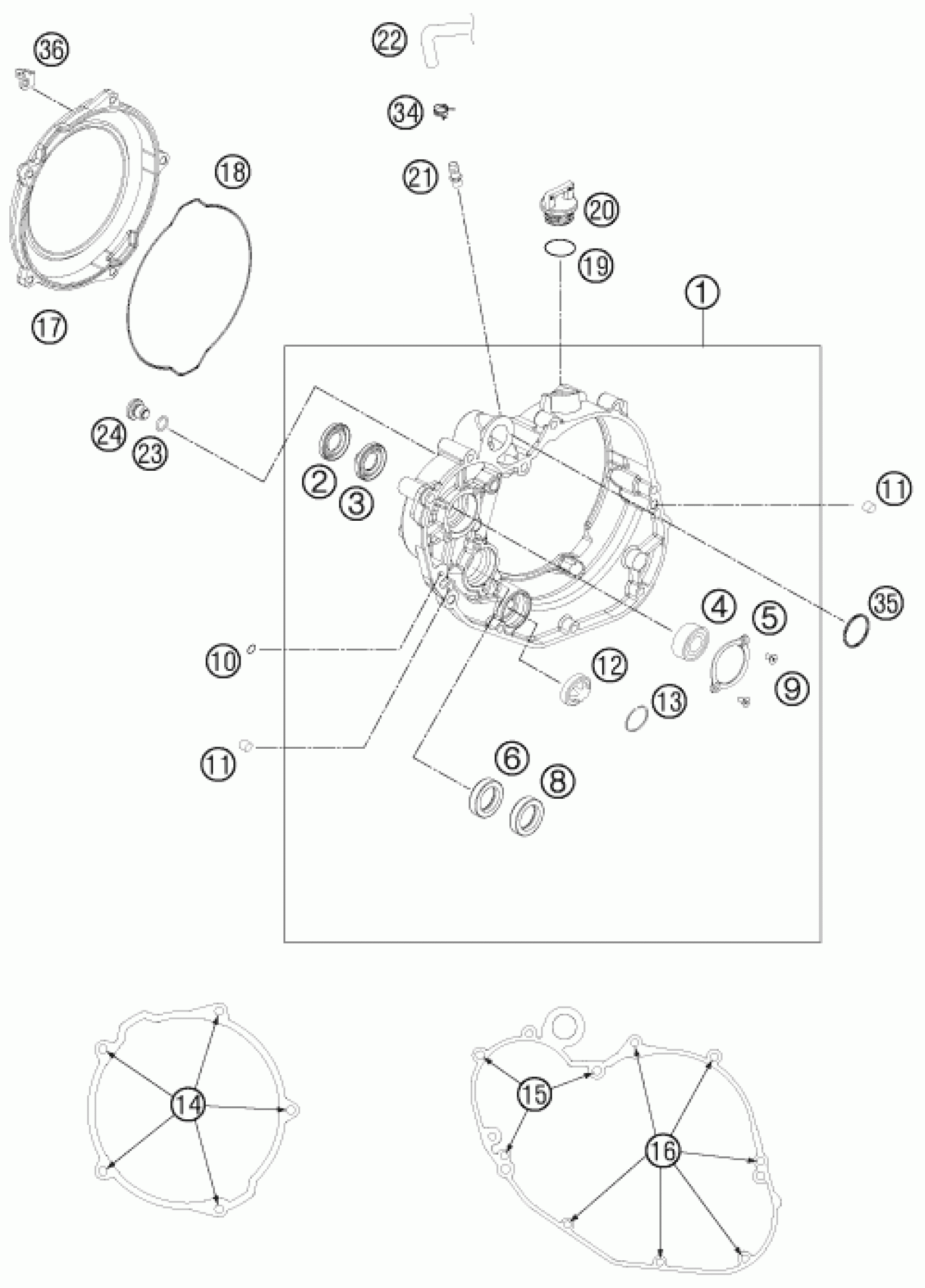

KTM 450 SX-F 2012 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER CPL.

7733000124415

Unavailable

2

SHAFT SEAL RING 12x24x4

77335057000

Unavailable

3

SHAFT SEAL RING 12x24x4/5,5

77335056000

Unavailable

4

BALL BEARING 6202 C0 2

0625062022

Unavailable

5

RETAINING PLATE FOR WAPUSTOCK

77335064100

Unavailable

6

SHAFT SEAL RING 20X30X7

0760203071

Unavailable

8

SHAFT SEAL RING 25x35x7 BSL VI

0760253574

Unavailable

9

INT TORX FLAT HEAD M 5X10 8.8

0019050103

Unavailable

10

O-RING 8,00X1,5 NBR 70

0770080015

Unavailable

11

CYLINDER ROLLER ZRO. 8,0X12 M4

0402080120

Unavailable

12

OIL LEVEL GLASS

59030019100

Unavailable

13

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

14

HH collar screw M6x20 TX30

0025060206

Unavailable

15

SCREW M7-1,0X45

77330067145

Unavailable

16

HH collar screw M6x30 TX30

0025060306

Unavailable

17

CLUTCH COVER OUTSIDE 09

7733002620015

Unavailable

18

CLUTCH CASE GASKET

77330027000

Unavailable

24

SCREW PLUG

77336056095

Unavailable

23

O-RING 9x1,5 V80 SH

07700900151

Unavailable

19

O-RING 19,00X3,00 NBR

0770191015

Unavailable

20

oil plug cpl. M24x3

58030020100

Unavailable

21

BLEEDER FLANGE M12X1,5 WS=13

59030022100

Unavailable

22

ENGINE BREATHER TUBE

77330086100

Unavailable

34

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

35

QUAD-RING 28,3X1,78 VITON

77335005000

Unavailable

36

SPRING BRACKET

77303026054

Unavailable
