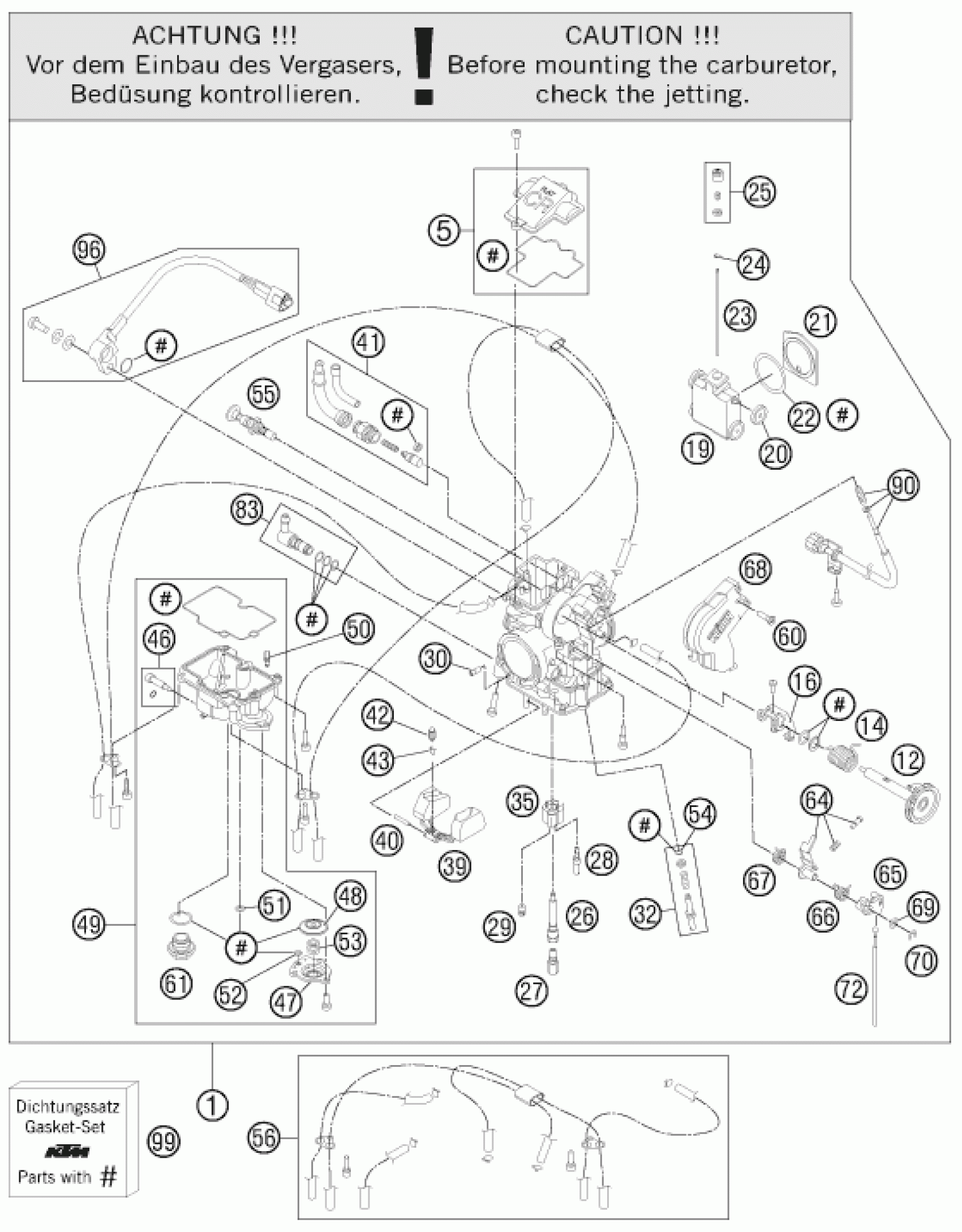

KTM 450 SX-F 2012 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR FCR-MX 4125M ,TPS

77331001200

Unavailable

5

CARBURETOR COVER WITH GASKET

57331027044

Unavailable

12

THROTTLE SHAFT CPL. 06

57331046100

Unavailable

14

COIL SPRING THROTTLE SHAFT

57331046050

Unavailable

16

LINK ARM THROTTLE VALVE CPL.07

76231035051

Unavailable

19

THROTTLE VALVE CPL. FCRMX 2007

57331035100

Unavailable

20

BUSHING THROTTLE VALVE

59031035050

Unavailable

21

GASKET PLATE THROTTLE VALVE 04

57331035153

Unavailable

22

GASKET WASHER THROTTLE VALVE

59031035052

Unavailable

23

JET NEEDLE KEIHIN OBDTM

59031021000

Unavailable

23

JET NEEDLE KEIHIN OBDTN

59031034000

Unavailable

23

JET NEEDLE KEIHIN OBDTP

59031034400

Unavailable

23

JET NEEDLE KEIHIN OBDTQ

59031034500

Unavailable

23

JET NEEDLE KEIHIN OBDTR

59031034600

Unavailable

24

BAR CLIP

59031029000

Unavailable

25

NEEDLE SET SCREW CPL.

57331032000

Unavailable

26

NEEDLE JET FCR-MX

59031121000

Unavailable

27

MAIN JET 180 KEIHIN

54531623180

Unavailable

27

MAIN JET 182 KEIHIN

54531623182

Unavailable

27

MAIN JET 185 KEIHIN

54531623185

Unavailable

27

MAIN JET 188 KEIHIN

54531623188

Unavailable

27

MAIN JET 190 KEIHIN

54531623190

Unavailable

27

MAIN JET 192 KEIHIN

54531623192

Unavailable

27

MAIN JET 195 KEIHIN

54531623195

Unavailable

28

IDLE JET 40 KEIHIN

54531607040

Unavailable

28

IDLE JET 42 KEIHIN

54531607042

Unavailable

28

IDLE JET 45 KEIHIN

54531607045

Unavailable

29

STARTER JET 85

59031051085

Unavailable

30

IDLE AIR JET 100 KEIHIN

57331107100

Unavailable

32

ADJUST SCREW CPL. FCR-MX

59031017100

Unavailable

35

BUFFER PLATE

57331085000

Unavailable

39

FLOAT CPL.

57331009000

Unavailable

40

ARM PIN FLOAT

57331008000

Unavailable

41

HOT-STARTER VALVE

77031075000

Unavailable

42

FLOAT NEEDLE

54631220000

Unavailable

43

CLAMP

54531621000

Unavailable

46

DRAIN SCREW + O-RING

76231155000

Unavailable

47

COVER ACCELERATOR PUMP

57331060000

Unavailable

48

DIAPHRAGM ACCELERATOR PUMP

57331057100

Unavailable

49

FLOAT CHAMBER CPL. 08

78031011000

Unavailable

50

JET POWER JET CLOSED KEIHIN

54631085000

Unavailable

50

JET POWER JET 40 KEIHIN

54631085040

Unavailable

50

JET POWER JET 50 KEIHIN

54631085050

Unavailable

50

JET POWER JET 60 KEIHIN

54631085060

Unavailable

50

JET POWER JET 70 KEIHIN

54631085070

Unavailable

51

O-RING

59031058100

Unavailable

52

U-RING

59031058000

Unavailable

53

COIL SPRING

59031059000

Unavailable

54

O-RING ADJUSTING SCREW

54831072000

Unavailable

55

STARTER VALVE SHORT CPL.

77031048000

Unavailable

56

BREATH.HOSE FCR-MX KEIHIN CPL.

57331098000

Unavailable

60

FLAT HEAD SCREW DIN0965-M 5X10

0965050103

Unavailable

61

PLUG M 18X1

54531699000

Unavailable

64

INTERMEDIATE LEVER CPL.

57331062000

Unavailable

65

LINK LEVER

57331056000

Unavailable

66

SXS ACCELERATION PUMP SPRING

SXS08250030

Unavailable

67

SPRING INTERMEDIATE LEVER

57331159000

Unavailable

68

CARBURETOR COVER 06

57331038200

Unavailable

69

WASHER LINK LEVER

57331087000

Unavailable

70

E-CLIP

57331084000

Unavailable

72

ROD ACCELERATOR PUMP

57331061000

Unavailable

83

HOSE CONNECTOR CPL.

59031013044

Unavailable

90

STOP SCREW CPL. FCR-MX

57331025000

Unavailable

96

TPS-SENSOR FCRMX 190MM 2006

59031077200

Unavailable

99

GASKET SET FCR-MX KEIHIN

57331099000

Unavailable
