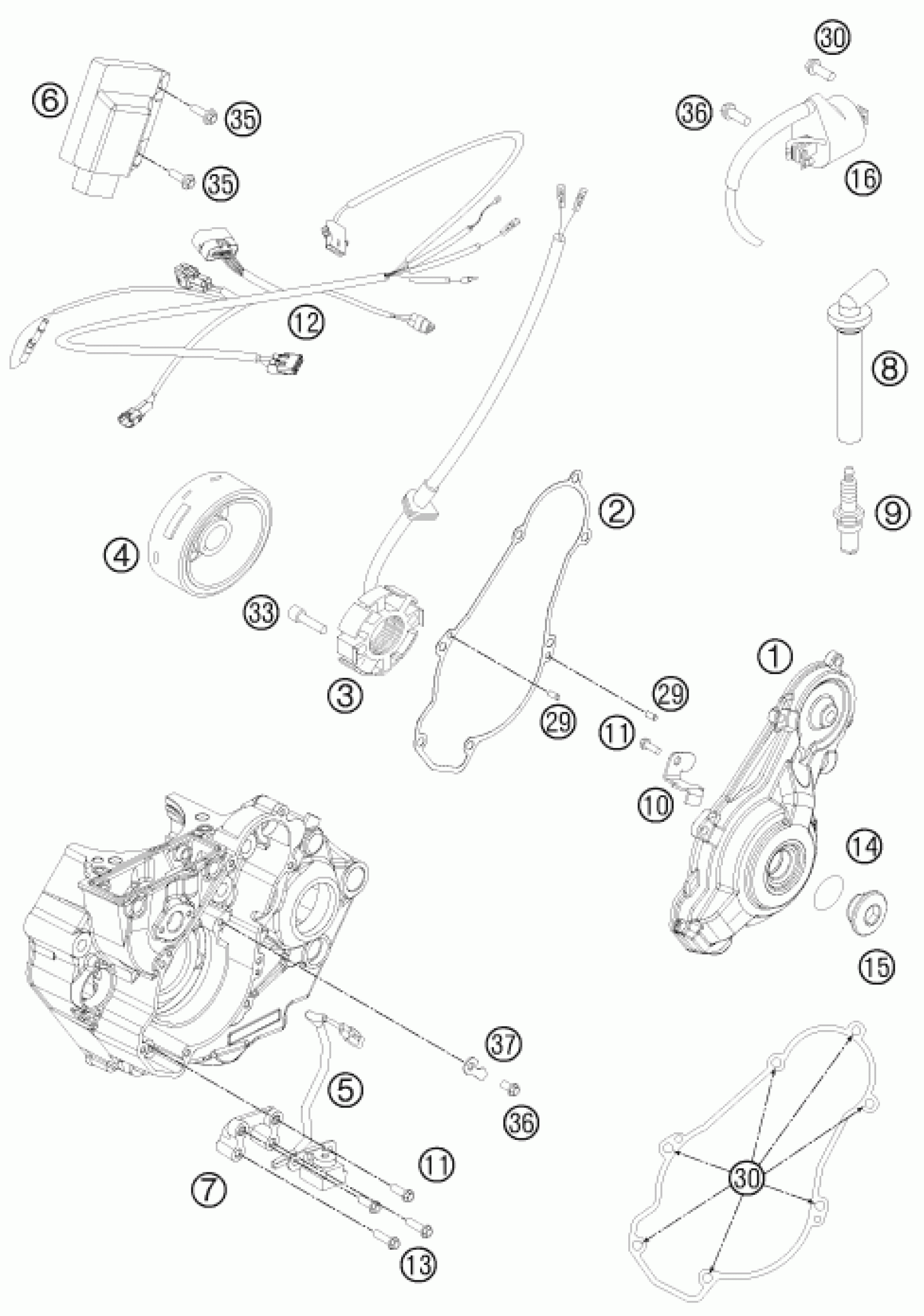

KTM 450 SX-F 2011 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER 09

7733000210015

Unavailable

2

IGNITION COVER GASKET

77330040100

Unavailable

3

STATOR SX 06

77339004000

Unavailable

4

FLYWHEEL 05

77039005000

Unavailable

5

PULSER COIL KOKUSAN ''PU5165''

77339034000

Unavailable

6

CDI UNIT KOKUSAN 450 SX-F 07

77339031000

Unavailable

7

ADAPTER PULSER COIL

77339035100

Unavailable

8

SPARK PLUG

77339090000

Unavailable

9

SPARK PLUG NGK CR9EKB ´05

77039093000

Unavailable

10

WIRE RETAINING BRACKET

77330002050

Unavailable

11

HH collar screw M5x10 TX30

0025050106

Unavailable

12

WIRING HARNESS FOR CDI-BOX

77339532000

Unavailable

13

HH COLLAR SCREW M5X25 ISA30

0025050256

Unavailable

14

o-ring 22.00X2.00 NBR70

0770220020

Unavailable

15

threaded plug M24x1.5 PA 6.6

6003009400030

Unavailable

16

IGNITIONCOIL ''IG5128''

59039006000

Unavailable

29

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

30

HH collar screw M6x20 TX30

0025060206

Unavailable

33

AH SCREW DIN0912-M 5X25

0912050253

Unavailable

35

COLLAR SCREW M6X12 TX

0023060123

Unavailable

36

HH collar screw M6x16 TX30

0025060166

Unavailable

37

RETAINING PLATE F.PICKUPCABEL

77340097100

Unavailable
