Partiron

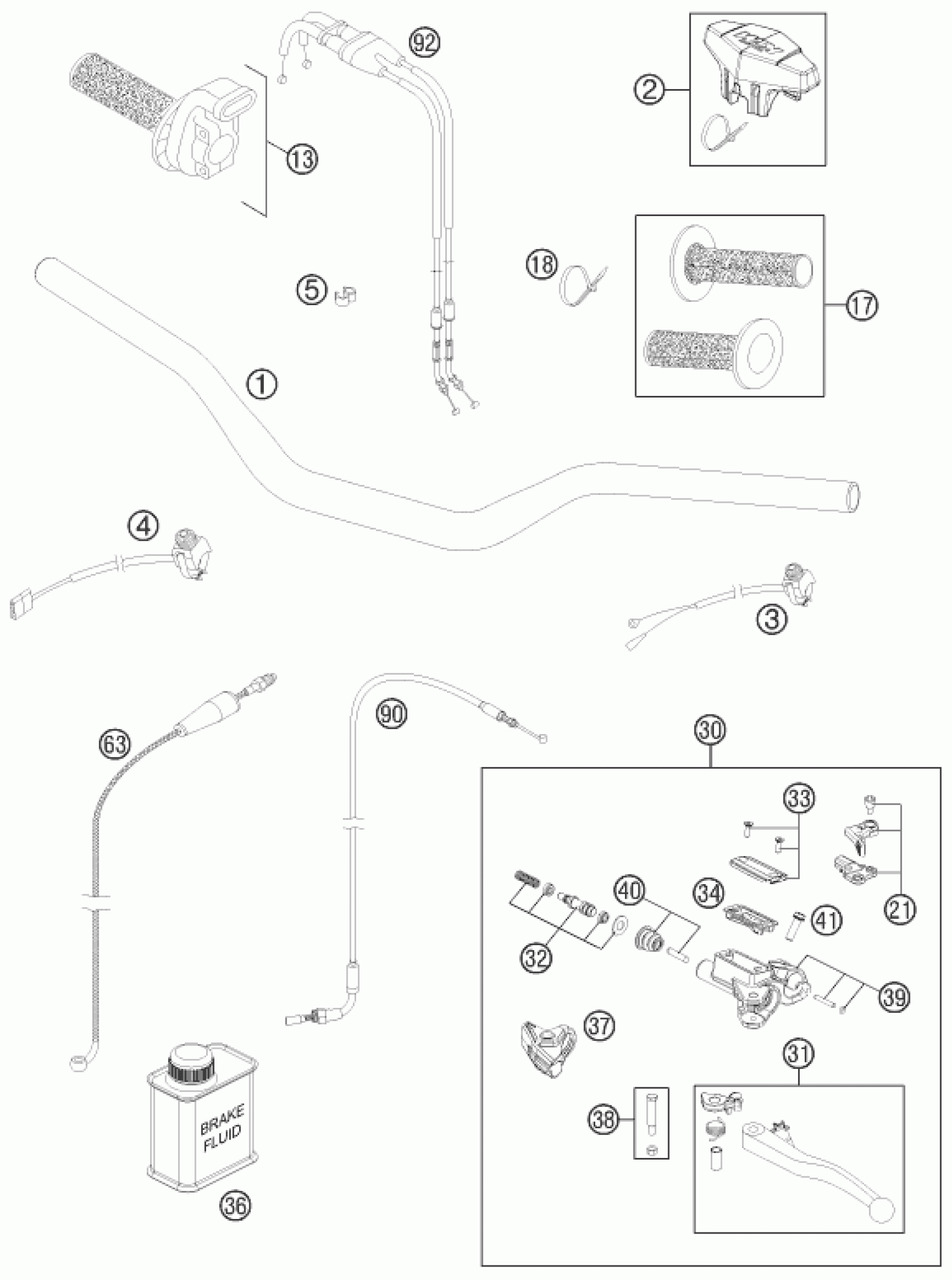

KTM 450 SX-F 2011 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR RENTHAL SX 28MM 08

7730200110017

Unavailable

2

BAR PAD CPL.

77202002100

Unavailable

3

Kill switch

50311089200

Unavailable

4

STARTER CONTROL 04

59411074000

Unavailable

13

THROTTLE GRIP CPL. 4-ST. 09

77002010100

Unavailable

17

GRIP-SET GRAY/ORANGE 09

54802021200

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

21

HOT START LEVER CPL. 09

77302047000

Unavailable

30

MASTER CYLINDER CPL. 10,5MM 09

77302030000

Unavailable

31

CLUTCH LEVER CPL. 2009

50302031300

Unavailable

32

REP.KIT PISTON 10,5MM 09

77302032000

Unavailable

33

COVER HYDR. CLUTCH CPL. 09

50302033200

Unavailable

34

RUBBER FOR RESERVOIR 09

50302034100

Unavailable

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

37

MUD CAP 09

50302037100

Unavailable

38

LEVER SCREW CPL. 09

50302038100

Unavailable

39

CLAMP, CYL. PIN, O-RING

83013005000

Unavailable

40

PUSH ROD CPL. 09

50302046000

Unavailable

41

HH collar screw M6x16 TX30

0025060166

Unavailable

63

CLUTCH PIPE RACING 2003

59032063100

Unavailable

90

HOT START CABLE 05

77002096000

Unavailable

92

THROTTLE CABLE 250 SXF 2005

77002091000

Unavailable

5

CLIP 5/7 MM 06

60111094000

Unavailable
