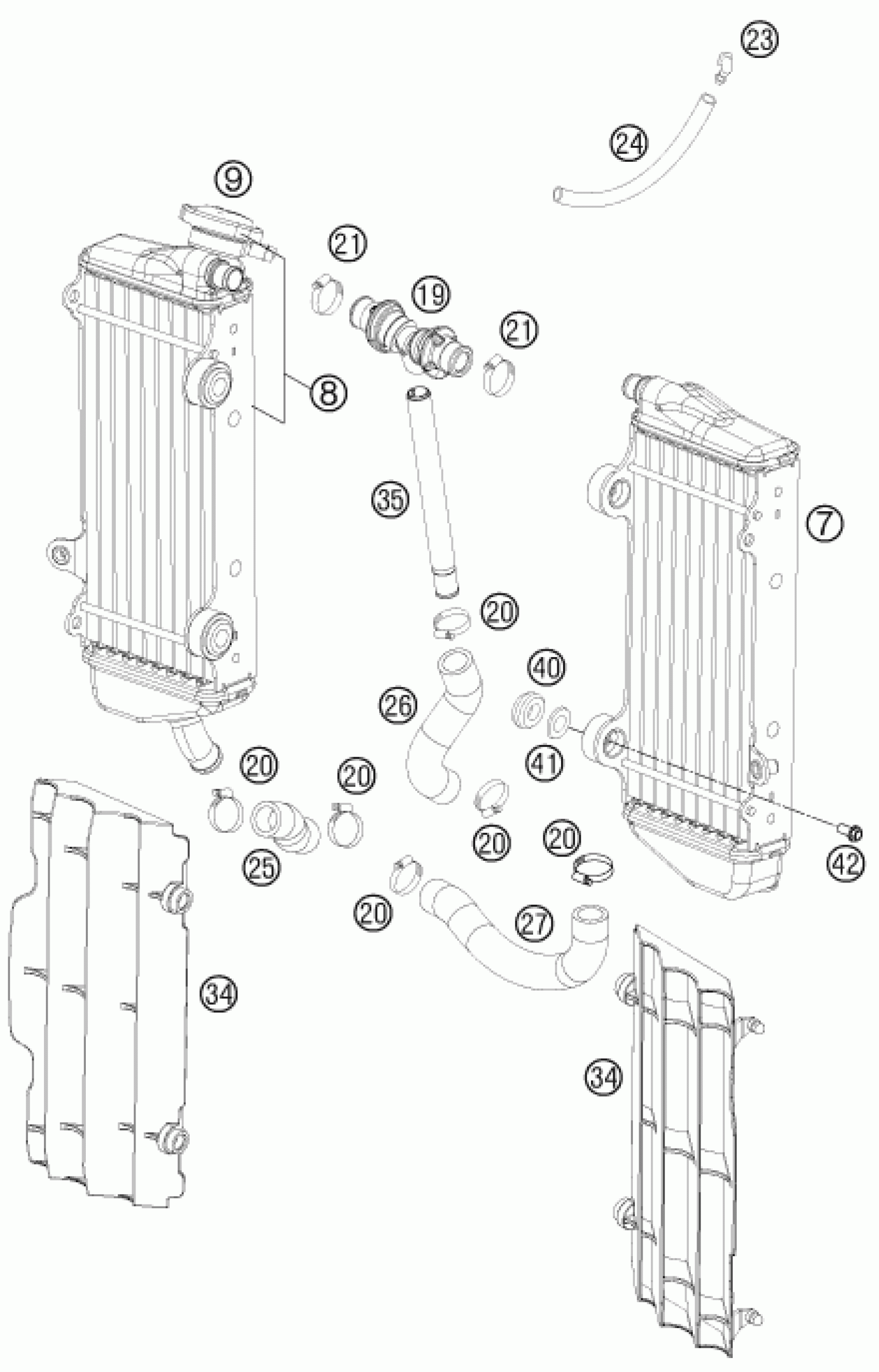

KTM 450 SX-F 2011 COOLING SYSTEM Diagram

#

Description
Price

7

RADIATOR L/S ''45519U'' 07

77335007000

Unavailable

8

RADIATOR R/S ''45637'' 11

77235008000

Unavailable

9

RADIATOR CAP SMALL 1,8 BAR

77335016000

Unavailable

19

Y-CONNECTOR CPL.

77235071044

Unavailable

20

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

21

HOSE CLAMP NORMA 14/24

42013037400

Unavailable

23

ANGLE PIECE '97

50303089000

Unavailable

24

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

25

RADIATOR HOSE R/S

77335027000

Unavailable

26

PREFORMED HOSE ENG-RADIATOR 11

77335524000

Unavailable

27

RADIATOR HOSE L/S

77335025000

Unavailable

34

RADIATOR PROTECTION BLACK 07

7733503400030

Unavailable

35

HOSE CONNECTOR L=172,5

77235073000

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

Unavailable

41

WASHER FOR RADIATOR 08

77335001000

Unavailable

42

COLLAR SCREW M6X12 TX

0023060123

Unavailable
