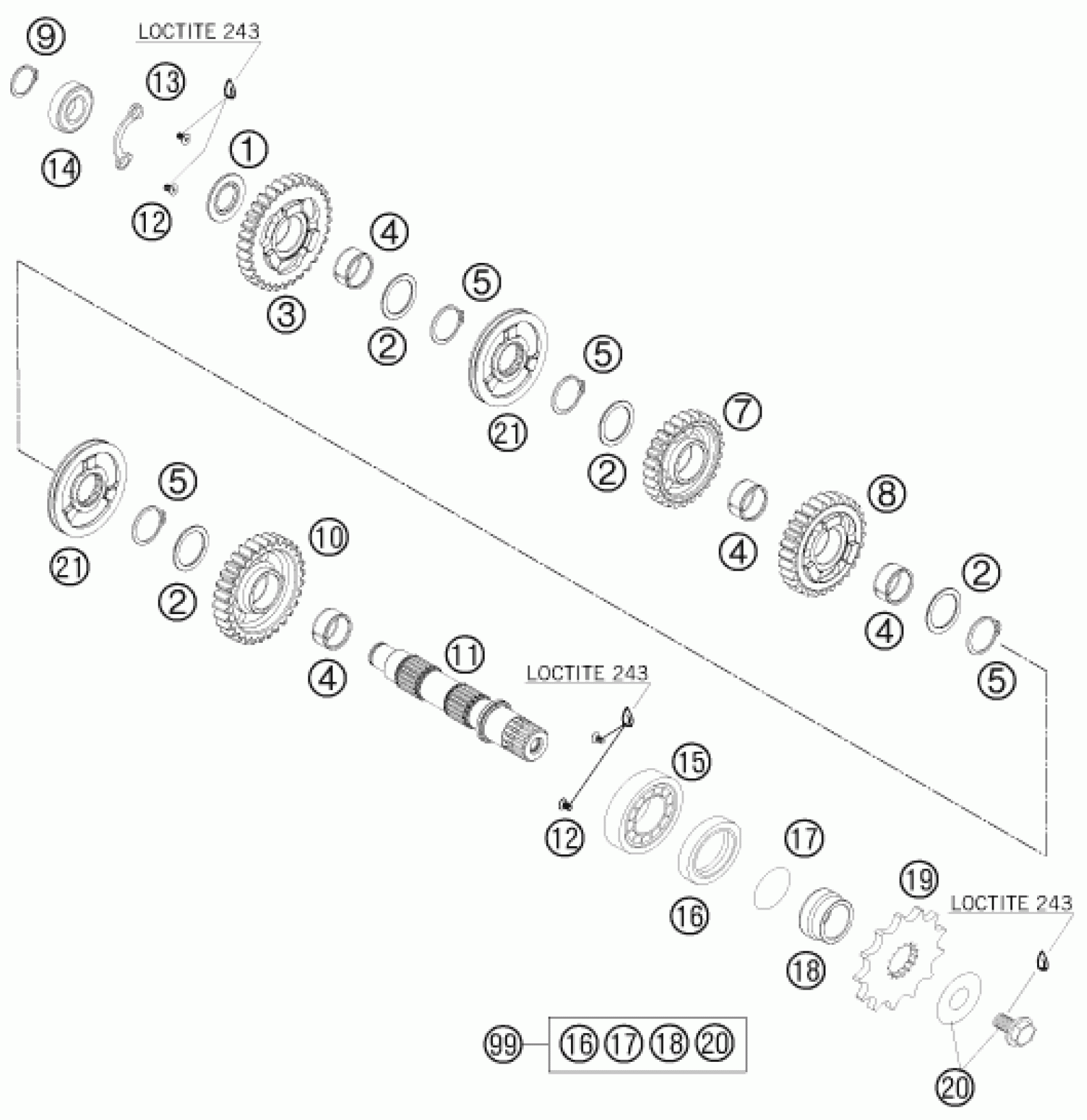

KTM 450 SX-F 2008 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

STOP DISC 32X17X2,2

77333243100

Unavailable

2

STOP DISC 35X25X1

77333244200

Unavailable

3

IDLER GEAR 1ST G 32-T

77333211100

Unavailable

4

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

5

CIRCLIP DIN0471-25X1,2

0471250120

Unavailable

7

IDLER GEAR 4 G 26-T

77333214100

Unavailable

8

IDLER GEAR 3 G 28-T

77333213100

Unavailable

9

CIRCLIP DIN 0471-17X1, 5

0471170015

Unavailable

10

IDLER GEAR 2 G 30-T

77333212100

Unavailable

11

COUNTERSHAFT

77333210100

Unavailable

12

INT TORX FLAT HEAD M 5X10 8.8

0019050103

Unavailable

13

BUSHING RETAINING PLATE

77333024100

Unavailable

14

BALL BEARING 6203 RSH C3

0625062036

Unavailable

15

CYL.ROLLER BEARING NUP205E C3

0402255215

Unavailable

16

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

17

O-RING 25,00X1,50 NBR 70

0770250015

Unavailable

18

SPACER BUSHING

77333219000

Unavailable

19

FRONT SPROCKET 13-T

50033029013

Unavailable

19

FRONT SPROCKET 14-T

50033029014

Unavailable

19

FRONT SPROCKET 15-T

50033029015

Unavailable

20

SCREW 10.9+SPRING WASHER

59033034044

Unavailable

21

SHIFT RING

77334205000

Unavailable

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000945

Unavailable
