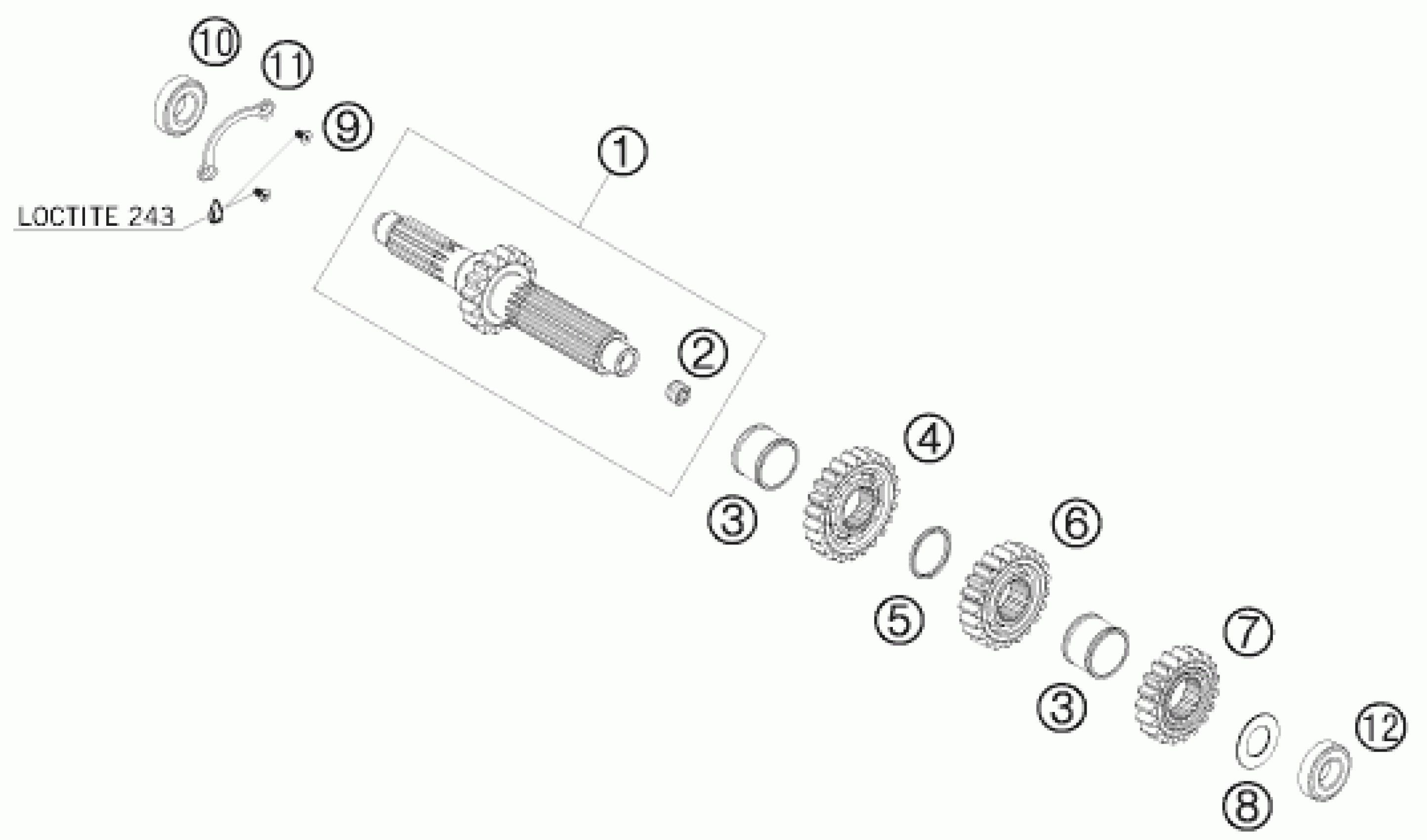

KTM 450 SX-F 2008 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

MAIN SHAFT

77333201100

Unavailable

2

GUIDE BUSHING

77333001160

Unavailable

3

SPACER SLEEVE 25X29X21,2

77333252921

Unavailable

4

SOLID GEAR 4.G 23Z

77333204100

Unavailable

5

SPACER BUSHING 25X29X2,4

77333252924

Unavailable

6

SOLID GEAR 3.G 21Z

77333203100

Unavailable

7

SOLID GEAR 2.G. 19Z

77333202100

Unavailable

8

STOP DISC 32X17X1

77333244300

Unavailable

9

INT TORX FLAT HEAD M 5X10 8.8

0019050103

Unavailable

10

BALL BEARING 6205 C3 NTN

0625062054

Unavailable

11

BUSHING RETAINING PLATE

77333022100

Unavailable

12

BALL BEARING 6203 RSH C3

0625062036

Unavailable
