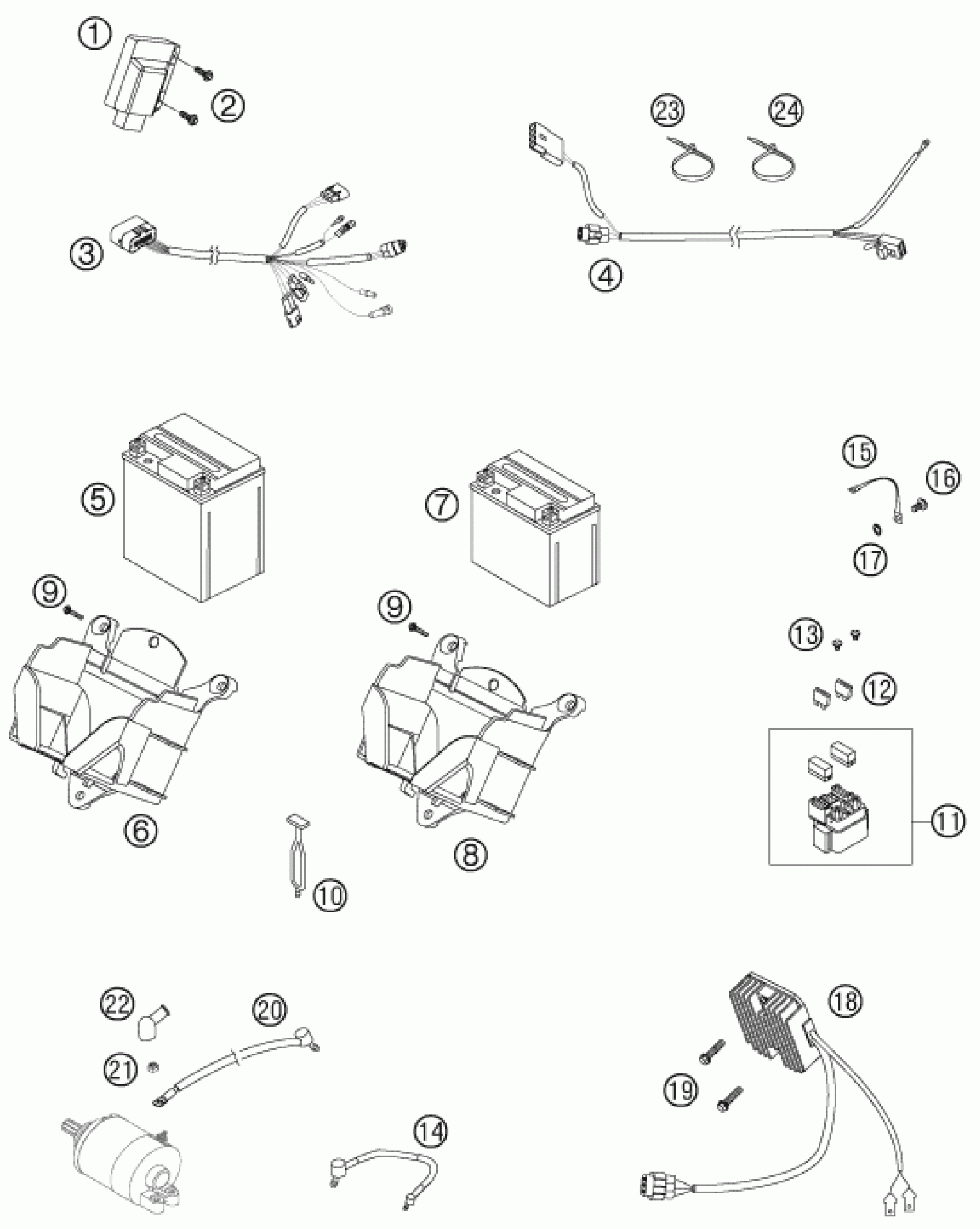

KTM 450 SX-F 2007 WIRING HARNESS Diagram

#

Description
Price

23

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

24

Cable tie 200/4.6mm black

44011076200

Unavailable

22

PROTECTION CAP F. STARTER ENG.

58440099000

Unavailable

1

CDI UNIT KOKUSAN 450 SX-F 07

77339031000

Unavailable

5

BATTERY 12V 4AH YTX5L-BS

58511053000

Unavailable

6

BATTERY CASE EXC 08

78011055000

Unavailable

9

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

10

RUBBER L=145MM

50303018000

Unavailable

11

Starter reley 12V 99

58211058000

Unavailable

12

Plug-in fuse, big 10A

58011109110

Unavailable

13

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

14

WIRING HARNESS BATTERY DUKE'99

58711086000

Unavailable

15

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

16

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

18

VOLTAGE REGULATOR ''RS2759'' 0

77311034000

Unavailable

19

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

20

STARTERCABLE 700 MM '97

58411059100

Unavailable

21

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

2

COLLAR SCREW M6X12 TX

0023060123

Unavailable

3

WIRING HARNESS FOR CDI-BOX

77339032000

Unavailable

4

MAIN WIRING HARNESS 450 SX-F

77311075000

Unavailable

7

BATTERY 12V 3AH YTX4L-BS

77311053000

Unavailable

8

BATTERY CASING

77311055000

Unavailable

17

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable
