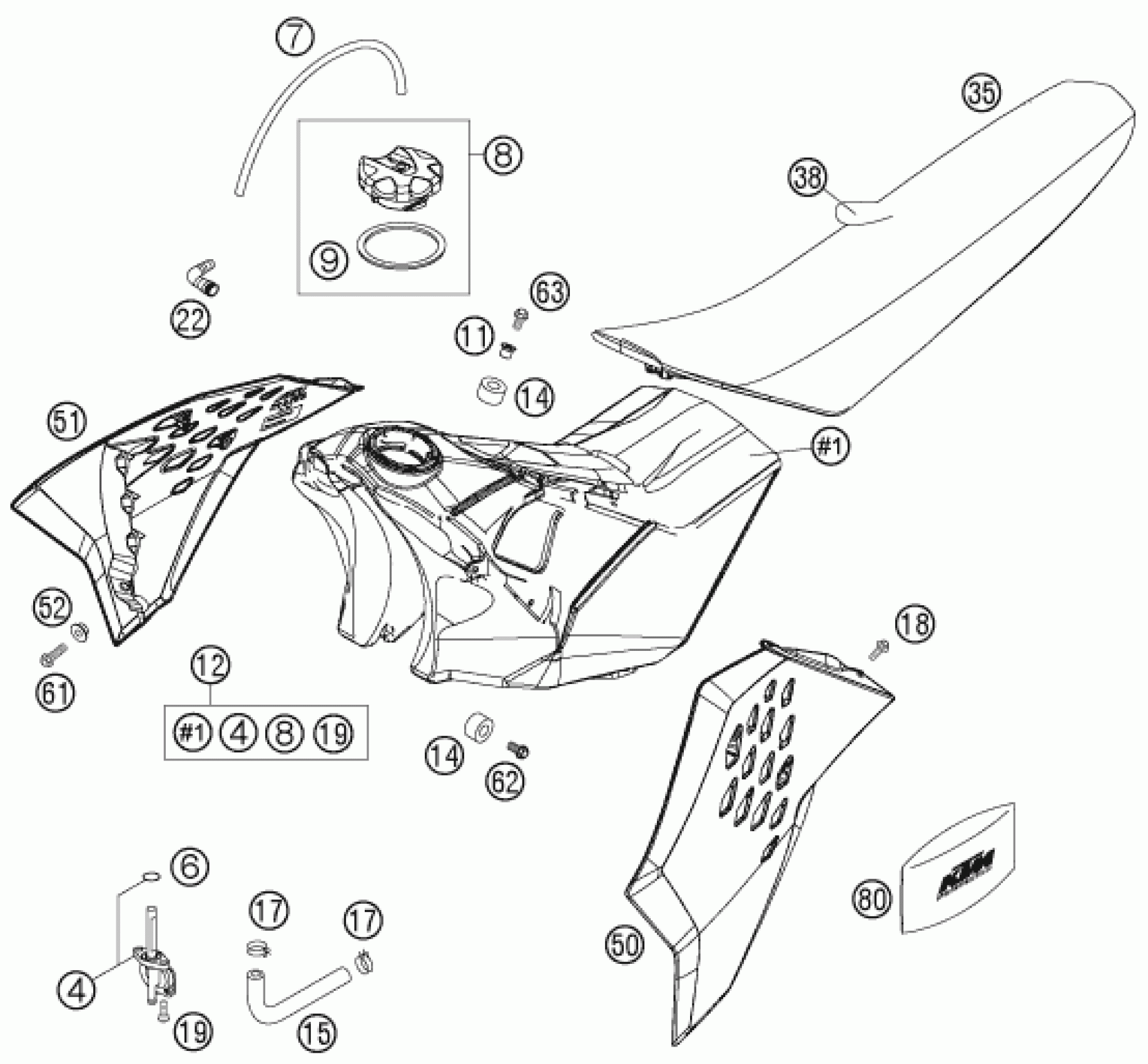

KTM 450 SX-F 2007 TANK, SEAT Diagram

#

Description
Price

4

GAS COCK MIKUNI ON/OFF 2001

50307005000

Unavailable

6

O-RING 13,00X2,30

0770130023

Unavailable

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

FILLER CAP CPL. 05

77007008044

Unavailable

11

TANK BUSHING 07

77307026000

Unavailable

12

FUEL TANK CPL. 7,5L SX 07

7730701303330

Unavailable

14

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

15

FUEL PREFORMED HOSE 450 SX-F

77307016000

Unavailable

17

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

18

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

19

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

22

ANGLE PIECE 90 DEGREE M10X1

51030022000

Unavailable

35

SEAT SX 07

77307040000

Unavailable

38

SEAT COVER 07

77307040050

Unavailable

50

SPOILER LEFT BLACK SX 07

7730805000030A

Unavailable

51

SPOILER RIGHT BLACK SX 07

7730805100030A

Unavailable

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

61

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

62

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

63

COLLAR SCREW M6X27 TX

0024060273

Unavailable

80

BORDTOOL 07

77329099000

Unavailable

8

TANK PLUG ORANGE/BLACK

7800700804404

Unavailable

8

TANK PLUG BLACK

7800700804430

Unavailable
