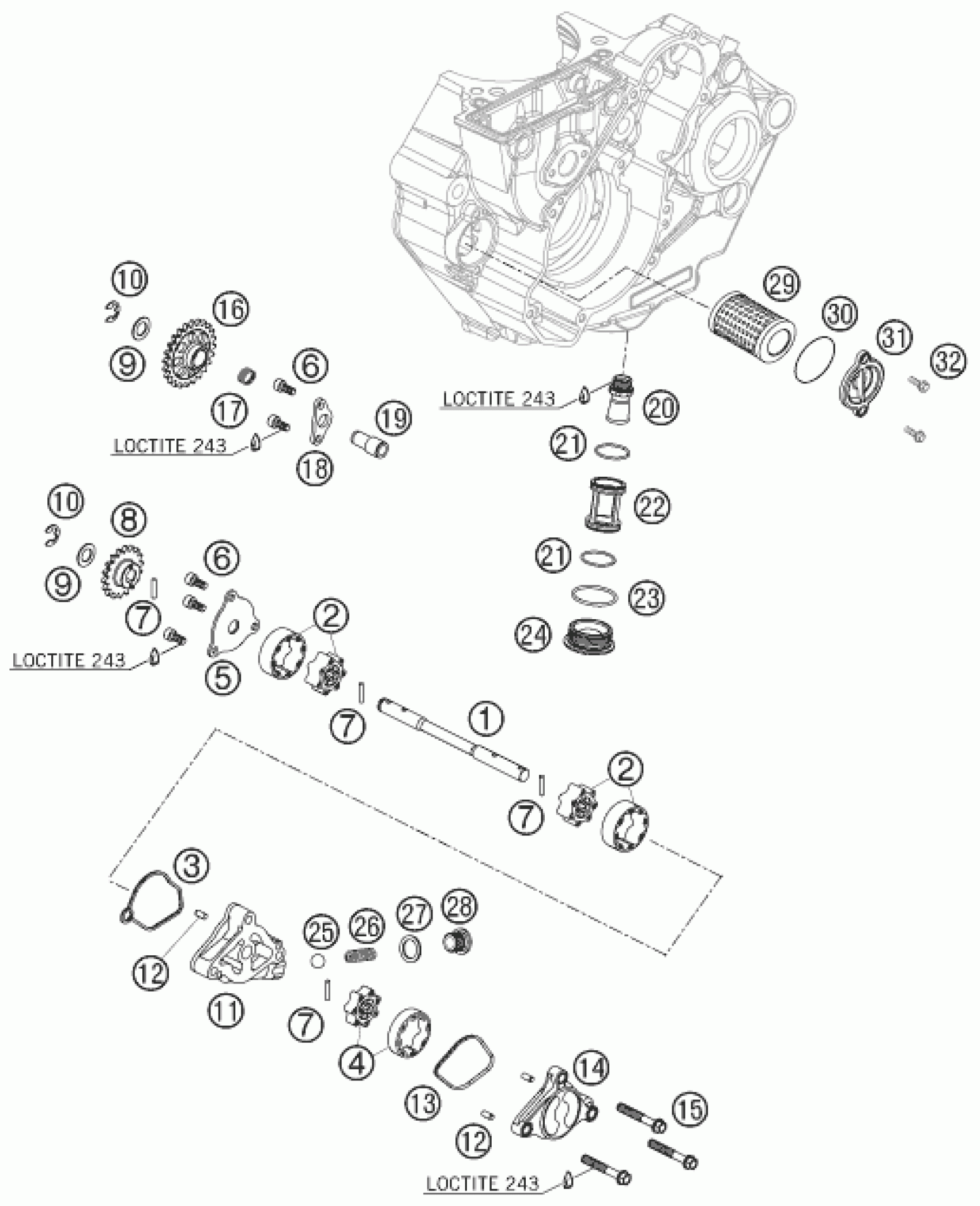

KTM 450 SX-F 2007 LUBRICATING SYSTEM Diagram

#

Description
Price

2

SUCTION PUMP

77338107000

Unavailable

4

PRESSURE PUMP

77338207000

Unavailable

3

GASKET PRESSURE PUMP CASE

77338012000

Unavailable

6

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

5

PUMP COVER 07

77338004100

Unavailable

7

NEEDLE ROLLER DIN5402 3X15,8

0402031580

Unavailable

8

OIL PUMP GEAR 18-T

77338001000

Unavailable

9

WASHER 10,2X18X1

77338023000

Unavailable

10

retaining washer DIN 6799 - 8

0799080000

Unavailable

11

PRESSURE PUMP CASE

77338010100

Unavailable

12

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

18

LOCK WASHER BEARING BOLT

77338061050

Unavailable

19

BEARING BOLT

77338061000

Unavailable

20

OIL INTAKE SNORKEL

77338022000

Unavailable

21

O-RING 23,00X1,50 NBR 70

0770023015

Unavailable

22

OIL SCREEN CPL.

77338016100

Unavailable

23

O-RING 30X2,0 FPM

0770300020

Unavailable

24

PLUG SCREW

77338019100

Unavailable

13

GASKET PRESSURE PUMP COVER

77338112000

Unavailable

14

PRESSURE PUMP COVER

77338013100

Unavailable

15

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

16

OILPUMP IDLER GEAR 24-T.

77338000050

Unavailable

17

NEEDLE BEARING K 10X13X10 02

0405101310

Unavailable

25

BALL D=10 DIN 5401

0401100000

Unavailable

26

COIL SPRING

77338026100

Unavailable

27

CU-SEAL RING 14X20X1,5 LC8 02

0603142016

Unavailable

28

PLUG SCREW M14X1,5 ALU AH

60038033050

Unavailable

29

Oil Filter 07

77338005100

Unavailable

30

O-RING 34X1,5 VITON

0770034015

Unavailable

31

OIL FILTER COVER

77338041100

Unavailable

32

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

1

OIL PUMP SHAFT

77338002000

Unavailable
