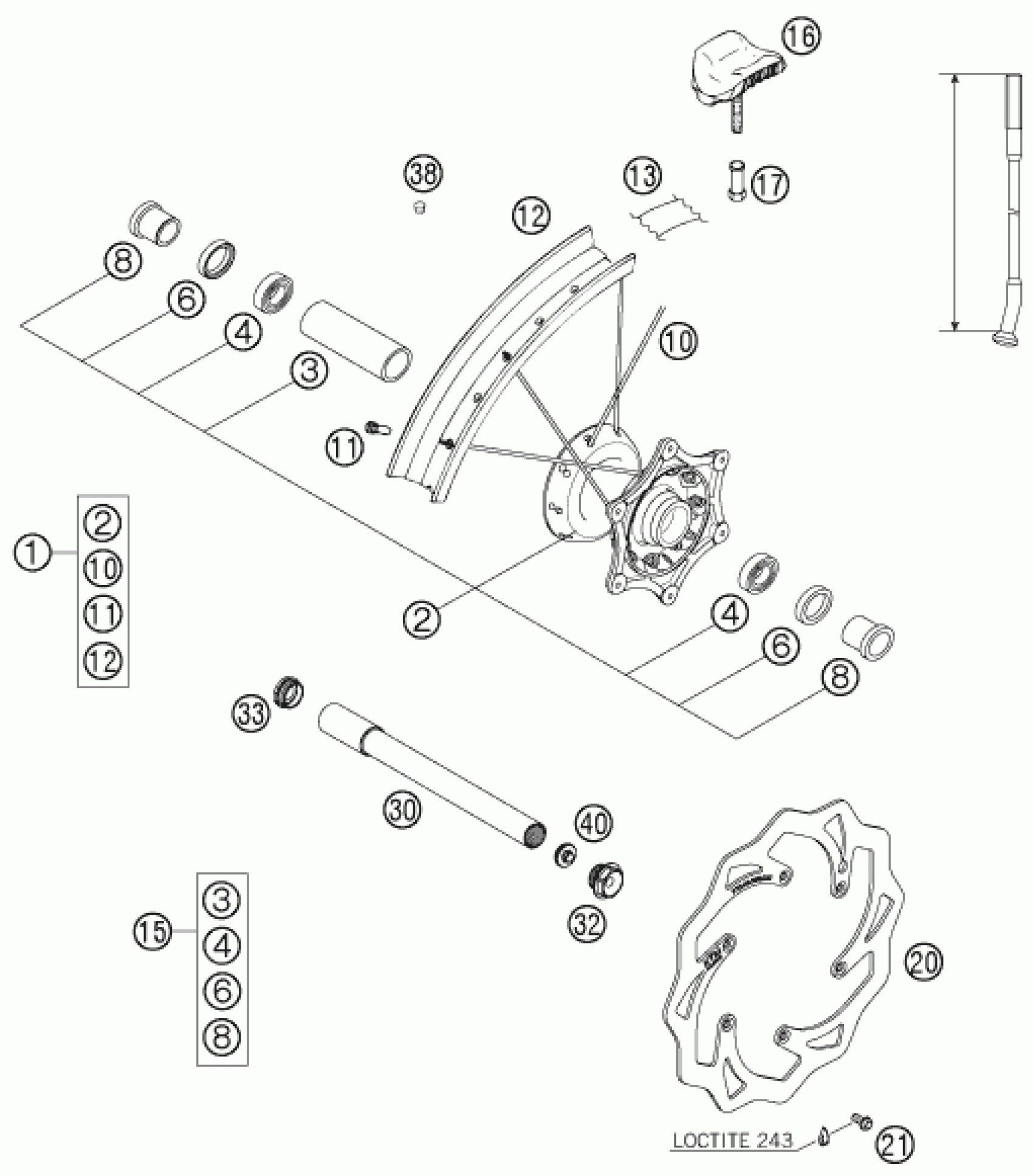

KTM 450 SX-F 2007 FRONT WHEEL Diagram

#

Description
Price

17

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

20

BRAKE DISC FRONT 260

77309060000

Unavailable

21

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

30

WHEEL SPIN.FR. D=26 M24x1,5 07

77309081000

Unavailable

32

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

Unavailable

33

PLUG BUSHING WS=27 03

54809081050

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

40

AUXILIARY SCREW FRONT 06

54809081070

Unavailable

1

FRONT WHEEL CPL.1,6X21EXL

7730900104430

Unavailable

2

FRONT WHEEL HUB CPL. 08

78009010044

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

8

SPACER BUSHING 07

77309012000

Unavailable

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

Unavailable

12

FRONTRIM 1,60X21''EXCELAL4 BLK

5460907010030

Unavailable

15

FRONT WHEEL REP. KIT

77309015000

Unavailable

10

SPOKE M4, 5X226- 21'' 06

77309072226

Unavailable

13

Tube protector 21"

50309073000

Unavailable

16

RIM LOCK VM1 (1,60'')

51009100100

Unavailable
