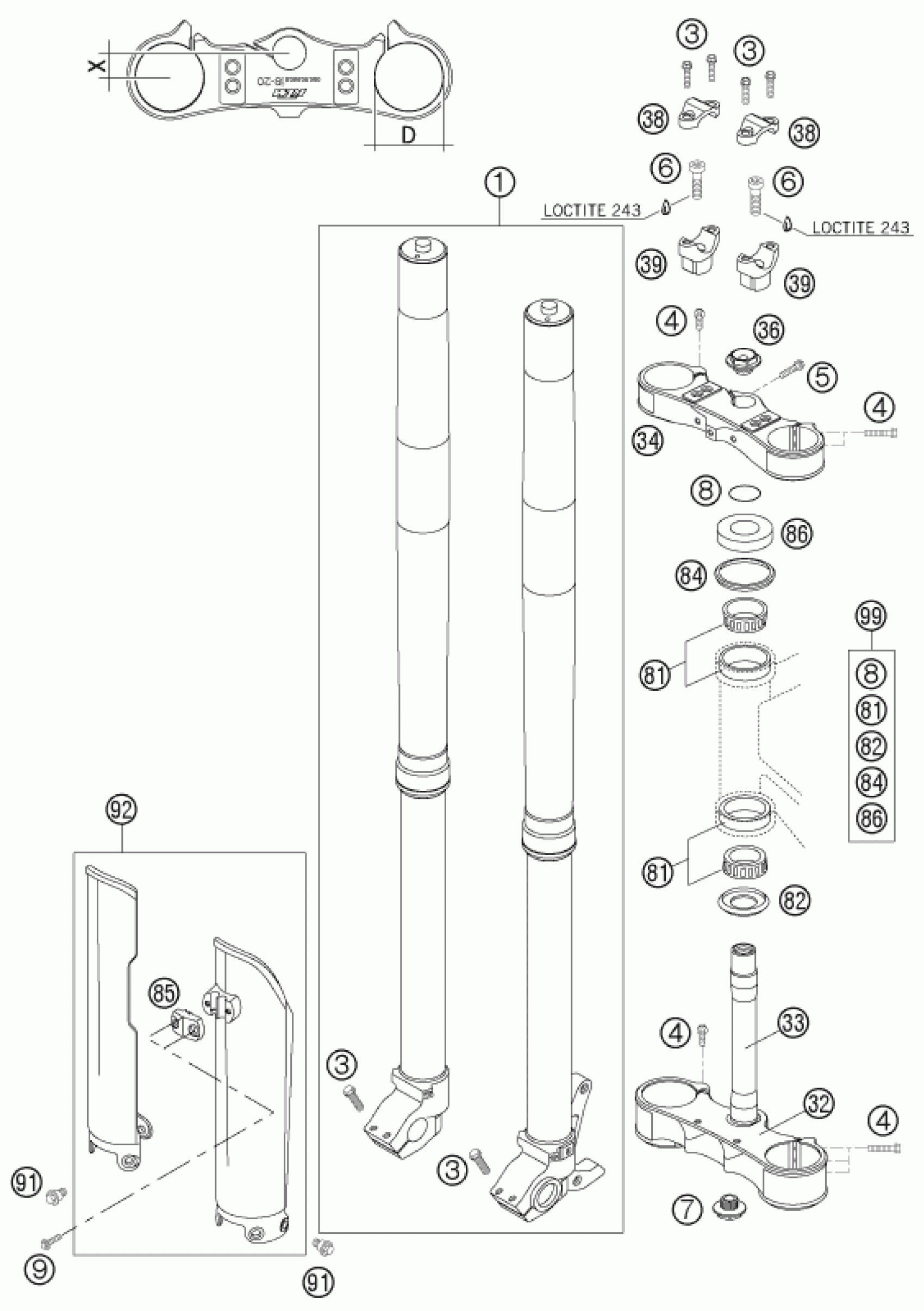

KTM 450 SX-F 2007 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK WP D =48 CC 450 SCF 07

14187C05

Unavailable

3

HH COLLAR SCREW M 8X25 WS=10

0015080253

Unavailable

4

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

5

HH COLLAR SCREW M8X25 WS=10

0015080256S

Unavailable

6

AH SCREW DIN6912-M10X35 10.9

0912100356

Unavailable

7

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

Unavailable

8

O-RING 25X3,55 NBR70 05

0770025035

Unavailable

9

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

32

BOTTOM TRIPLE CLAMP D=60MM 05

59401031019

Unavailable

33

FORK TUBE L=237MM 05

59401033000

Unavailable

34

TOP TRIPLE CLAMP D=54MM 05

59401034019

Unavailable

36

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

Unavailable

38

HANDLEBAR CLAMP 28MM 05

59401038000

Unavailable

39

Handlebar mount D28mm-H32mm

59401039032

Unavailable

39

Handlebar mount D28mm-H37mm

59401039037

Unavailable

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

82

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

85

CLAMP F.SPEED.CABLE ORANGE 06

5900108510004

Unavailable

86

STEERING HEAD COVER

54201086000

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

FORK PROT. L/S +R/S ORG 02

5900109400004

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
