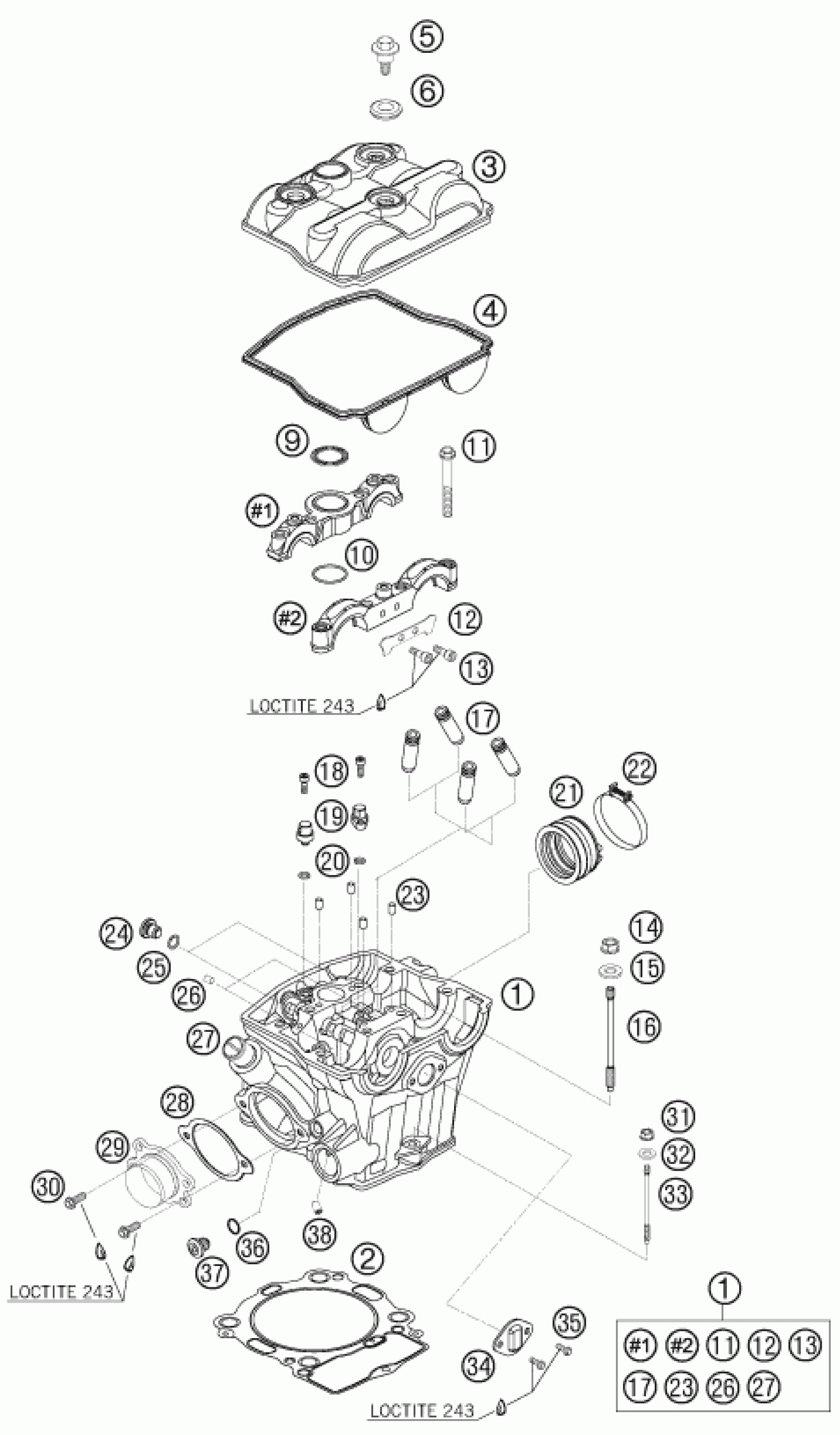

KTM 450 SX-F 2007 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

13

AH SCREW DIN0912-M 5X10

0912050103

Unavailable

1

CYLINDER HEAD CPL.

77336020044

Unavailable

2

CYL. HEAD GASKET S=0,5 06

77330036000

Unavailable

3

VALVE COVER

77336052100

Unavailable

4

VALVE COVER GASKET

77336053000

Unavailable

5

VALVE COVER SCREW

77336054150

Unavailable

6

RUBBER GASKET FOR SCREW 05

77036054050

Unavailable

9

GASKET SPARK-PLUG SHAFT

77336053050

Unavailable

10

O-RING 25,00X1,50 NBR 70

0770250015

Unavailable

11

COLLAR SCREW M7X1X38

77330067038

Unavailable

12

BUSHING HOLDER

77336020040

Unavailable

14

COLLAR NUT M10X1,25 SW13

77336088110

Unavailable

15

washer 19x10.5x2.5

77336089010

Unavailable

16

STUD SCREW M10

77330044000

Unavailable

17

VALVE GUIDE

77336025100

Unavailable

18

AH SCREW DIN0912-M 4X12

0912040123

Unavailable

19

OIL JET

77338046000

Unavailable

20

O-ring 6,00x1,50 NBR 70

0770060015

Unavailable

21

INTAKE BOOT 525 06

59036044200

Unavailable

22

HOSE CLAMP GEMI 56MM 03

59030061100

Unavailable

23

CYLINDER ROLLER ZRO 5X8

0402050080

Unavailable

24

SCREW PLUG

77336056095

Unavailable

25

O-RING 9X1,5 NBR

0770090015

Unavailable

26

PLUG 00

59030196000

Unavailable

27

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

28

GASKET EXHAUST FLANGE

77336041000

Unavailable

29

EXHAUST FLANGE CPL.

77336039100

Unavailable

33

STUD SCREW M6

77330043000

Unavailable

31

COLLAR NUT M6X1 SW8

77336088106

Unavailable

32

WASHER DIN0125-A 6,4

0125060003

Unavailable

36

O-RING 9X1,5 NBR

0770090015

Unavailable

37

SCREW PLUG

77336056095

Unavailable

30

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

34

RETAINING PLATE

77336075050

Unavailable

35

HH COLLAR SCREW M 5X10 WS=8

0015050103

Unavailable

38

THROTTLE M6X10X0,6

77338029012

Unavailable
