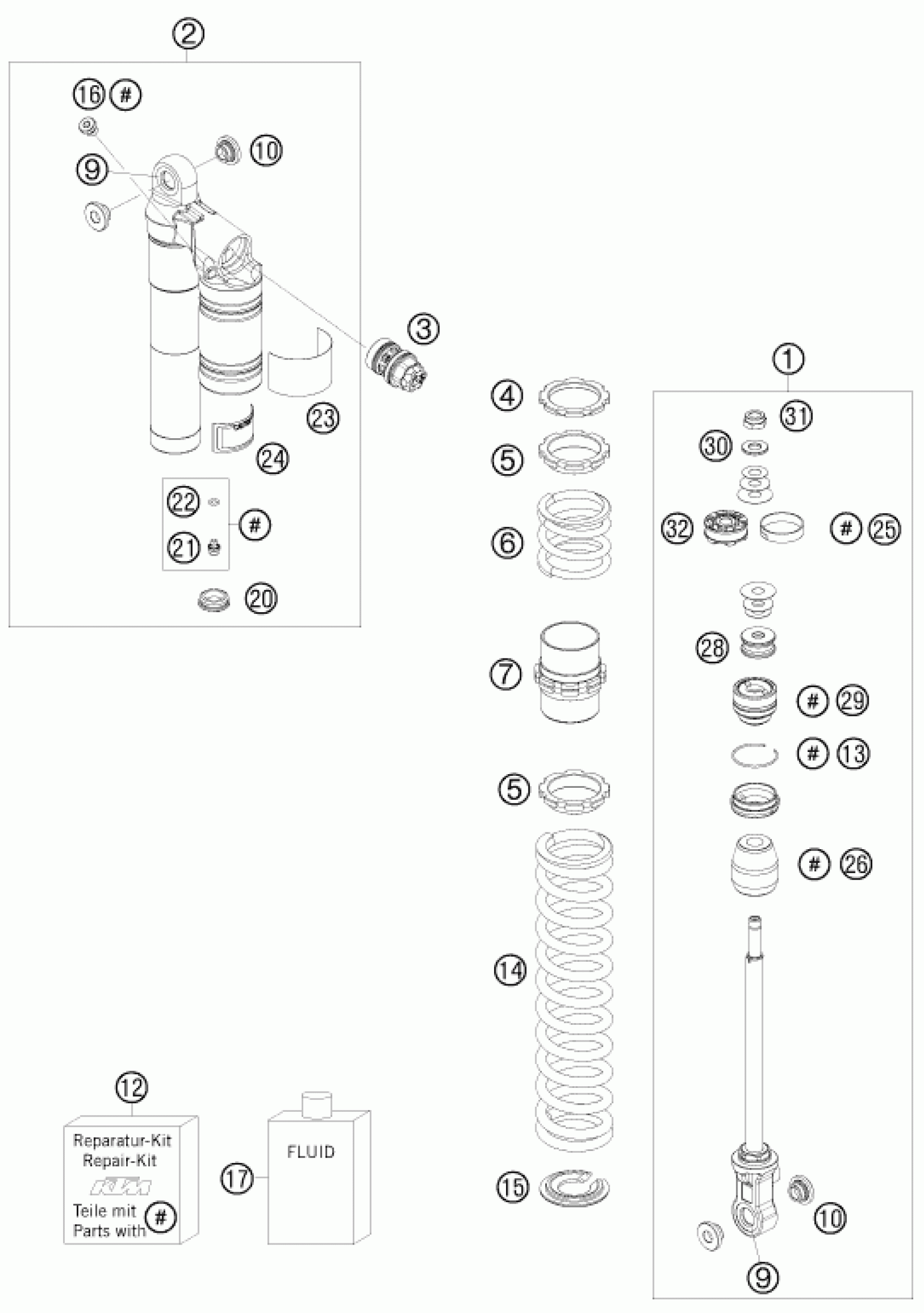

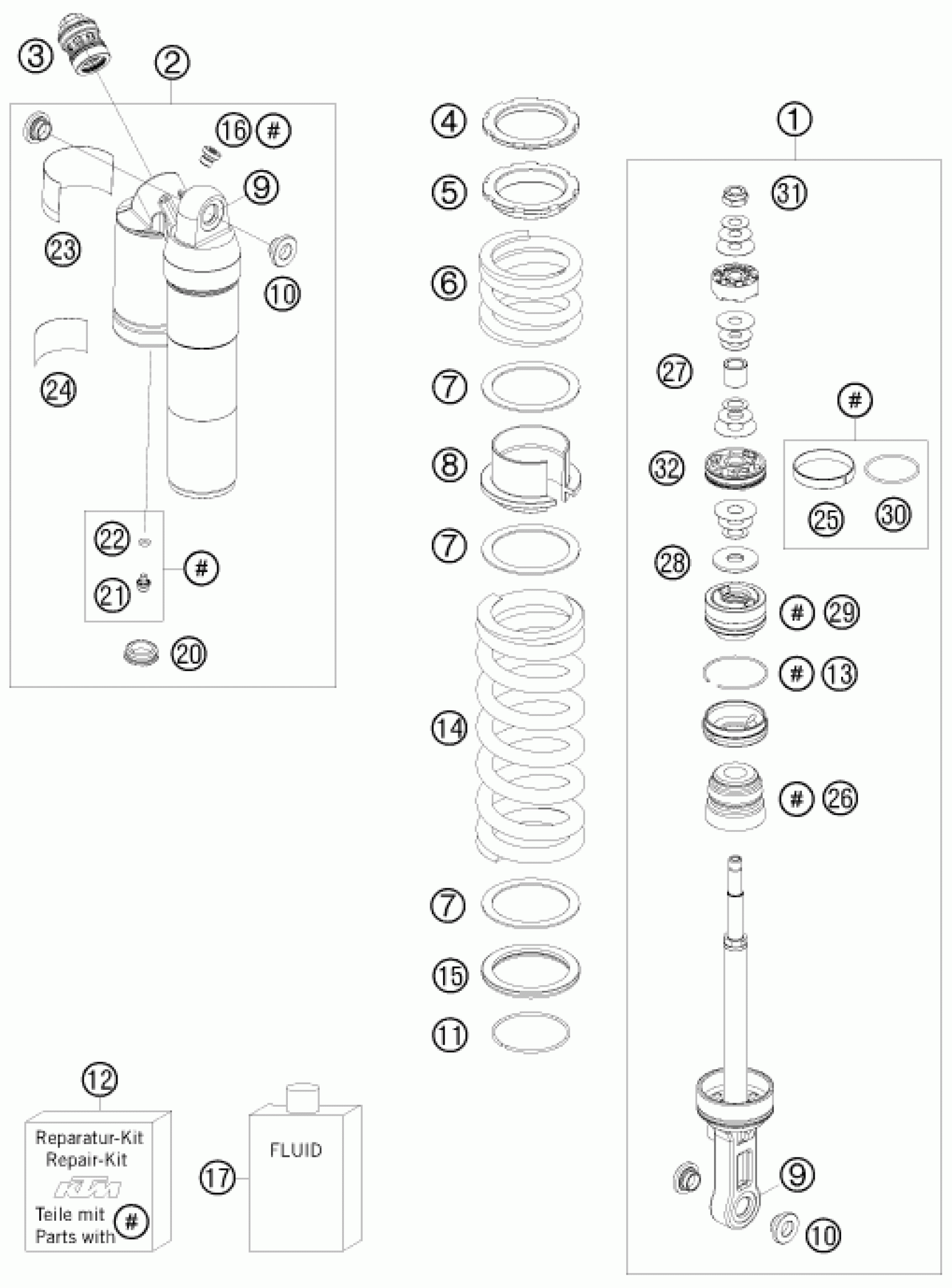

KTM 450 SX ATV 2010 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

30

O-ring 37x,82x1,78 Viton70 gre

46810035

Unavailable

28

REBOUND DISC H=0

46180179

Unavailable

27

SEPARATION BUSH 17X12X18

46180339

Unavailable

25

Piston ring 43,95x45,95x8

46811206

Unavailable

26

BUMP STOP RUBBER W-60 D18

50180120

Unavailable

29

Sealholder 46x28 cpl.

46180669S

Unavailable

31

PISTON ROD NUT M10X1

46180356

Unavailable

32

PISTON 5X4,5X/6X6

46180441

Unavailable

14

SPRING 78-200

91010298S

Unavailable

14

SPRING 70-200

91010305S

Unavailable

1

MONOSHOCK LOWER PART

46180654SA6

Unavailable

2

MONOSHOCK UPPER PART

46180728SA

Unavailable

3

Compression cpl.

50180213S6

Unavailable

4

Lock nut shock M54x1,5

46180766

Unavailable

5

Adjustment nut shock M54x1,5

46180765

Unavailable

6

SPRING 100-55

91010297S

Unavailable

7

Washer 58,6x73,6x1,5

50180410

Unavailable

8

Spring retainer 52,5x76x5

46180787

Unavailable

9

Ball joint bearing kit top 12m

R12012

Unavailable

10

Distance bush 12x15/18/24,5x10

46180007

Unavailable

11

COPPER WASHER 55X2 RVS

46180513

Unavailable

12

REPAIR KIT

R15007

Unavailable

13

Round-wire snap ring 49x1,5

46810010

Unavailable

14

(59) 74-200 D 11,25 ORANGE

91010291

Unavailable

15

SPRING RETAINER D74

46180512

Unavailable

16

HS cylinder-head screw R1/8 l8

50180095

Unavailable

17

SHOCK ABSORBER FLUID SAF 1579A

50180342

Unavailable

20

Rubber cap do not open 22x5,5

46811208

Unavailable

21

HS lock screw M5x6

36120151

Unavailable

22

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

23

Sticker WP clear 35x55

52000086

Unavailable

24

Sticker warning 27x55

52000012

Unavailable
