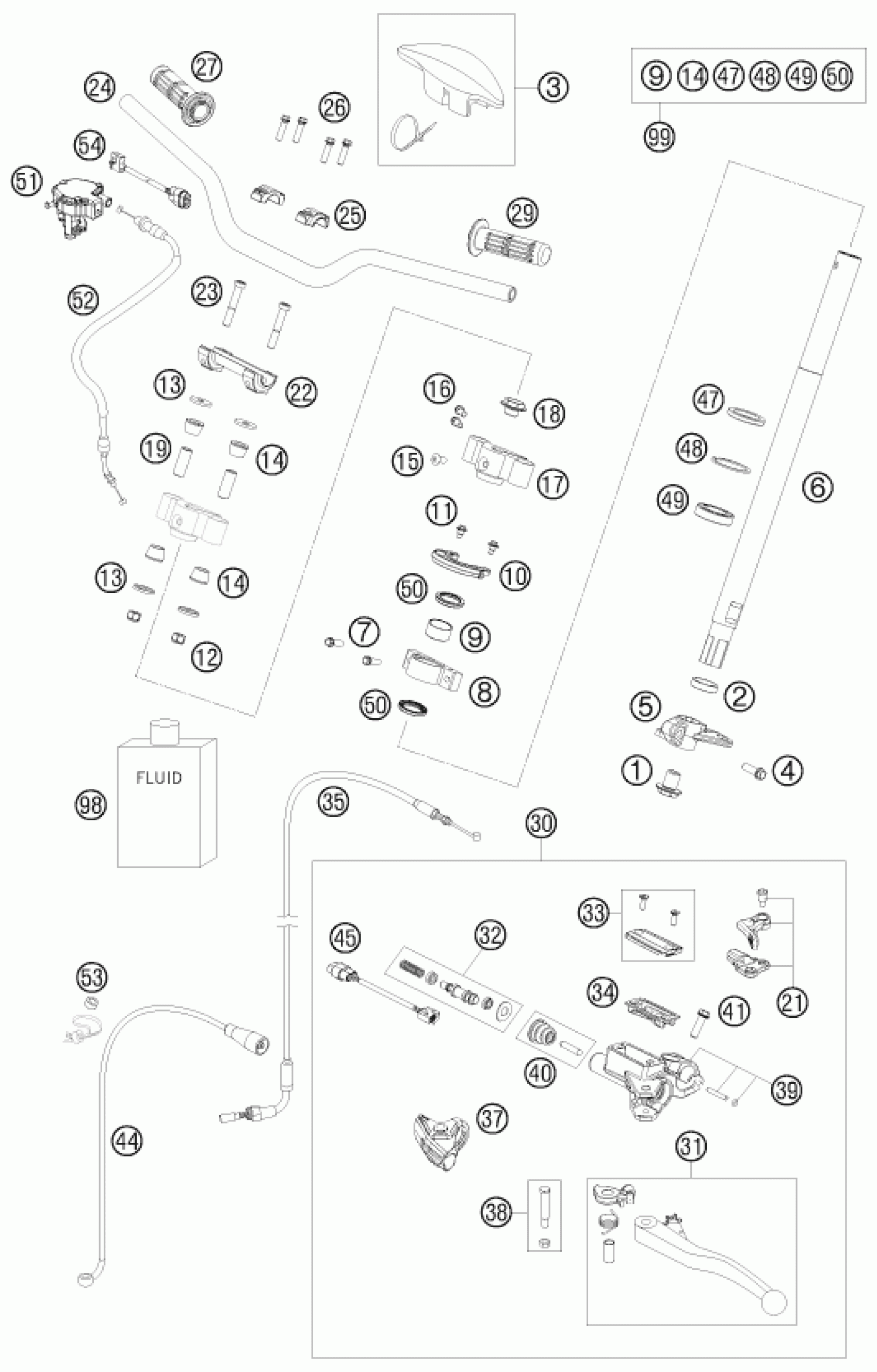

KTM 450 SX ATV 2010 HANDLEBAR, CONTROLS Diagram

#

Description
Price

3

BAR PAD CPL.

77202002000

Unavailable

24

HANDLEBAR ATV 2008

83002001000

Unavailable

25

HANDLEBAR CLAMP D=28MM 2000

59001038200

Unavailable

26

HH collar screw M8x30

0025080306

Unavailable

27

HANDLE BAR GRIP ATV R/S

83002021002

Unavailable

29

HANDLE BAR GRIP ATV L/S

83002021001

Unavailable

30

MASTER CYLINDER CPL. 10,5 mm

83502030000

Unavailable

31

CLUTCH LEVER CPL. 2009

50302031300

Unavailable

32

REP.KIT PISTON 10,5MM 09

77302032000

Unavailable

33

LOCKING LEVER PARK BREAK CPL.

83013040000

Unavailable

34

RUBBER FOR RESERVOIR 09

50302034100

Unavailable

35

CABLE FOR HOTSTART

83502096000

Unavailable

37

MUD CAP 09

50302037100

Unavailable

38

LEVER SCREW CPL. 09

50302038100

Unavailable

39

CLAMP, CYL. PIN, O-RING

83013005000

Unavailable

40

PUSH ROD CPL. 09

50302046000

Unavailable

41

HH collar screw M6x16 TX30

0025060166

Unavailable

44

CLUTCH PIPE

83032063000

Unavailable

45

CLUTCH SWITCH ATV

83111049000

Unavailable

54

SAFETY SWITCH THUMB THROTTLE

83011025000

Unavailable

47

SHAFT SEAL RING 38,5X55X7

0760385570

Unavailable

48

CIRCLIP DIN0472-55X2

0472055200

Unavailable

49

BALL BEARING 6006/32-2RS1

0625060061

Unavailable

50

SHAFT SEAL RING 35x47x6 NBR902

83501035060

Unavailable

51

THUMB THROTTLE

83002022100

Unavailable

52

THROTTLE CABLE ATV

83002091000

Unavailable

53

SPACER BUSHING 6X10X5

50301089000

Unavailable

98

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

1

STEERING HEAD SCREW M20X1,5

83001033051

Unavailable

2

WASHER F. STEERING BEARING

83001033052

Unavailable

4

HH COLLAR SCREW M10X30 WS=13

0015100303

Unavailable

5

STEERING LEVER

83001033050

Unavailable

6

STEERING COLUMN

83501033100

Unavailable

7

HH collar screw M8x25

0025080256

Unavailable

8

BEARING BLOCK STEERING COLUMN

83001035100

Unavailable

9

SLIDE BEARING W.C. JSM-3539-20

83001035150

Unavailable

10

CABLE GUIDE

83001069000

Unavailable

11

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

12

SELF LOCKING NUT DIN0985-M10

0985100003

Unavailable

13

BUCKET

83001042000

Unavailable

14

RUBBER BUSH

83001040000

Unavailable

15

SPROCKET SCREW-AH M8X20 WS=6

54610052000

Unavailable

16

HH collar screw M8x20

0025080206

Unavailable

17

HANDLE BAR BRIDGE

83001034108

Unavailable

18

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

Unavailable

19

SPACER TUBE 10.2X16X39

83001041000

Unavailable

21

HOT START LEVER CPL. 09

77302047000

Unavailable

22

HANDLEBAR SUPPORT 28MM SC'99

59001039100

Unavailable

23

AH SCREW DIN6912-M10X60

0012100606

Unavailable

99

STEERING STEM RENEW KIT ATV

00050010012

Unavailable
