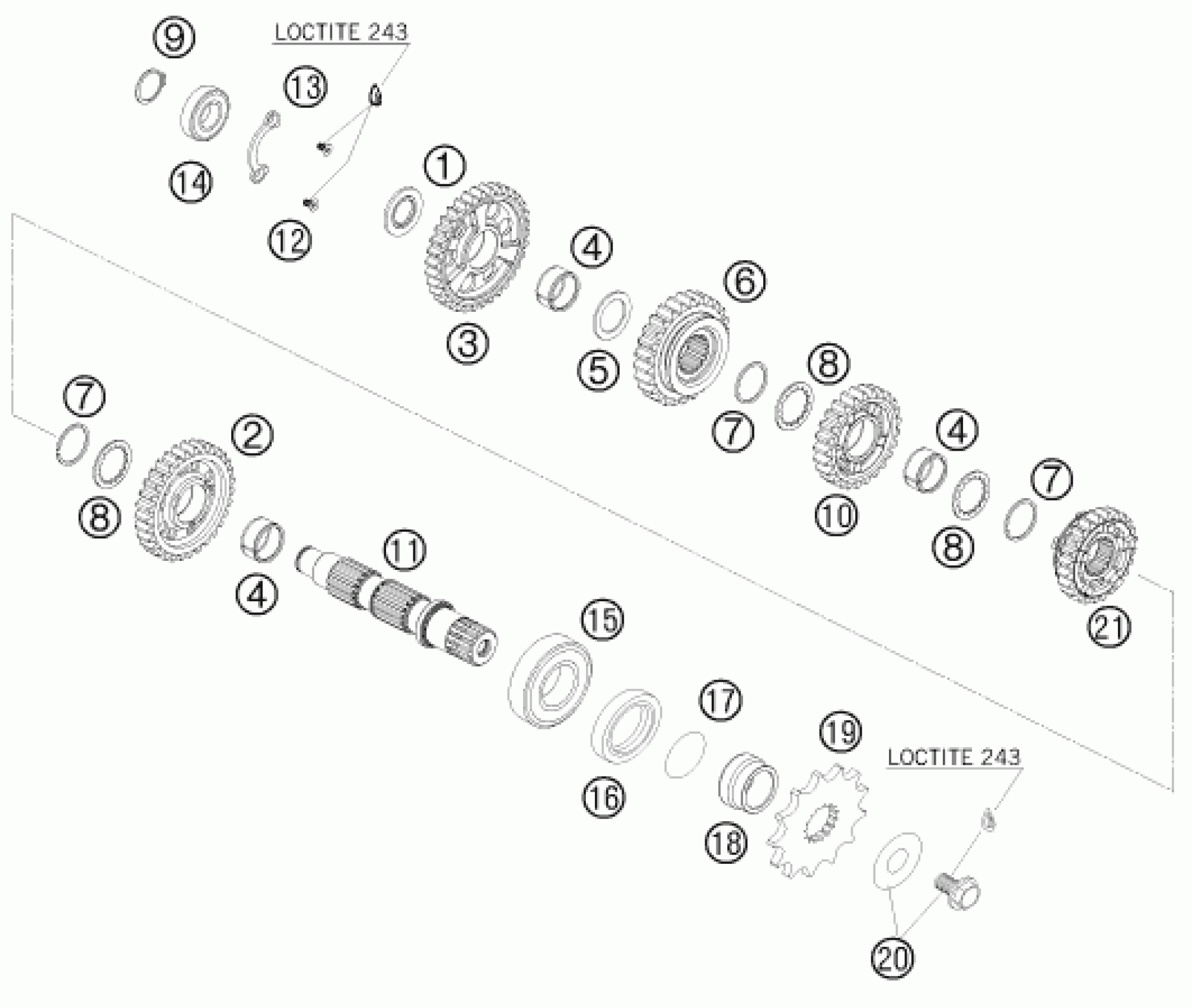

KTM 450 SX ATV 2009 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

STOP DISC 17,1X32X2,6

77333045000

Unavailable

2

IDLER GEAR 2.G

77333312000

Unavailable

3

IDLER GEAR 1.G

77333311000

Unavailable

4

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

5

STOP DISC 22,2X32X1,5

77333044000

Unavailable

6

SLIDING GEAR 3RD G

77333313000

Unavailable

7

CIRCLIP SW25

0417025000

Unavailable

8

STOP DISK 23 X 32 X 1,5

78033033000

Unavailable

9

CIRCLIP DIN 0471-17X1, 5

0471170015

Unavailable

10

IDLER GEAR 4TH. G.

77333314000

Unavailable

11

COUNTERSHAFT

83533310000

Unavailable

12

INT TORX FLAT HEAD M 5X10 8.8

0019050103

Unavailable

13

BUSHING RETAINING PLATE

77333024100

Unavailable

14

BALL BEARING 6203 RSH C3

0625062036

Unavailable

15

cylindrical roller bearing NJ2

49030023000

Unavailable

16

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

17

O-RING 25,00X1,50 NBR 70

0770250015

Unavailable

18

SPACER BUSHING

83533019000

Unavailable

19

FRONT SPROCKET 13-T

50033029013

Unavailable

19

FRONT SPROCKET 14-T

50033029014

Unavailable

19

FRONT SPROCKET 15-T

50033029015

Unavailable

20

SCREW 10.9+SPRING WASHER

59033034044

Unavailable

21

SLIDING GEAR 5TD G

77333315000

Unavailable
