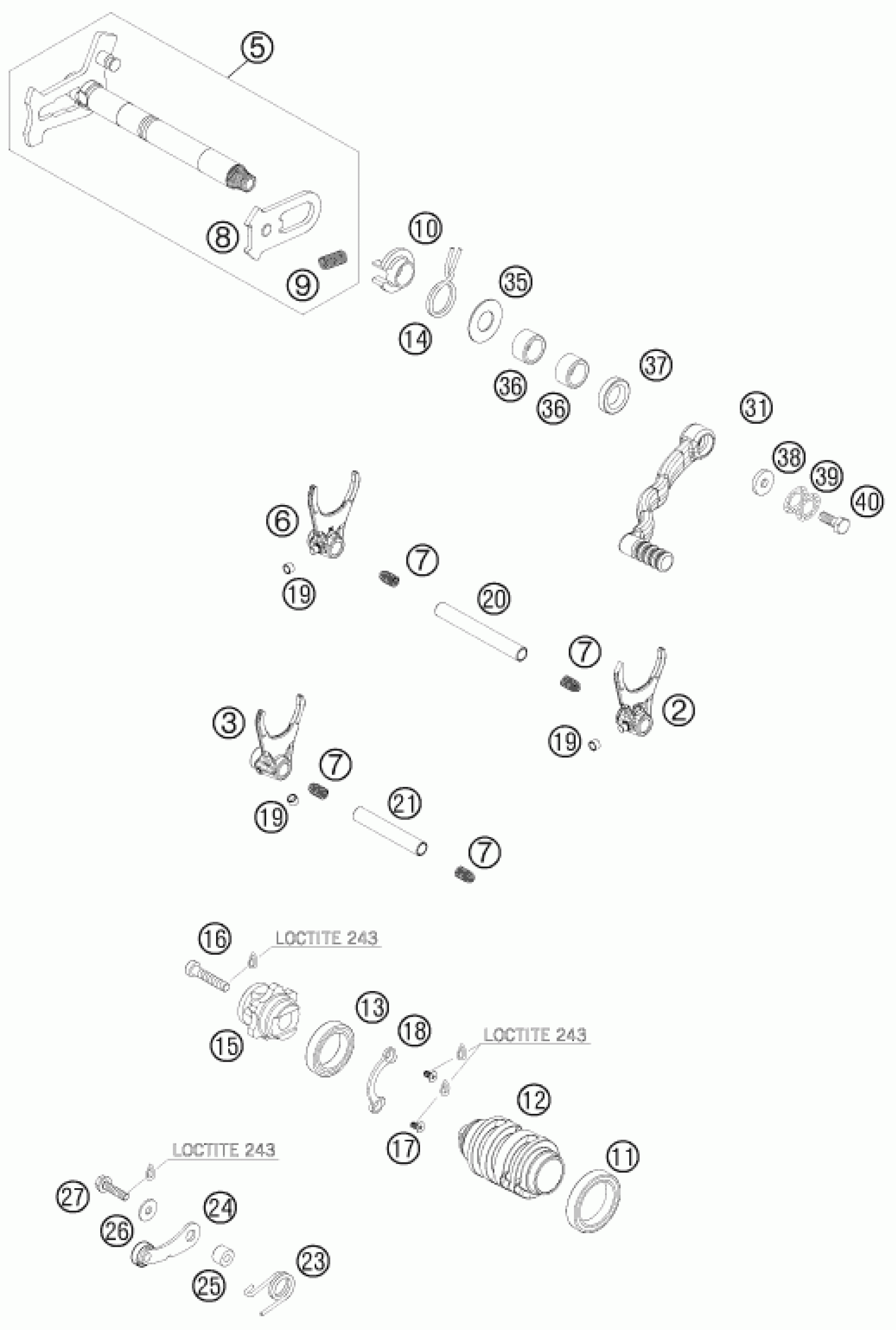

KTM 450 SX ATV 2009 SHIFTING MECHANISM Diagram

#

Description
Price

3

SHIFTING FORK 3RD/5TH GEAR 03

77334003100

Unavailable

5

SHIFT SHAFT CPL.

83534005044

Unavailable

6

SHIFTING FORK 1ST.GEAR

77334001100

Unavailable

7

PRESSURE SPRING 0,9MM

58038023200

Unavailable

8

SLIDING PLATE CPL.

54634008044

Unavailable

9

TENSIONING SPRING 0,8MM

56534013100

Unavailable

10

SPRING GUIDE

54634020000

Unavailable

11

BALL BEARING 61806

0625061806

Unavailable

12

SHIFT ROLLER 5G 08

77334012100

Unavailable

13

BALL BRG 6805 C4 NTN JAPAN

0625068050

Unavailable

14

RETURN SPRING 03

54834014000

Unavailable

15

SHIFT LOCATING DRUM CPL.

83534015000

Unavailable

16

AH SCREW DIN6912 M6X30 8.8

0012060303

Unavailable

17

INT TORX FLAT HEAD M 5X10 8.8

0019050103

Unavailable

18

BUSHING RETAINING PLATE

77334090000

Unavailable

19

SHIFTING ROLLER 6X8X5,2

50334018100

Unavailable

20

SHIFT RAIL

77334020000

Unavailable

21

FRONT SHIFT RAIL

77334019000

Unavailable

23

ARRESTING LEVER SPRING 03

60034023000

Unavailable

24

LOCATING LEVER CPL. 08

50334024144

Unavailable

25

SLEEVE FOR LOCKING LEVER

54634052300

Unavailable

26

washer DIN 9021 A - 5.3

0021050003

Unavailable

2

SHIFTING FORK 2ND/4TH GEAR

77334002100

Unavailable

27

HH collar screw M5x20 TX30

0025050206

Unavailable

31

SHIFT LEVER

83534031000

Unavailable

32

STEP PLATE FOR SHIFT LEVER 250

54634131000

Unavailable

33

BOLT 6X25 FOR SHIFT LEVER

54634031050

Unavailable

34

SHIFTING LEVER SPRING 250

54634032100

Unavailable

35

STOP DISK 14X30X1

54634050000

Unavailable

36

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

37

radial shaft seal 14x24x6 B

0760142460

Unavailable

38

STEEL WASHER 6,4X17X3

50232050001

Unavailable

39

Pair of washers M6 NORDLOCK

50233041000

Unavailable

40

HH SCREW DIN0933-M 6X16 10.9

0933060165

Unavailable
