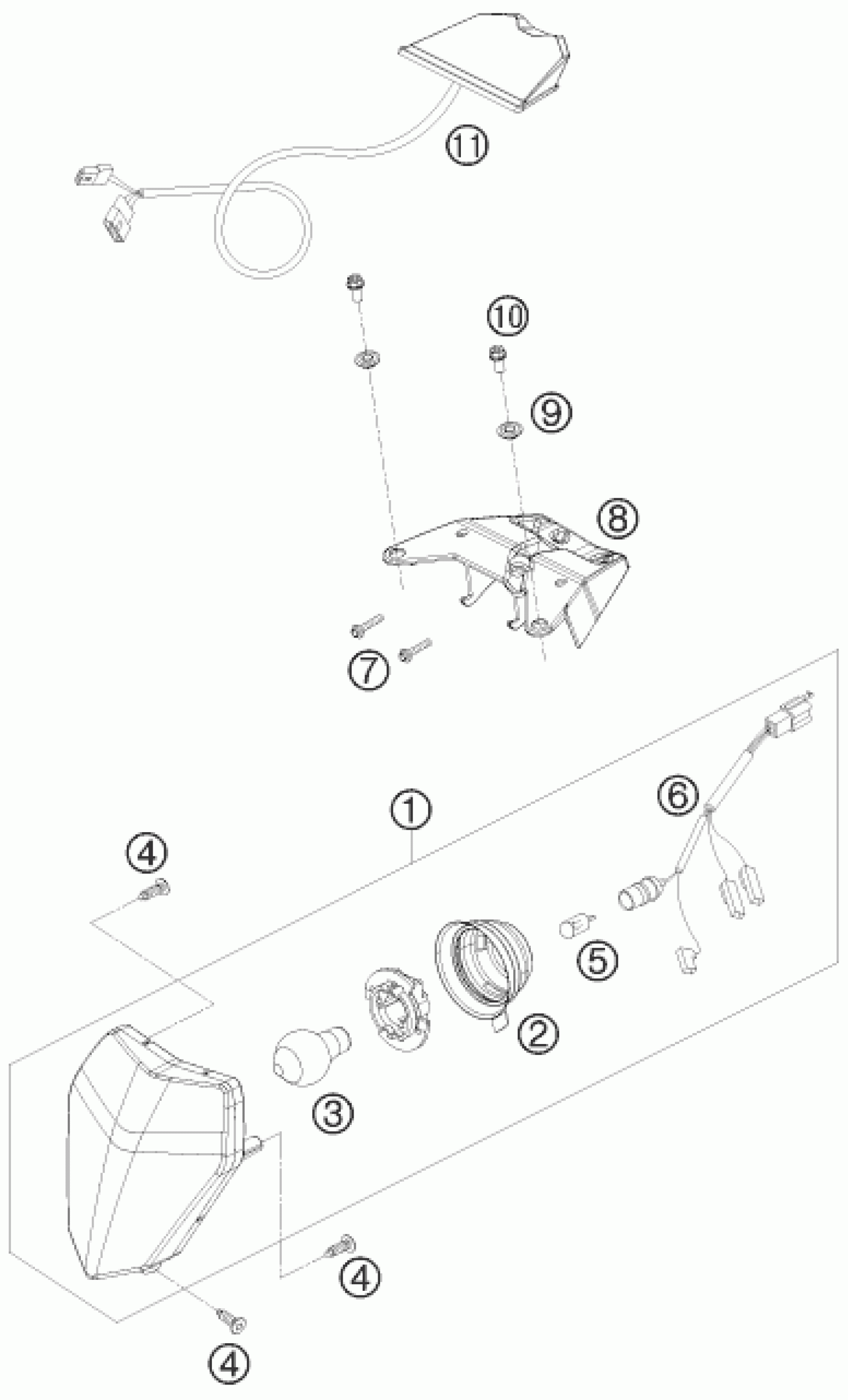

KTM 450 SX ATV 2009 LIGHTING SYSTEM Diagram

#

Description

Price

1

HEADLIGHT ATV

83014001000

Unavailable

2

RUBBER CAP FOR HEAD LIGHT 05

54814001050

Unavailable

3

BILUX-BULB 12V 35/35W BA20D

44111038000

Unavailable

4

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

5

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

6

CABLE FOR HEAD LIGHT 2005

54811001050

Unavailable

7

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

8

TAILLIGHT SUPPORT

83008013050

Unavailable

9

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

10

HH collar screw M6x12 TX30

0025060126

Unavailable

11

REAR LIGHT EXC-EU 2008

78014040000

Unavailable
