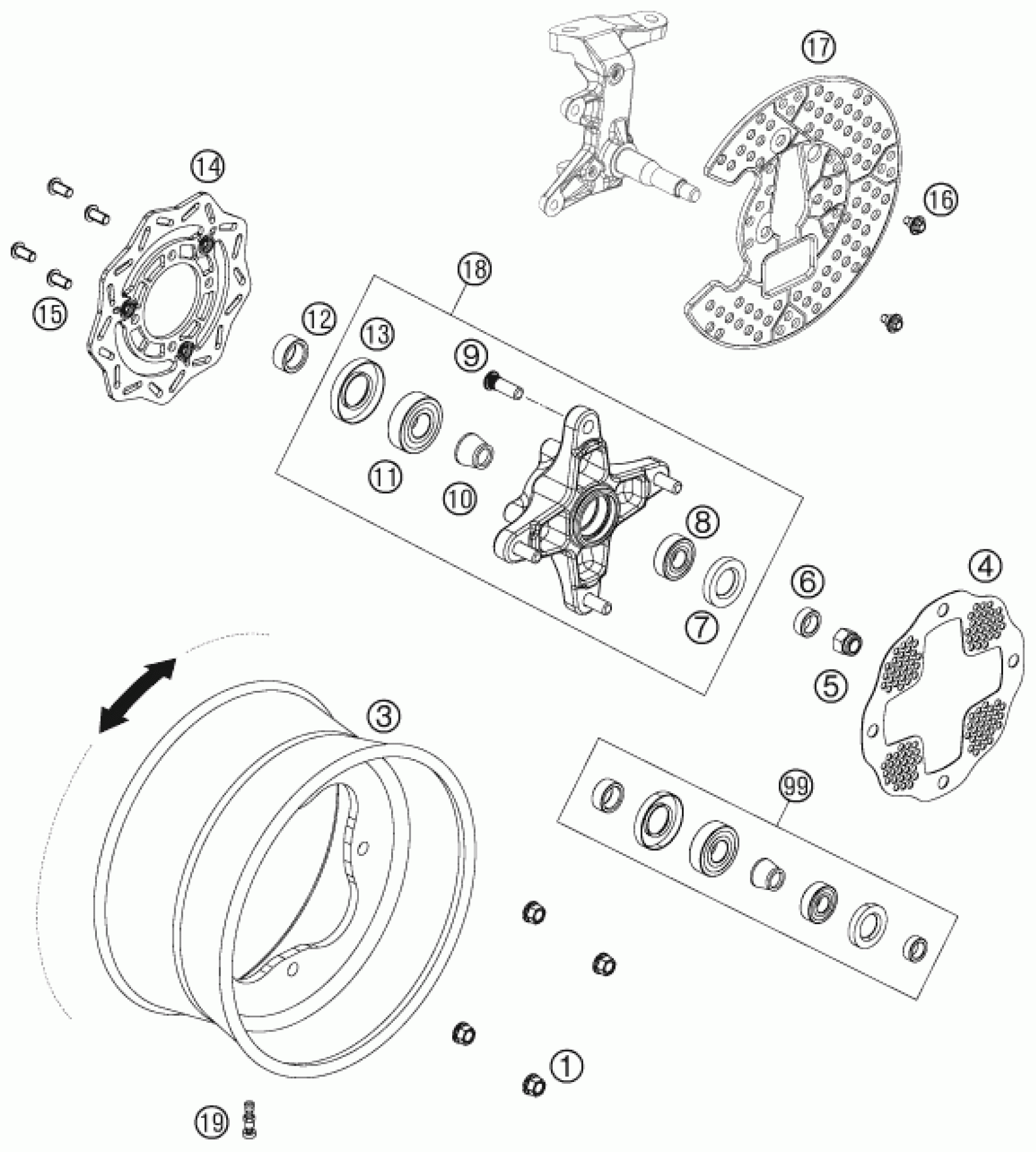

KTM 450 SX ATV 2009 FRONT WHEEL Diagram

#

Description
Price

1

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

3

RIM FRONT 10X5-5

83009070000

Unavailable

4

OUTER BRAKE DISK PROTECTOR

83009066000

Unavailable

5

SELF LOCKING NUT DIN0985-M12

0985120003

Unavailable

6

SPACER BUSHING

83009013000

Unavailable

7

SHAFT SEAL RING BSL 22X40X7NBR

0760224070

Unavailable

8

BALL BEARING 6202-2RSH/C3

0625062028

Unavailable

9

WHEELBOLT

83009016000

Unavailable

10

BEARING SPACER BUSHING

83009014000

Unavailable

11

BALL BEARING 6204-2RSH/C3

0625062047

Unavailable

12

SPACER BUSHING

83009015000

Unavailable

13

SHAFT SEAL RING BSL 28X52X7NBR

0760285270

Unavailable

14

BRAKE DISK

83009060000

Unavailable

15

FLAT HEAD SCREW ISO7380 M8X16

0738080166S

Unavailable

16

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

17

BRAKE DISK PROTECTOR

83009065100

Unavailable

18

FRONT WHEEL HUB CPL. SP 2008

83009010044

Unavailable

19

VALVE

83009076000

Unavailable

99

FRONT WHEEL REP. KIT ATV

00050010007

Unavailable
