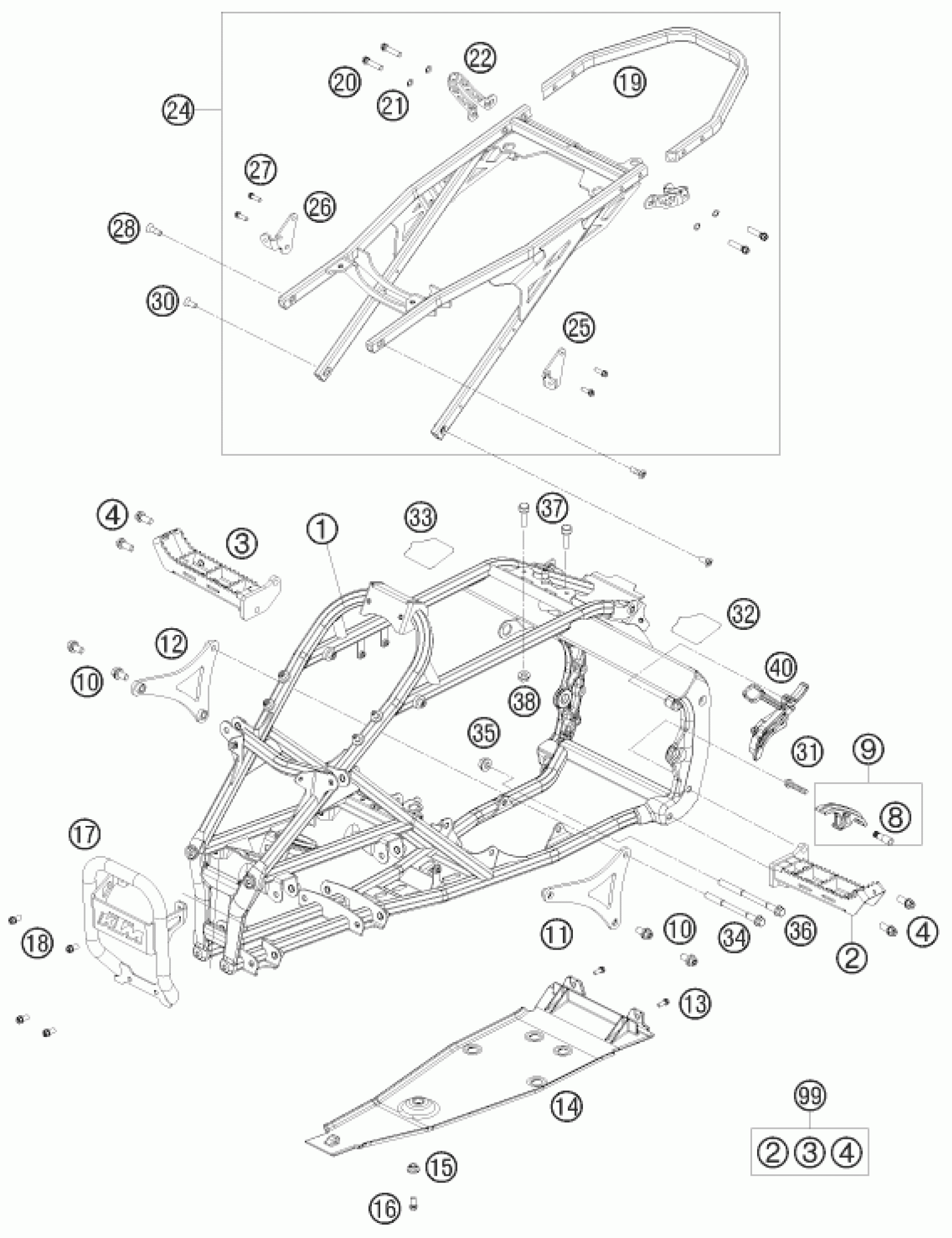

KTM 450 SX ATV 2009 FRAME Diagram

#

Description
Price

36

ENGINE BRAC.SCREW M10X146 10.9

83503014000

Unavailable

37

PARABOLIC BUMPER TANKBRACKET

83503034000

Unavailable

38

STOP NUT M6 DIN6926 A2-70

0926060000

Unavailable

1

FRAME ATV-SX ''NB09'' 20

8350300100030

Unavailable

2

FOOTREST L/S

83003040300

Unavailable

3

FOOTREST R/S

83003041300

Unavailable

4

AH collar screw M10x24 ISA45

0035100249

Unavailable

8

BUSHING

83003053051

Unavailable

9

CHAIN SLIDING PIECE BELOW

83003053000

Unavailable

10

COLLAR SCREW M10X18 TX

0023100183

Unavailable

11

ENGINE SUPPORT L/S CPL. SX

83503013044

Unavailable

12

ENGINE SUPPORT R/S CPL. SX

83503113044

Unavailable

13

HH collar screw M6x16 TX30

0025060166

Unavailable

14

FRAME PROTECTION BELOW

83003090000

Unavailable

16

HH collar screw M8x20

0025080206

Unavailable

17

FRONT BUMPER BLACK

8300300300030

Unavailable

18

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

19

SUB FRAME-BRACKET 07

83003002010

Unavailable

20

HH COLLAR SCREW M8X35 TX40

0025080356S

Unavailable

21

LOCK WASHER 8MM

36003014000

Unavailable

22

FENDER MOUNTING

83003002030

Unavailable

24

SUB FRAME CPL. 08

83003002044

Unavailable

25

HEELGUARD FIXING L/S

83003002040

Unavailable

26

HEELGUARD FIXING R/S

83003002041

Unavailable

27

HH collar screw M6x20 TX30

0025060206

Unavailable

28

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

30

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

31

HH collar screw M8x45 TX40

0025080456

Unavailable

15

BEARING BUSHING INSIDE 03

60007061000

Unavailable

32

PROTECT.FILM F. FRAME L/S 2008

83003099000

Unavailable

33

PROTECT.FILM F. FRAME R/S 2008

83003099100

Unavailable

34

Enginebrac. screw M10X123 WS=1

59003013000

Unavailable

35

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

40

CHAIN GUARD ATV SX

83503096000

Unavailable

99

FOOTPEG KIT ATV

00050010002

Unavailable
