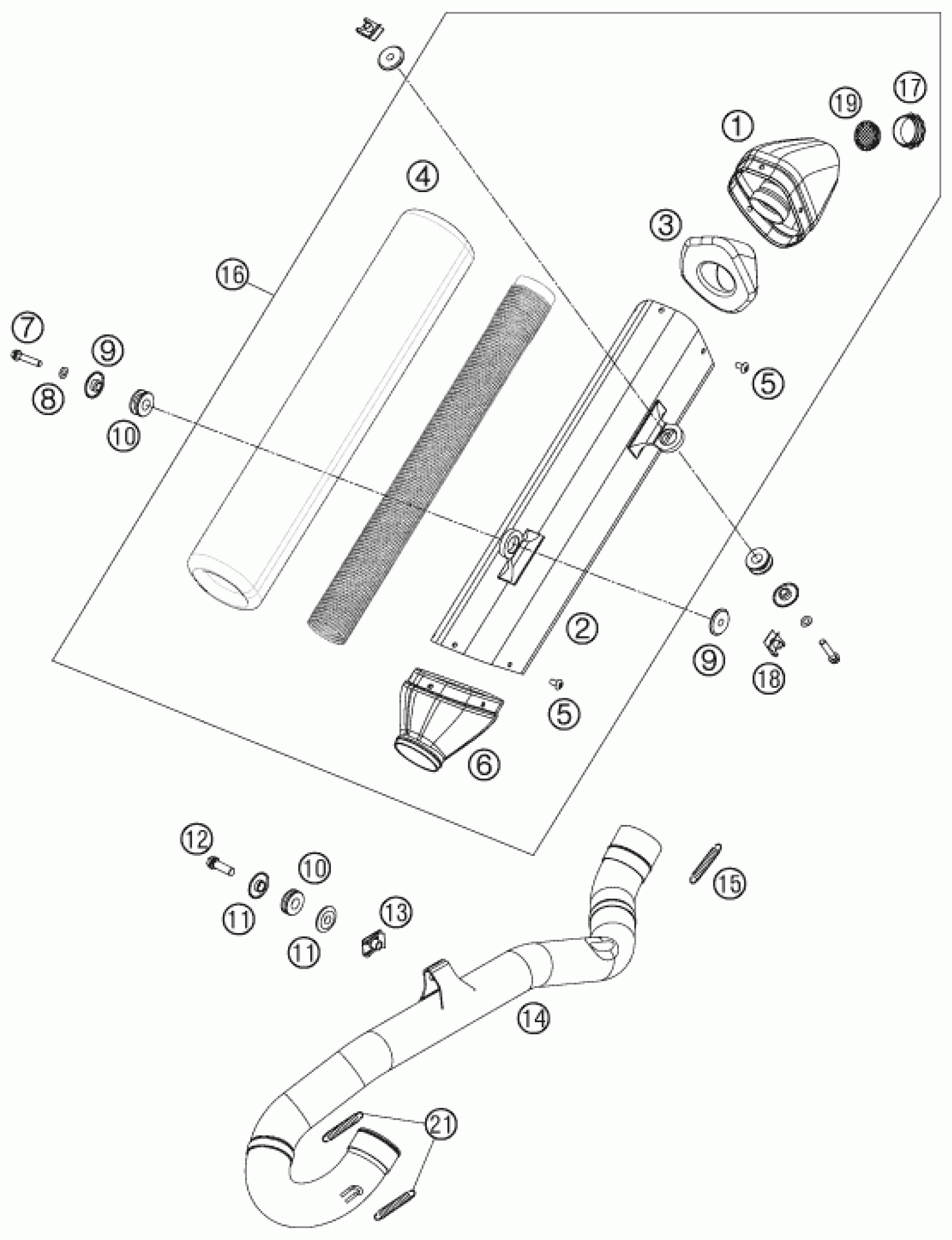

KTM 450 SX ATV 2009 EXHAUST SYSTEM Diagram

#

Description
Price

1

ENDCAP THROTT.+SPARKY ATV ´09

83505079060

Unavailable

2

SILENCER HOUSING SX ATV

83505079056

Unavailable

4

STUFFING YARN 495 GRAM

77005078495

Unavailable

5

SCREW TORX M5X10 05

58605083010

Unavailable

6

SIL. CONNECT. CAP CPL. ATV

83505079050

Unavailable

7

HH collar screw M6x30 TX30

0025060306

Unavailable

8

spring washer DIN 137 B - 6

0137060003

Unavailable

9

BUSHING 7,5X12X28X7,8 '96

54605069000

Unavailable

10

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

11

BUSHING FOR EXHAUST SUPPORT 03

59405069000

Unavailable

12

HH collar screw M8x25

0025080256

Unavailable

13

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

19

THROTTLE ELEMENT CPL. EXC 07

77005081065

Unavailable

3

STUFFING YARN 65 GRAM

77005078065

Unavailable

14

EXHAUST MANIFOLD R/S CPL.

83505007000

Unavailable

15

RETURN SPRING L=38 MM

54309036000

Unavailable

16

SILENCER CPL. R/S ATV SX 2009

83505079000

Unavailable

17

SIL. ELEMENT EXC-F 07

77005081055

Unavailable

18

clip nut M6

54603048100

Unavailable

21

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable
