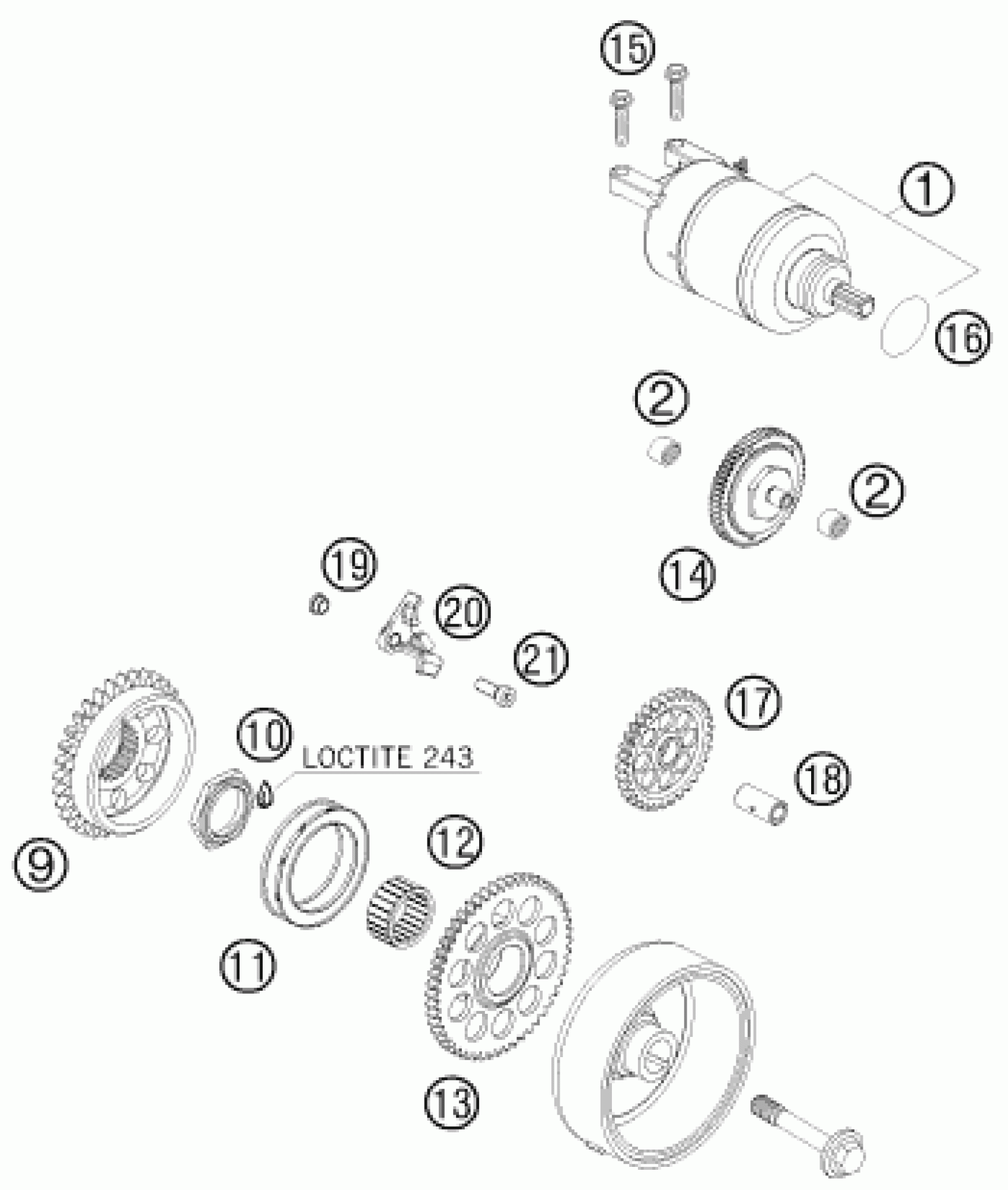

KTM 450 SX ATV 2009 ELECTRIC STARTER Diagram

#

Description
Price

2

NEEDLE BUSH HK 0810 DIN 618

0618081210

Unavailable

9

DRIVE WHEEL AGZR KS Z=32

77330055160

Unavailable

10

COLLAR NUT M27X1

77330029000

Unavailable

11

FREE WHEEL CLUTCH MECHANISM 97

H25015301

Unavailable

12

NEEDLE BEAR. K25X32X16

0405253216

Unavailable

13

STARTING GEAR Z=52

77340015100

Unavailable

14

TORQUE LIMITER CPL.

77340016100

Unavailable

15

HH collar screw M6x25 TX30

0025060256

Unavailable

16

O-RING 25,00X3,00 NBR 70

0770250030

Unavailable

17

INTERMEDIATE STARTING GEAR

77340022100

Unavailable

18

BEARING BOLT

77340028000

Unavailable

19

SUPPORTING SLEEVE

83540097050

Unavailable

20

STOP DISK FOR STARTER WHEEL

83540097000

Unavailable

21

AH SCREW DIN6912-M 6X16

0984060163

Unavailable

1

E-STARTER ENGINE CPL. 07

77340001000

Unavailable
