CYLINDER HEAD

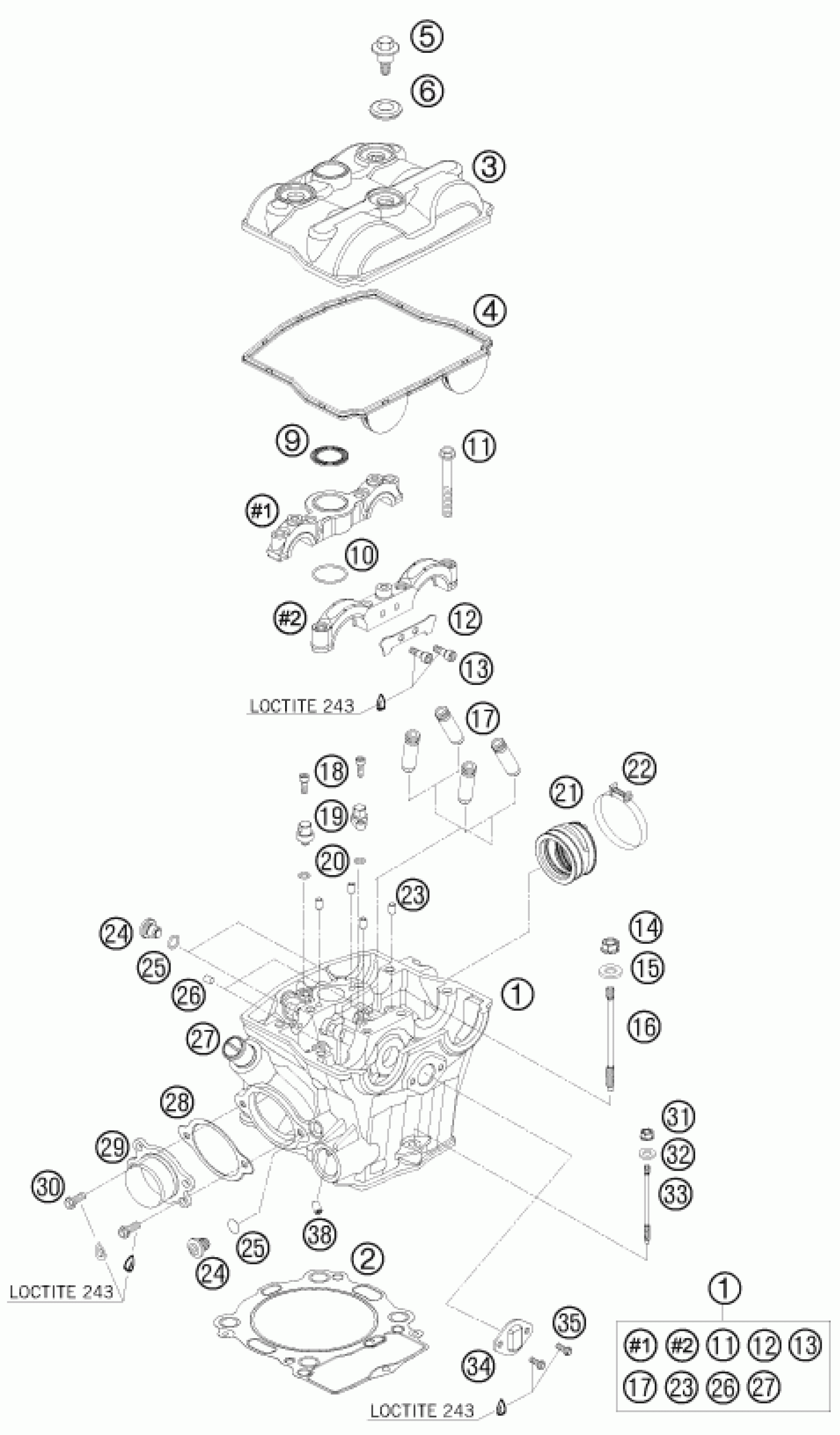

KTM 450 SX ATV 2009 CYLINDER HEAD Diagram
#
35
HH collar screw M5x10 TX30
0025050106
Unavailable
38
THROTTLE M6X10X0,6
77338029012
Unavailable
16
STUD SCREW M10
77330044100
Unavailable
17
VALVE GUIDE
77336025100
Unavailable
18
AH SCREW DIN0912-M 4X12
0912040123
Unavailable
19
OIL JET
77338046000
Unavailable
20
O-ring 6,00x1,50 NBR 70
0770060015
Unavailable
21
INTAKE BOOT 835 SX
83536044000
Unavailable
22
HOSE CLAMP GEMI 62 MM 03
60036047100
Unavailable
23
CYLINDER ROLLER ZRO 5X8
0402050080
Unavailable
24
SCREW PLUG
77336056095
Unavailable
25
O-RING 9X1,5 NBR
0770090015
Unavailable
26
PLUG 00
59030196000
Unavailable
27
SCREW IN NOZZLE M20X1,5
58030010200
Unavailable
28
GASKET EXHAUST FLANGE
77336041000
Unavailable
29
EXHAUST FLANGE CPL. SX-F 08
77336139000
Unavailable
30
HH collar screw M6x20 TX30
0025060206
Unavailable
31
COLLAR NUT M6X1 SW8
77336088106
Unavailable
32
WASHER DIN0125-A 6,4
0125060003
Unavailable
33
STUD SCREW M6
77330043000
Unavailable
34
RETAINING PLATE
77336075050
Unavailable
1
CYLINDER HEAD CPL.
77336020144
Unavailable
2
CYL. HEAD GASKET S=0,5 06
77330036000
Unavailable
3
VALVE COVER
77336052100
Unavailable
4
VALVE COVER GASKET
77336053000
Unavailable
5
VALVE COVER SCREW
77336054150
Unavailable
6
RUBBER GASKET FOR SCREW 05
77036054050
Unavailable
9
GASKET SPARK-PLUG SHAFT
77336053050
Unavailable
10
O-RING 25,00X1,50 NBR 70
0770250015
Unavailable
11
SCRW M7-1,0X38
77330067138
Unavailable
12
BUSHING HOLDER
77336020040
Unavailable
13
AH SCREW DIN0912-M 5X10
0912050103
Unavailable
14
COLLAR NUT M10X1,25 SW13
77336088210
Unavailable
15
washer 19x10.5x2.5
77336089010
Unavailable
