CRANKSHAFT, PISTON

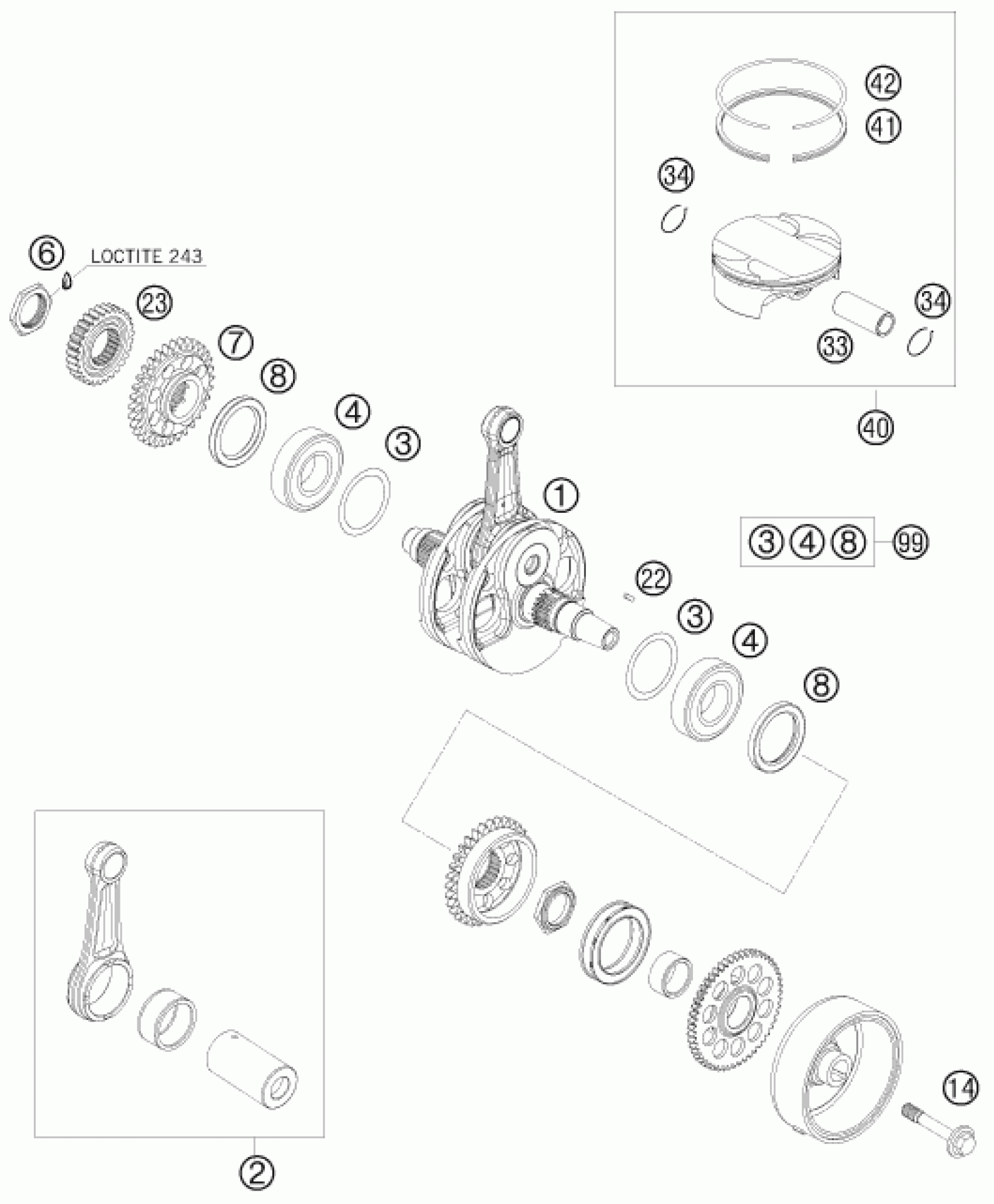

KTM 450 SX ATV 2009 CRANKSHAFT, PISTON Diagram
#
Description
Price
33
PISTON PIN
77330033000
Unavailable
34
CIRCLIP
77330074000
Unavailable
40
PISTON 450
77330007300 I
Unavailable
40
PISTON 450
77330007300 II
Unavailable
14
FLYWHEEL SCREW
77339010100
Unavailable
22
WOODRUFF KEY DIN6888-3X3,7
0888030037
Unavailable
23
PRIMARY GEAR
83532023026
Unavailable
41
SCRAPER RING 450
77330032200
Unavailable
42
COMPRESSIONRING D=97 2007
77330030100
Unavailable
1
CRANKSHAFT CPL.
83530018000
Unavailable
2
CONNECTING ROD REPAIR SET
77330015144
Unavailable
3
THRUST WASHER 30X42X0,1
0988304201
Unavailable
3
THRUST WASHER 30X42X0,2
0988304202
Unavailable
3
THRUST WASHER 30X42X0,3
0988304203
Unavailable
4
CYL. ROLLER BEARING NJ206 ECP
77330082000
Unavailable
6
COLLAR NUT M27X1
77330029000
Unavailable
7
DRIVE WHEEL
83530055010
Unavailable
8
SHAFT SEAL RING A40x55x6 VITON
0760405560
Unavailable
99
CRANKSHAFT REP. KIT 450 SX-F
00050002304
Unavailable
