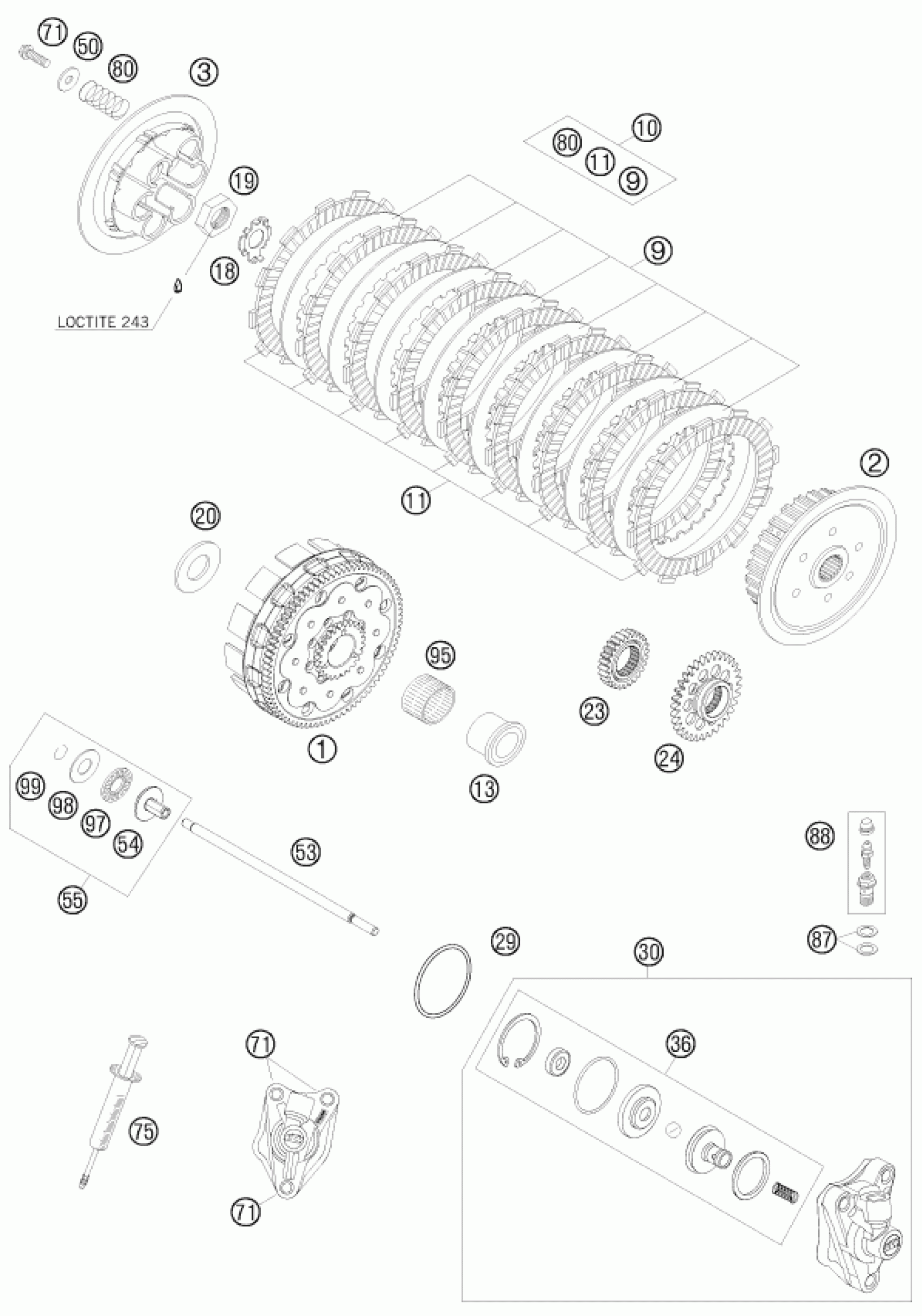

KTM 450 SX ATV 2009 CLUTCH Diagram

#

Description
Price

9

INTERMEDI. DISC STEEL

77332010000

Unavailable

11

LINING DISC 2,7MM

77332011000

Unavailable

13

INNER RING

77332015100

Unavailable

18

RETAINING PLATE

77332018000

Unavailable

19

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

Unavailable

20

WASHER 21,7X38X4 07

77332017100

Unavailable

23

PRIMARY GEAR

83532023026

Unavailable

24

DRIVE WHEEL

83530055010

Unavailable

29

O-RING 38,00X2,00 NBR 70 SH

0770380020

Unavailable

30

OUTPUT CYLINDER CPL.

77332061044

Unavailable

36

PISTON CPL.

77332066000

Unavailable

50

WASHER 6,2X18X2

50232050000

Unavailable

53

PUSH ROD 07

77332054100

Unavailable

54

PRESSURE PIECE

77332057100

Unavailable

55

PRESSURE PIECE CPL.

77332057144

Unavailable

71

HH collar screw M6x25 TX30

0025060256

Unavailable

75

VENT INJEKTION HYDR. CLUTCH

50329050000

Unavailable

80

CLUTCH SPRING

77332005000

Unavailable

87

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

88

BLEEDER SCREW CPL. 05

62513020000

Unavailable

95

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

Unavailable

97

AXIAL NEEDLE BEARING AXK 1226

54637097200

Unavailable

98

AXIAL WASHER AS1226 12X26X1

54637098200

Unavailable

99

CIRCLIP DIN7993-RW12

0993012000

Unavailable

1

OUTER CLUTCH CPL. 08

83532001044

Unavailable

2

INNER CLUTCH HUB 08

77332002200

Unavailable

3

PRESSURE PLATE

77332003000

Unavailable

10

CLUTCH-KIT 450/505 SX-F 07-13

77332011010

Unavailable
