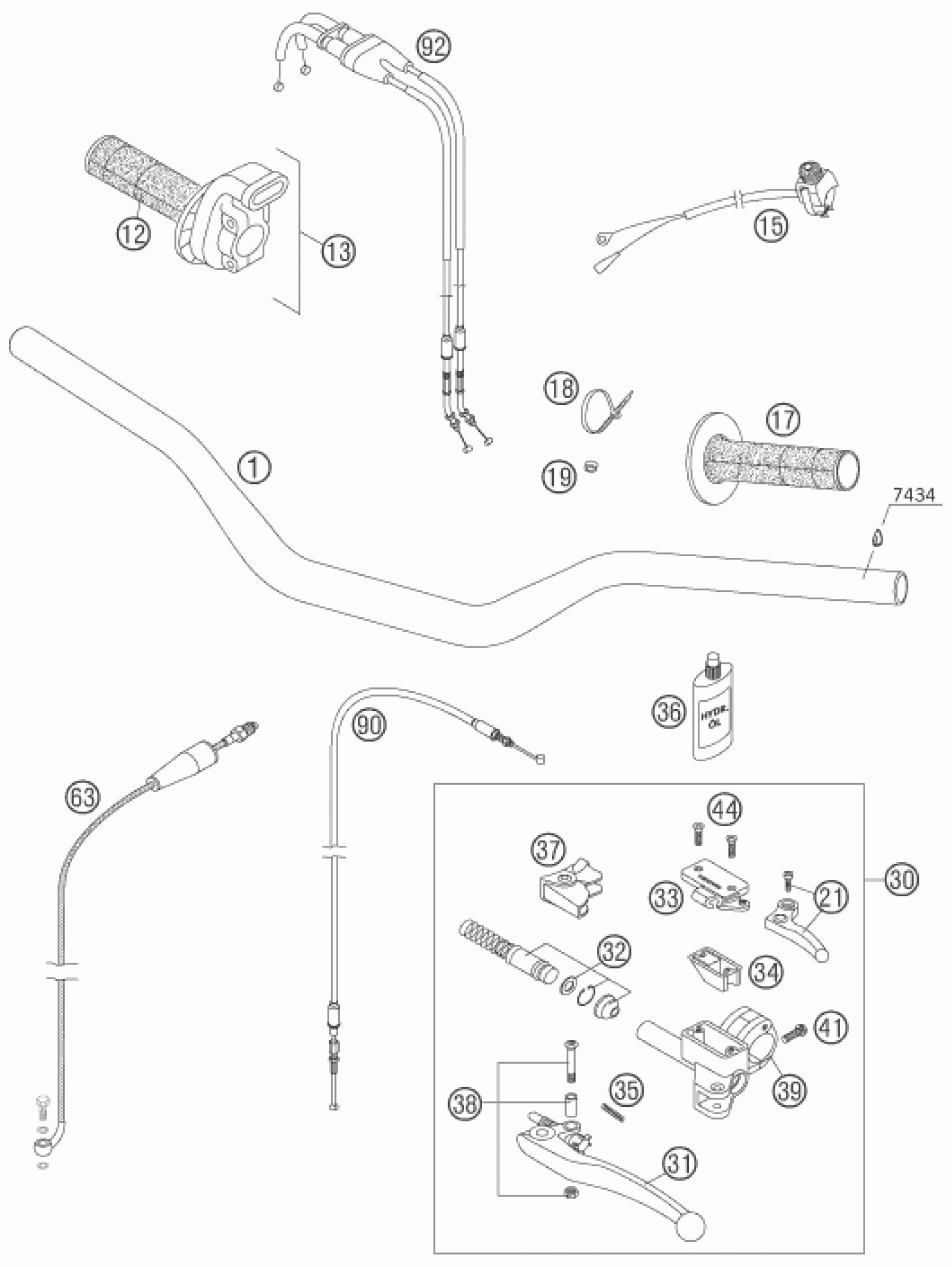

KTM 450 SX 2006 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM HIGH 06

5480200110017

Unavailable

12

TWIST GRIP COVER RENTHAL 04

54802013000

Unavailable

13

THROTTLE GRIP CPL. RAC. 04

59402010000

Unavailable

17

FIXED GRIP RENTHAL 04

54802039000

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

18

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

19

SPACER BUSHING 6X10X5

50301089000

Unavailable

21

LEVER CPL. RACING 2000

59002047000

Unavailable

31

CLUTCH LEVER SHORT CPL. 2003

54602031000

Unavailable

15

Kill switch

50311089200

Unavailable

30

MASTER CYLINDER CPL. RACING 04

59002030200

Unavailable

31

CLUTCH LEVER LONG CPL. 2003

59002031000

Unavailable

32

REP.KIT PISTON 9,0MM RAC. 2004

59002032100

Unavailable

33

COVER HYD.CLUTCH RACING 2000

59002033000

Unavailable

34

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

35

SPRING FOR CLUTCH LEVER 03

59002035000

Unavailable

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

38

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

39

CLAMP WITH PIN 2000

50302030150

Unavailable

41

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

63

CLUTCH PIPE RACING 2003

59032063100

Unavailable

90

DECOMPR. CABLE RACING 2000

59002094000

Unavailable

92

THR.CABLE''OPEN-CLOSE''KEIHIN

59002091300

Unavailable
